Always turn off the power before you start working. Use a lockout/tagout device to keep the power off. This helps keep you safe.
Wear safety gear like insulated gloves and safety glasses. This protects you from shocks and burns.
Use a multimeter to check the voltage before touching wires. Make sure the power is off to avoid accidents.
Pick the right transformer for your HVAC system. Match the voltage, capacity, and mounting style for best results.
Follow each step in the replacement process carefully. If you are not sure, ask a professional for help. This keeps you safe and makes sure it works right.
It is important to be safe when you change a transformer. You need to follow every step to keep yourself and your house safe.
Turn off the power at the breaker before you start. This keeps you safe from getting shocked. Use a lockout/tagout device so no one turns the power back on. Lockout/tagout steps help stop accidents and make things safer.
Tip: Do not trust the power is off just by flipping the switch. Always check again to be sure.
There are rules for electrical work like NFPA 70B. These rules became required in 2023. Here are some important points:
Key Point | Description |
|---|---|
Formal Standard | NFPA 70B is now a rule for electrical safety. |
Electrical Maintenance Programs | You need a plan for regular checks and repairs. |
Scope | These rules are for big buildings like schools and factories. |
Wear protective gear before you start changing the transformer. Put on insulated gloves, safety glasses, and rubber-soled shoes. These things help protect you from burns and shocks. Stay away from the transformer and use insulated tools. Always do what is safest when you change a transformer.
Wear insulated gloves and safety glasses.
Use shoes with rubber soles.
Stay away from the transformer.
Use insulated tools for every transformer job.
Pearl Electric makes Pearl Electric transformers that are safe and reliable. Their transformers meet strict rules to help keep you safe when you change them.
Check the voltage with a multimeter before you touch any wires. Make sure there is no voltage before you start working. The main voltage should be 120V or 240V. The other voltage should be 24V AC. If you see any voltage, do not keep working.
Voltage Type | Recommended Value |
|---|---|
Primary Voltage | 120V or 240V |
Secondary Voltage | 24V AC |
Always check for voltage before you change the transformer.
If the voltage is wrong, the transformer may be broken.
Never skip this step when you change a transformer.
You can keep your furnace safe if you follow these steps. You protect yourself and your house when you pay attention to safety.
You need the right tools to change an hvac transformer safely. Get all your tools ready before you begin. This makes your work faster and safer. Here is what you need:
Screwdrivers (flathead and Phillips)
Wire strippers and cutters
Multimeter for voltage checks
Insulated pliers
Electrical tape
Mounting screws or hardware
Safety gear (insulated gloves, safety glasses, rubber-soled shoes)
Tip: Always use a multimeter to check for voltage before touching any wires during hvac transformer replacement.
These tools are used for most hvac jobs. They help you take out the old transformer and put in the new one. Safety gear protects you from shocks and burns. Good tools make changing an hvac transformer easier and safer.
Picking the right transformer is very important for hvac transformer replacement. You need to match the new transformer to your system. Check the voltage, capacity, and mounting style. Pearl Electric’s high-voltage-transformer, dry-type-transformer, and pad-mounted-transformer are good choices. These products work well for many hvac systems.
Here is a table to show what to check when picking a transformer:
Specification | Details |
|---|---|
Input Voltage | Must match the system's requirement (120V or 240V) |
Output Voltage | Should be 24V AC, standard for HVAC systems |
VA Rating (Capacity) | Typically 40VA; ensure it can handle the load of connected devices |
Mounting Style | Match the existing transformer's mounting type (plate, foot, or board) |
Wiring Configuration | Choose between single primary or multi-tap for flexibility |
Knowing about hvac transformers helps you avoid mistakes. You should know what kind of transformer your hvac system uses. Here are the most common types:

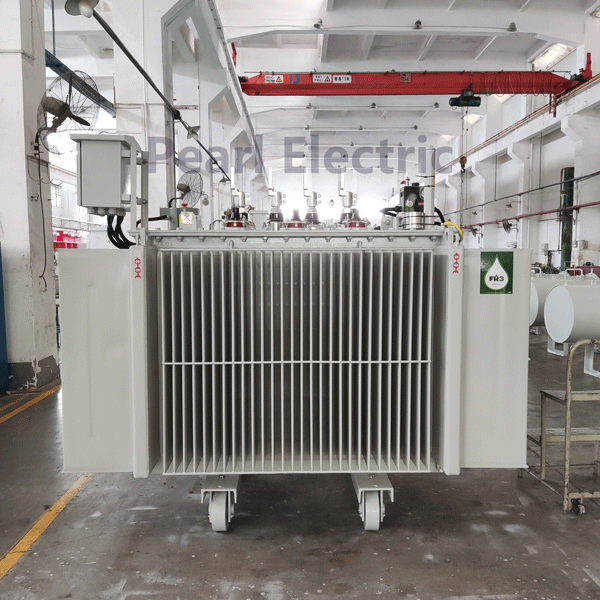

Transformer Type | Description |
|---|---|
Dry Type Transformer | Used for small electric furnaces; compact design and air-cooled, ideal for safety standards. |
Oil Immersed Transformer | Suitable for large electric furnaces; excellent heat resistance and stable operation under load. |
Isolation Transformer | Provides electrical isolation for enhanced safety in high-standard environments. |
Pearl Electric’s dry-type-transformer works well for most home hvac systems. If your system is bigger, you may need a high-voltage-transformer or a pad-mounted-transformer. Always check the details before you buy. This step is important for safe and good hvac transformer replacement.
Note: Knowing about hvac transformers and picking the right one helps your hvac system work safely and smoothly.
Changing a furnace transformer takes time and care. You need to follow each step so your furnace works well. This guide shows you how to find, take out, put in, wire, and secure a transformer on a furnace.
First, you must find the transformer inside your furnace. Look inside the cabinet with a flashlight. Most transformers are close to the control board or blower motor. You will see a small metal box with wires.
Open the panel on your furnace.
Look for a box marked “transformer.”
Check near the control board or blower.
Use your multimeter to make sure it is the right part.
Tip: Always check the label on the transformer. Make sure it matches your hvac system’s needs.
Next, you need to take out the old transformer. Follow these steps to stay safe:
Turn off the power at the breaker.
Tell everyone not to turn the breaker back on.
Open the furnace cover to reach the transformer.
Use wire cutters to cut the four wires.
Remove the screws with a screwdriver or wrench.
Take out the old transformer.
Option | Time Required |
|---|---|
DIY | 1–2 hours |
Read the instructions from the manufacturer before you start. This helps you avoid mistakes when you change the transformer.
Now, put the new transformer in the same spot. Use screws to hold it in place. Make sure it sits flat and does not move.
Match the mounting style to the old transformer.
Use the right screws or hardware.
Check that the transformer fits tightly.
Note: If you are not sure about any step, call a professional. This keeps your furnace safe and helps you avoid problems.
Connect the wires to the new transformer. Use the old wires as a guide. Attach wires with wire nuts. Follow hvac wiring rules.
Single-phase transformers use a phase wire and a neutral wire.
Connect the common neutral wire on both sides.
Autotransformers have a lead wire on each side.
Big units use two-winding series connections.
Three-phase transformers use three or four wires. Delta connections handle uneven loads. Star connections work for long distances.
Read the instructions before you finish wiring. Double-check each wire. Use your multimeter to test for voltage after you finish.
Common Mistake | Impact |
|---|---|
Miscalculating load requirements | Lower efficiency, higher costs, early failure. |
Choosing oversized transformers | Higher bills, more energy loss, less efficiency. |
Overlooking regular maintenance | Lower load, shorter life for the transformer. |
Using incorrect calculation methods | Bad sizing, problems with how it works. |
Tip: Always check the load needs for your transformer. This helps you avoid mistakes when you change the transformer.
Secure the transformer and finish the job. Put the furnace door or cover back on. Make sure everything is in place. Test the transformer with a voltage tester. Turn the breaker back on. Watch your furnace as it starts.
Put all covers and panels back.
Test the transformer for the right voltage.
Listen for strange sounds from the furnace.
Check if the hvac system works well.
Check your furnace every month for leaks and odd noises. Clean the cooling fins and vents often. This helps your transformer last longer.
When you throw away the old transformer, remember it may have dangerous stuff like PCBs or mineral oil. PCBs can pollute. Mineral oil can catch fire and break down with water. Follow local rules to keep the environment safe.
Option | Part Cost | Tools/Labor | Total Cost | Time Required | Risk |
|---|---|---|---|---|---|
DIY | $20–$40 | $0–$80 | $50–$120 | 1–2 hours | Medium |
Pro | $20–$40 | $150–$300 | $200–$350 | 30–60 minutes | Low |
Warranty Implication | Description |
|---|---|
Improper Installation | DIY or unlicensed work can void the warranty |
Non-Goodman Parts Used | Using other parts can mean denied claims |
Real Examples | Homeowner installed wrong TXV: claim denied because of third-party part and DIY install |
⚠️ If you are not sure about any step, ask a professional. This keeps your furnace safe and protects your warranty.
When you finish changing your furnace transformer, you need to test it. This step helps you know your furnace is safe. It also makes sure your hvac system works well.
Do some safety checks before you turn the power back on. Look at the furnace transformer and see if wires are tight. Check for broken or loose parts. Make sure the space around the furnace is clean and dry. Good airflow keeps your furnace safe. Use a lockout/tagout device so no one turns on the power by mistake.
Turn off power before you start working.
Use lockout/tagout devices to stay safe.
Work in a space with good airflow.
Look at the furnace transformer for damage.
Check cooling systems and make sure connections are tight.
Tighten any loose terminals you find.
Make sure the furnace transformer is in a dry place.
After you finish these checks, turn the power back on at the breaker. Watch for sparks or strange noises from the furnace.
Now test your furnace transformer. Set your multimeter to AC voltage mode. Check the main voltage at the furnace transformer. It should be 120V or 240V. Then check the other voltage. Most hvac systems use 24V AC for the furnace transformer.
If you do not see the right voltage, switch your multimeter to resistance mode. Test the winding resistance on the furnace transformer. If you see infinite or zero resistance, there may be a problem.
Test for continuity between the windings and ground. This helps you find faults in the furnace transformer.
Tip: Always use a multimeter to check your furnace transformer after you change it. This helps you find problems early.
After you test the furnace transformer, watch your furnace as it starts. Listen for normal sounds. Feel for warm air coming from the vents. Check the control board and blower motor. Make sure the hvac system turns on and off the right way.
Look for these signs to know your furnace transformer replacement worked:
Checkpoint | What to Look For |
|---|---|
Furnace starts | Blower and control board work |
Warm air | Air comes out of vents |
No strange sounds | Furnace runs quietly |
Correct voltage | Multimeter shows right numbers |
Safe operation | No sparks or burning smells |
If you see any problems, turn off the furnace and check your steps. You may need to call a professional if you cannot fix the problem.
Testing and final checks help keep your furnace safe. They also help your hvac system work well after you change the furnace transformer.
After you finish replacing the transformer, problems can happen if something goes wrong. Many furnace transformer problems come from mistakes during installation. Overheating can happen if you use the wrong transformer. If you add new parts, the transformer may not have enough VA rating. A short circuit in the secondary circuit can cause overload or failure. Here are some mistakes you should avoid:
Using a transformer with the wrong voltage
Picking a transformer with a low VA rating
Not checking for short circuits before finishing the repair
If your furnace does not work after replacement, check these things first. Furnace transformer failure often happens when you skip steps or use the wrong part. Always check your work to stop system failures.
You can find furnace transformer problems early if you know what to look for. Some signs of a bad transformer are circuit breaker tripping and loud humming or vibration. If your furnace does not make heat, it could mean the transformer failed. Watch for these warning signs:
Circuit breaker trips a lot
Furnace makes loud humming or vibration
No heat comes from the furnace
Thermostat screen is blank
Low-voltage fuse is blown
Burnt smell or scorch marks near the transformer
These signs mean you need a replacement or more repair. Ignoring these signs can lead to bigger problems and even a blown furnace transformer, which can shut down your system or cause a fire.
Sometimes, furnace transformer problems need a professional to fix them. If your furnace will not turn on or the thermostat screen is blank, call a professional hvac technician. Other signs are blown fuses, strong vibrations, or a burnt smell. A professional can find hidden mistakes and fix them safely. Here are times when you should call a professional:
Furnace does not work after replacement
Furnace transformer failure with damage you can see
Strong vibrations or loud humming
Burnt smell or scorch marks you can see
You feel unsure about any repair step
A professional can stop system failures and make sure your furnace works safely. Pearl Electric transformers are reliable, but even the best products need good installation and maintenance. If you ever feel unsure, a professional can help you avoid mistakes and keep your home safe.
Note: Trusted support and quality products from Pearl Electric help lower furnace transformer problems. Always pick trusted brands and call a professional when you need help.
You can change a furnace transformer if you follow each step. Always turn off the furnace before you begin. Take out the old transformer and look at every wire. Make sure each wire goes to the right spot on the new transformer. Tighten all screws and make sure every connection is secure. After you finish, check your work again:
Take the old transformer out of the furnace.
Remove the transformer from inside the furnace.
Look for wires that are loose or broken.
Match each wire to the right terminal on the transformer.
Tighten all screws and connections on the furnace.
Check all wires to make sure they are tight and correct.
Turn the power back on and test the furnace.
Use a multimeter to check the voltage on the furnace.
Always put safety first when you change a furnace transformer. Use good products like Pearl Electric for every job. If you are not sure about any step, ask a professional for help.
You might notice there is no heat in your house. Sometimes, the thermostat screen is blank or the breaker trips. If you hear a buzzing sound or smell something burning, it could be time to replace it. Always use a multimeter to check before you start replacing anything.
You will need screwdrivers and wire cutters for this job. A multimeter helps you check the voltage. Safety gear keeps you safe while you work. Get all your tools ready before you begin. Always wear insulated gloves when you replace a transformer.
You can do it if you follow all safety rules. Make sure you turn off the power before you start. If you are not sure what to do, call a professional for help. Always read the instructions before you begin the replacement.
Most people finish in one or two hours. If you have done it before, you might finish faster. A professional can do it in less than an hour. Always test your furnace when you are done.
If you use the wrong transformer, your furnace can get damaged. You might notice less heat or blown fuses. Always check the voltage and capacity before you start. Using the wrong transformer can also make your warranty not work.
