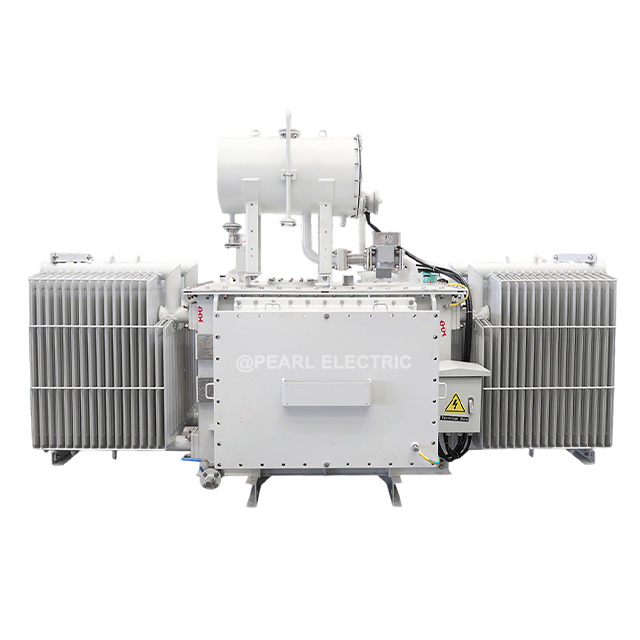

Maximum Power Rating	Up to 2500kVA
Primary Voltage	Up to 220kV
Teamperature Rise	60-65℃
Trasnformer Core	High quality grain-oriented cold rolled siliconsteel of high magnetic conductivity
Cooling	ONAN ONAF OFWF
Insulation Level	11/12/75/28kV、22/24/125/50kV、33/36/170/70kV
Vector Group	Dyn11，Yyn0 or customer specified           Reference standards for design, manufacturingand test: IEC 60076

⦁ Constructed with premium grain-oriented cold-rolled silicon steel for high permeability
⦁ 45° full-step staggered lamination reduces no-load loss by 20% - cutting energy costs effectively

⦁ Precision-engineered with high-purity copper foil/wire and balanced ampere-turns
⦁ 15% reduced stray losses with oil-duct cooling lowering temperature by 10°C - extending service life by 3-5 years
⦁ Overload capacity improved to 150% rated current - minimizing downtime during peak demand

⦁ HV winding is manufactured with high quality copper wire and excellent design structure.
⦁ It improves the distribution of electric field. With lightning impulse analysis, the ability of anti-lighting impulse has been improved - preventing $50k+ lightning damage annually

⦁ Class A oil-impregnated insulation features concentric HV/LV coil alignment with precision-engineered oil-paper barriers
⦁ The minimized oil clearance design enhances dielectric strength while maintaining operating temperature at full load - ensuring 99.9% power availability

Distribution transfomers play a crucial role in power transmission, especially in the Middle East’s harsh desert conditions. With high efficiency and low-loss design,
they ensure stable operation even under 50°C+ temperatures and sandstorms. Corrosion-resistant materials and oil-immersion technology reduce maintenance by 30% in high-dust environments, enhancing grid reliability.

⦁ For desert solar and coastal wind farms, Pearl Electric’s transformers feature specialized designs.
⦁ Dynamic cooling mitigates 15% irradiance fluctuations from sand accumulation, while hermetic sealing extends lifespan by 20% in salt-spray zones.
⦁ With short-circuit resistance and high efficiency, they handle renewable energy’s variable loads.

⦁ Pearl Electric's distribution transfomers provide stable and reliable power support for various manufacturing enterprises.
⦁ Their exceptional overload capacity and low-noise design meet the high-quality power requirements of industrial equipment.
⦁ The transformers' high mechanical strength and durability ensure stable performance under continuous high-load operation, reducing production downtime and enhancing productivity.

⦁ In large-scale infrastructure projects such as subways and high-speed railways, Pearl Electric's transformers ensure stable operation of power systems with their high reliability and safety.
⦁ Their fireproof and moisture-resistant designs cater to the specific requirements of underground and high-humidity environments.
⦁ The transformers' high efficiency and low-loss characteristics reduce operational costs and enhance the operational efficiency of public facilities.
