Careful checking makes sure the pad mounted transformer is safe and works right.
Pick the right pad mounted transformer by understanding your project's power needs. Plan for future growth so you do not overload the system. Think about the environment and where you will put the transformer. This helps it last longer and stay safe in all kinds of weather. Always follow safety rules and choose brands that are certified and trusted. This keeps people and equipment safe. Check and take care of transformers often to find problems early. This helps them last longer. Low voltage transformers are good for homes and businesses. Medium voltage transformers are used in factories and utilities that need more power.
To pick the right pad mounted transformer, you must know what your project needs. Engineers figure out the total electrical load in kVA or MVA. They check if the load is for homes, stores, or factories. Homes usually need smaller transformers. Factories need bigger ones. It is smart to plan for future growth. Many projects pick a transformer with 15–25% more capacity. This helps if you add new machines or expand buildings. Having extra capacity stops overloads and saves money later.
Tip: Always look at the highest load and think about how needs might change.

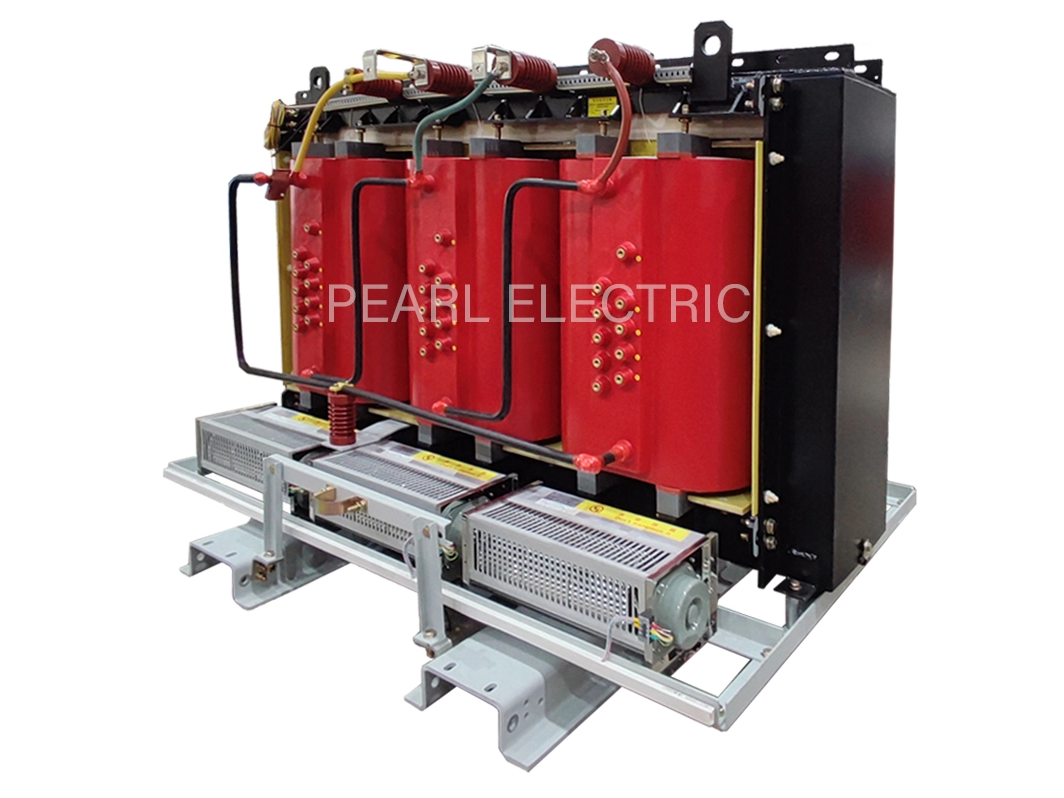

Where you put the pad mounted transformer matters a lot. Hot weather can make it overheat and not last as long. Humid air or salty air near the ocean can cause rust. In places with earthquakes, special designs may be needed. You can pick air-cooled or oil-filled pad-mount transformers. Oil-filled types handle heat and wet air better but need more care. Dry types are good for clean, dry spots. The right size and cooling help the transformer work well and last longer.
Key environmental factors:
Very hot or cold weather
Wet air or water
High places
Salt in the air or dirty air
Earthquakes
Pad mounted transformers must follow strict safety and efficiency rules. In the U.S., these rules come from IEEE and ANSI. The Department of Energy also sets energy rules. Following these rules makes sure the transformer is safe and legal. Not following them can mean fines or having to remove the transformer.
It is important to pick a trusted brand. Pearl Electric is a top company for pad-mount transformers. They make products up to 10MVA and 40.5kV for many uses. Their transformers meet IEC and IEEE standards. Pearl Electric gives good technical help, smart monitoring, and service after you buy. These services help your system work well for a long time.
Note: Good technical help and certified products help keep things safe and working.
A low voltage pad mounted transformer helps send power safely to buildings. These transformers work with voltages from 240 volts up to 690 volts. Most businesses and factories use 240V, 208V, or 480V. These voltages power things like machines and control systems. The transformer lowers the high voltage from the grid to a safer level. This makes sure local devices get the right amount of power. The low-voltage winding inside the transformer matches the power to what is needed.
These transformers are used where safe power is very important. They are found in schools, hospitals, factories, and offices. The padmount design lets you put them outside or underground. This keeps the transformer safe and easy to reach.
Tip: Always check what voltage your equipment needs before picking a transformer. Using the right voltage keeps things safe and working well.
Low voltage pad mounted transformers have many safety features. They have strong cases to keep out dust and stop accidents. Good airflow stops the transformer from getting too hot. Fire-resistant covers give extra safety. Easy-to-open panels help with checks and repairs.
These transformers must follow rules from the National Electrical Code and local laws. Following these rules keeps people safe near the transformer.
Common safety features are:
Strong cases for protection
Airflow systems to keep cool
Fire barriers
Panels that are easy to open for checks
Following safety rules for setup
A transformer with these features gives safe and steady power. Checking it often and installing it right helps it last longer and lowers risks.
A medium voltage pad mounted transformer is very important in power systems. It lowers high voltages from the grid so buildings can use them. Most of these transformers work with voltages from 12.47 kV to 34.5 kV. Some can go up to 44 kV, depending on the brand and rules. The secondary voltage is usually between 240 V and 600 V. This matches what most places need for power.
The table below shows common voltage ratings and standards for these transformers:
Parameter | Value/Range |
|---|---|
Primary Voltage | Up to 35 kV |
Common Nominal Primary Voltages | 12.47 kV, 13.8 kV, 24 kV, 34.5 kV |
Secondary Voltage | Typically 0.48 kV (480 V) or lower |
Tap Changer Range | ±2 × 2.5% |
Standards Referenced | IEEE C57.12.00, IEEE C57.12.90, IEC 60076 |
Typical Use | Utility: 13,800 V to 120/208 or 277/480 V |
Engineers pick a transformer by looking at the voltage range and what the system needs. Choosing the right one helps keep power safe and steady for schools, hospitals, factories, and stores.
Medium voltage pad mounted transformers have special safety features. These help protect people and equipment. The outside case has strong locks and materials that stand up to bad weather. Warning signs help keep out people who should not be there.
Inside, the transformer uses insulated bushings and barriers to keep high-voltage parts apart. Protection systems watch for too much current or voltage and can shut down the transformer if something goes wrong. Temperature sensors check for heat and can turn off the transformer if it gets too hot.
Here is a table with common safety features for these transformers:
Safety Feature | Description |
|---|---|
Secure Enclosures | Strong locks, tough materials, and warning signs to keep people safe. |
Insulated Design | Insulated parts and barriers keep voltage sections apart. |
Fault Protection Systems | Systems that watch for problems and shut down the transformer if needed. |
Safe Operating Mechanisms | Dead-front design hides live parts, circuit breaks are easy to see, and grounding keeps workers safe. |
Smart Monitoring Systems | Real-time checks, alerts, and remote controls help fix problems fast. |
Oil-immersed transformers use special oil to cool and insulate. Pressure relief devices help stop fires. Grounding systems keep voltage steady and protect people from shocks. Smart monitoring systems send alerts if there are faults, too much heat, or oil leaks. These features help the transformer stay safe and work well for medium-voltage power.
Tip: Checking the transformer often and using smart monitoring helps find problems early and keeps it working safely.
Engineers know there are big differences between low voltage and medium voltage pad mounted transformers. These differences change how each transformer works and where it should be used.
Medium voltage pad mounted transformers are built strong to handle higher voltages and more stress. Their cases often have built-in protective devices, like fuses, inside the transformer. Workers use elbow connectors and hot sticks to make safe connections.
Low voltage pad mounted transformers usually work with voltages up to 1,000 volts. These have standard ONAN cooling and safety parts like thermal protectors and fuses on the outside. They are made to be small and safe for lower voltage jobs.
The table below shows the main technical differences:
Feature | Low Voltage Pad Mounted Transformer | Medium Voltage Pad Mounted Transformer |
|---|---|---|
Voltage Range | Up to 1,000 V | 1 kV to 35/66 kV |
Typical Applications | Residential, commercial buildings, small industries | Secondary substations, industrial loads, urban substations |
Size and Ratings | Compact size (1–5 tons), standard ratings | Larger ratings (up to 2,500 kVA and below) |
Cooling Methods | Air or oil cooled (AN/ONAN) | ONAN/ONAF, oil-immersed or dry-type |
Protective Devices | Thermal protectors, fuses | Integrated fuses, on-load tap changers (OLTC) |
Construction Robustness | Standard, compact, safe | More robust for higher voltages |
Primary Connections | Standard connections | Elbow connectors with hot sticks |
Note: Medium voltage pad mounted transformers need stronger safety barriers and better cooling to handle bigger electrical loads.
Low voltage pad mounted transformers help send power to big buildings, shopping centers, factories, and other places that need lots of electricity. These transformers lower the high voltage from the power company to a level that is safe for lights and machines. In businesses and factories, they often support three-phase systems, which give power to both single-phase and three-phase equipment. Common voltages are 120, 240, 208, and 480 volts. Some transformers also give power to electric car chargers and renewable energy systems like wind and solar.
Medium voltage pad mounted transformers are used for different jobs. They give power to places where big machines need medium voltage. These transformers are often used for street lights, bringing power to country areas, and sending electricity to towns. Engineers pick medium voltage transformers for secondary substations and city substations, where it is important to deliver power well before lowering it for homes and businesses.
Common uses for medium voltage pad mounted transformers:
Powering big machines in factories
Running street lights
Sending power to rural areas
Feeding power networks in towns and cities
Tip: Picking between low voltage and medium voltage pad mounted transformers depends on how big the place is, what kind of power is needed, and what safety features are required.
Pad mounted transformers are very important for utilities and factories. Utility companies use them to lower voltage in power networks. This helps send electricity safely to homes, factories, and public places. Factories use pad mounted transformers to run big machines and handle lots of power. These transformers can handle heavy use and help things work well.
Engineers pick pad mounted transformers for underground power in cities and industrial parks. The locked cases keep workers and the public safe from live wires. Utility workers follow safety rules, like grounding the tank and wearing safety gear. Bollards are put around the transformer to stop cars from hitting it. Insulated bushings and special tools help workers stay away from live parts.
Utility and industrial uses are:
Giving power to factories and plants
Helping water treatment centers
Sending electricity to public buildings
Running street lights and traffic signals
Pad mounted transformers cover high-voltage parts, so people and animals are safer in busy places.
Pad mounted transformers are also important for businesses and homes. In neighborhoods, they give power to houses using underground lines. This makes the area safer and looks better without wires above. Shopping centers and offices need pad mounted transformers for steady power. The sealed design stops people from getting in and keeps the equipment safe from weather.
Common uses for businesses and homes:
Neighborhoods with underground power lines
Apartment buildings and gated communities
Shopping malls and business parks
Schools, hospitals, and places for fun
Pad mounted transformers follow safety codes. Good labels and the right spot keep them away from buildings. Locked cases and warning signs help keep people and pets safe. These things make pad mounted transformers great for city and home underground power systems.
Utility workers and property managers can check and fix transformers easily, and people enjoy safer, cleaner places.
Every project needs to know its power needs. Engineers figure out the total load in kVA or MVA. They look at what kind of building it is. They count how many machines are used. They also think about if the building will grow. The pad mounted transformer must handle today's needs and future growth. Picking a bigger transformer by 15–25% helps stop overloads. It also helps add new equipment later. Planning for the biggest load keeps power steady.
Tip: Always check the highest load and think about future needs before you pick a transformer.
The right transformer depends on size and where it goes. Many things matter when choosing:
Where you put it (inside or outside) changes the case and airflow.
The building must hold the weight and let heat escape.
Cooling can use air or oil to help the transformer work better.
Loads can be linear (motors, heaters) or nonlinear (computers, drives). Nonlinear loads make harmonics. Harmonics cause extra heat and can hurt the transformer. K-rated transformers help stop this damage.
Big motors need more power at the start. This means you may need a bigger transformer.
The environment is also important:
Hot weather can make the transformer overheat and wear out faster.
Bad airflow makes it less efficient and can break it early.
Cold weather can make parts crack.
Wet air causes rust and insulation problems. Good cases and seals are needed.
Dirt and high places change how well it works. You may need a stronger transformer.
Good airflow and keeping the right temperature help the transformer last longer and stay safe.
A pad mounted transformer must follow safety and efficiency rules. In North America, it needs ANSI/IEEE, UL, CSA, and NEMA certifications. In Europe, it must meet IEC 60076 and EN 50588-1 rules. The table below shows important certifications for each place:
Region | Key Certifications and Standards |
|---|---|
North America | ANSI/IEEE (C57 series), UL (UL 1561, UL 506, UL 1446), CSA (CSA C227.5), NEMA (TR-1, TP-1, ST 20) |
Europe | CE marking, IEC 60076, EN 50588-1, RoHS, ENEC marking |
These certifications make sure the transformer is safe and works well. They also protect people, buildings, and nature.
Note: Always look for the right certifications before you install a pad mounted transformer.
Getting the site ready is important for a safe setup. The team checks the ground to make sure it is flat and drains well. They pour a concrete pad that is 15–20 cm thick and strong enough. This pad holds the transformer and keeps it steady. Workers put anchor bolts in the right spots using the maker’s plan. They test the soil and fix the ground so it does not move later. The crew puts in a grounding grid and lines up the conduit stub-ups with the transformer. They make sure there is enough room for tools and future work. Safety is always first, so workers wear gloves, hard hats, and safety glasses. They follow Lockout/Tagout steps during the setup. The team checks that the transformer rating fits the project and keeps at least 3 meters away from buildings.
Routine checks help the transformer last longer. Technicians turn off the power and use Lockout/Tagout before they start. They wear the right gear like gloves and flame-resistant clothes. Each month, they look for leaks, rust, loose wires, and broken cables. Every three months, they check oil levels and add more if needed. Once a year, they clean the outside and use special scans to find hot spots. Every 1–2 years, they test the oil inside the transformer. Electrical tests, like checking insulation and winding resistance, are done every 3–5 years. Technicians also look at cooling systems, protection parts, and tap changers. They keep the area neat and free of trash to stop overheating and rust.
Pad mounted transformers can have problems sometimes. The table below shows common problems and how to fix them:
Operational Issue | Description / Symptoms | Typical Resolution / Maintenance Actions |
|---|---|---|
Oil leaks | Oil is low or the pressure gauge is stuck at zero | Check seals, test pressure valves, and look at the oil |
Paint peeling/corrosion | Rust or damage on the outside | Clean and repaint as the maker says |
Fuse failures | Fuse blows because of too much current or a fault | Change the fuse with the right tools and safety steps |
Pressure abnormalities | Pressure readings are sudden or strange | Use pressure relief devices and relays to control surges |
Load switching issues | Explosion risk when switching loads the wrong way | Use hot rods and ground terminals before working |
Voltage surges | Voltage spikes hurt equipment | Put in surge arresters to protect the transformer |
Tip: Checking often and fixing things fast stops small problems from turning into big ones.
Low voltage pad-mounted transformers work well for homes and businesses. They are small and easy to reach. Medium voltage units are used in factories and by utility companies. These need strong insulation and better cooling systems. Engineers look at kVA size, where the transformer will go, and safety rules before choosing. Picking trusted brands and custom options makes them work better. Getting help from experts keeps the setup safe and follows the rules. This protects both people and equipment.
Always ask experts for help with safety and technical questions.
Pick certified products so they last a long time.
Low voltage pad mounted transformers work with up to 1,000 volts. Medium voltage types use voltages from 1 kV to 35 kV. Each kind is made for different power needs and safety rules.
Technicians need to check pad mounted transformers every month. They look for leaks, rust, and loose wires. Once a year, they clean, scan for heat, and test the oil. Regular checks help stop problems and make the equipment last longer.
Most pad mounted transformers are built for outdoor places. Some can go inside if the room has good airflow, enough space, and meets safety rules. Always follow what the maker says and local codes.
Pad mounted transformers have strong cases, locks, warning signs, and insulated bushings. Many have heat sensors, pressure relief parts, and smart monitoring systems. These things keep people and equipment safe.
Engineers pick oil-filled pad mounted transformers because they cool and insulate better. These units work well in tough places and handle bigger loads. Oil-filled types need regular care to stay safe.
