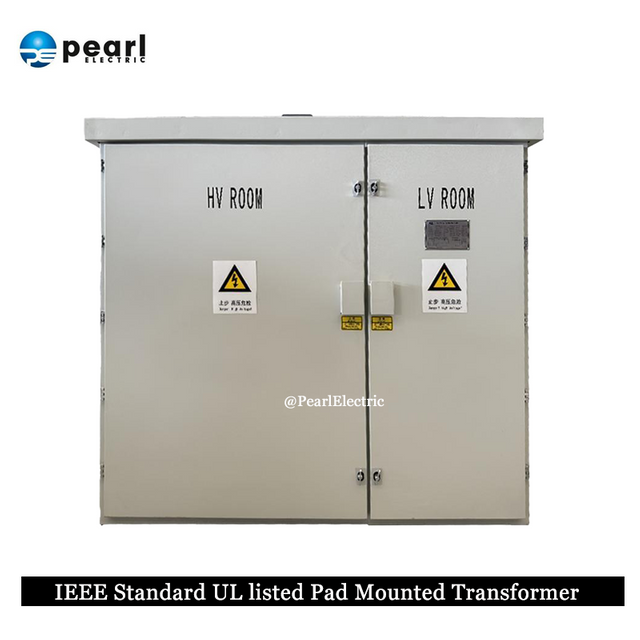

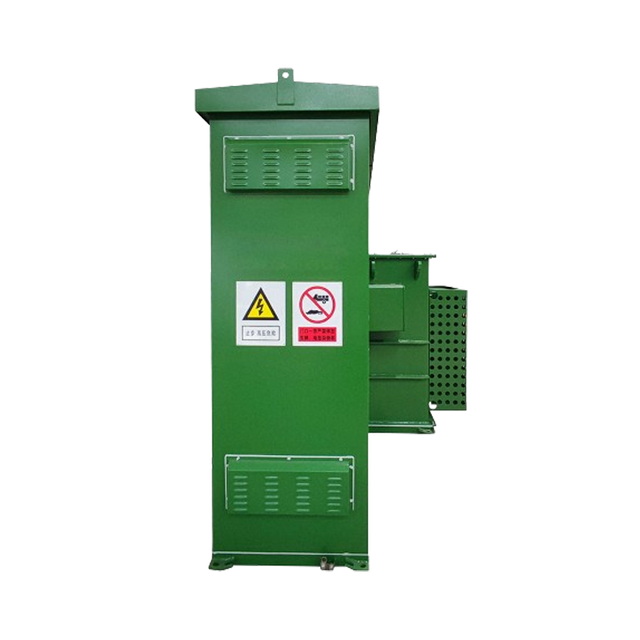

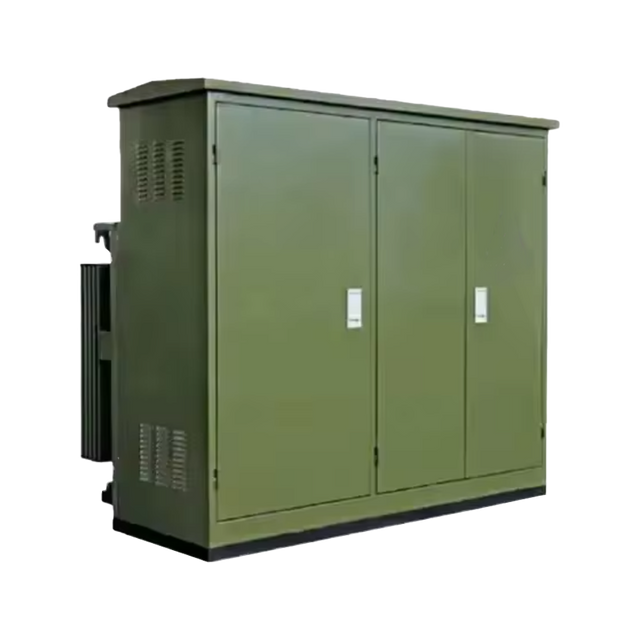

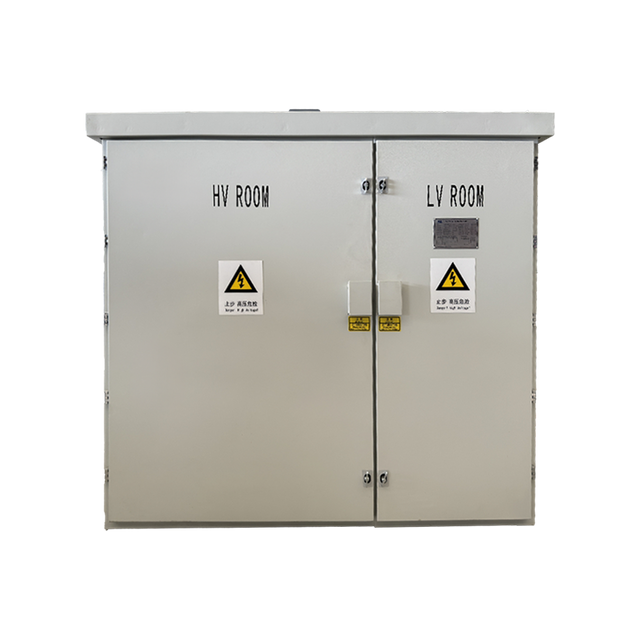

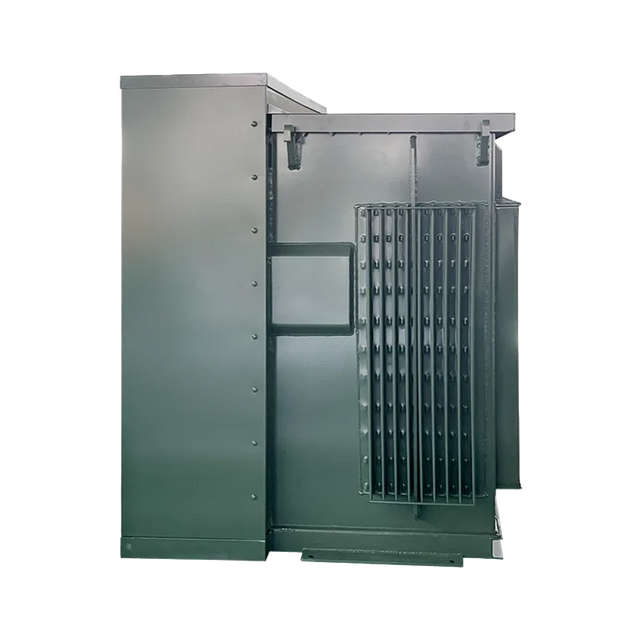

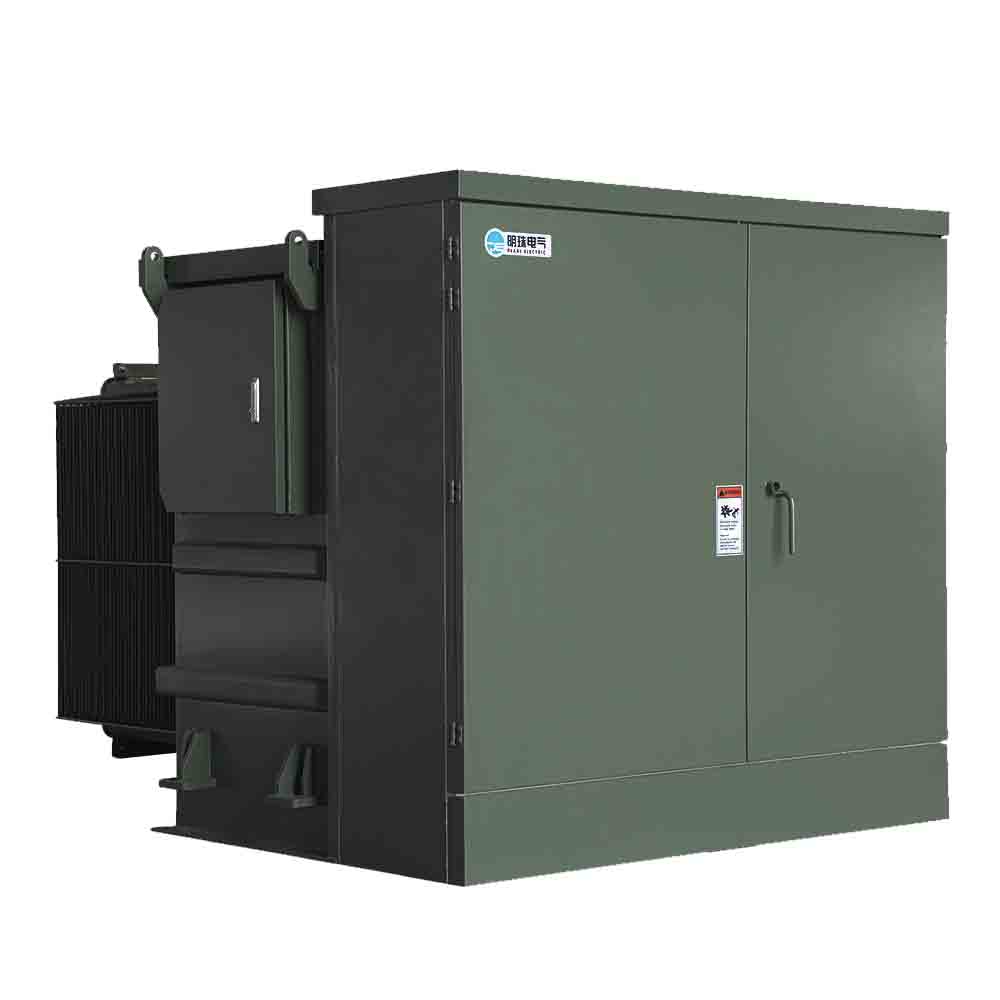

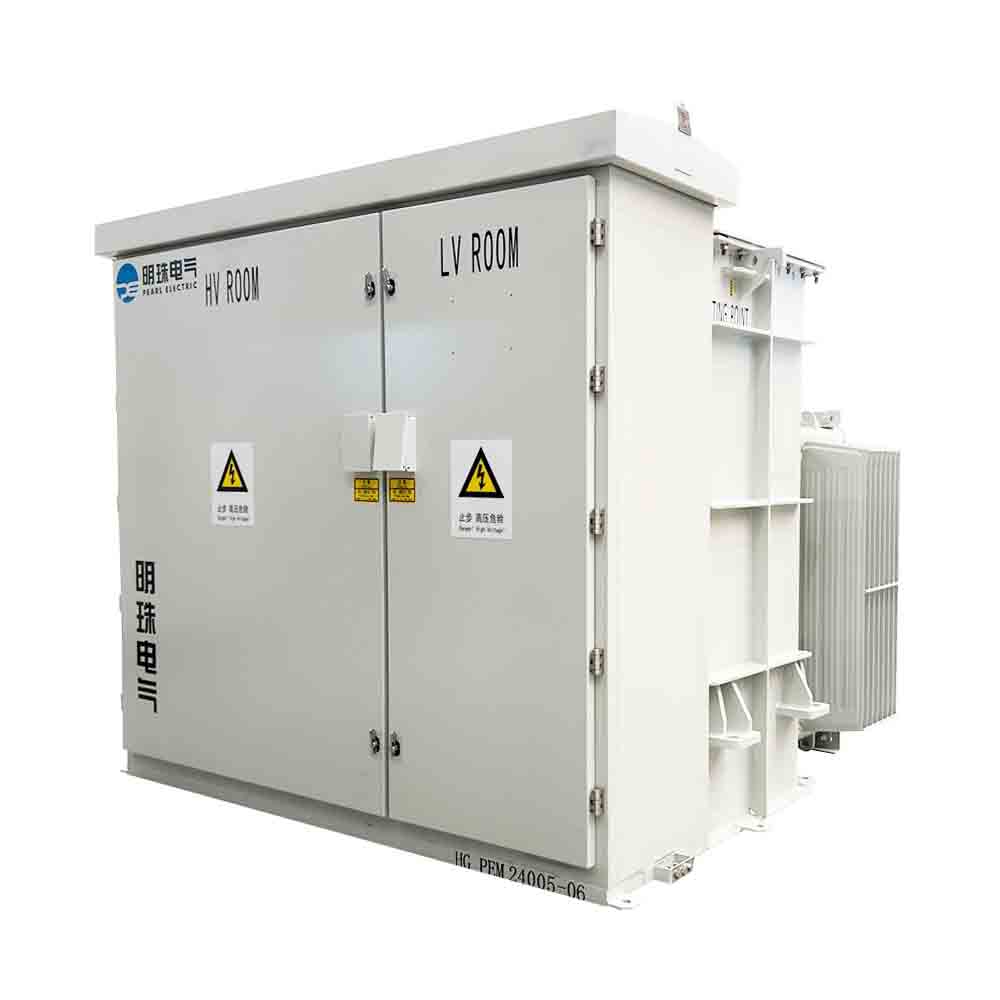

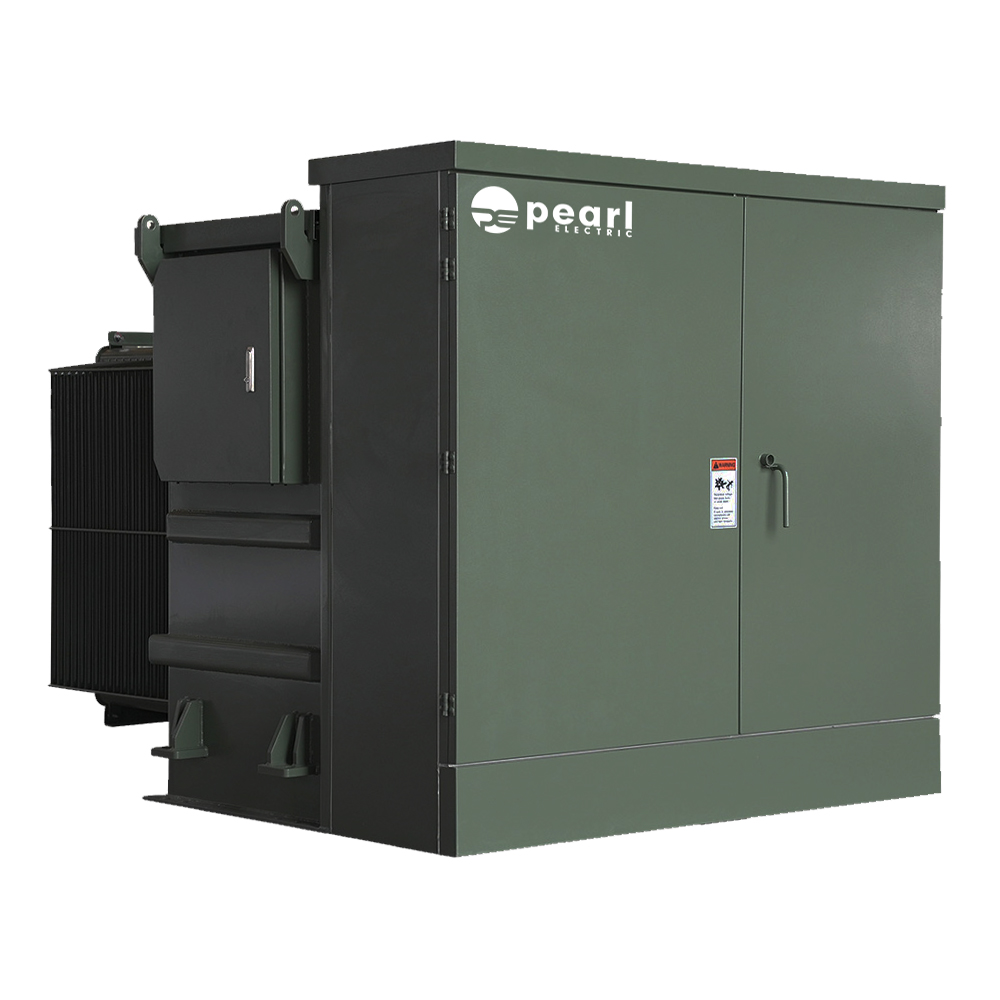

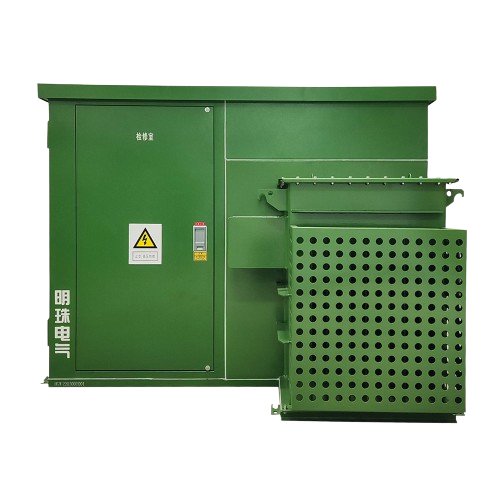

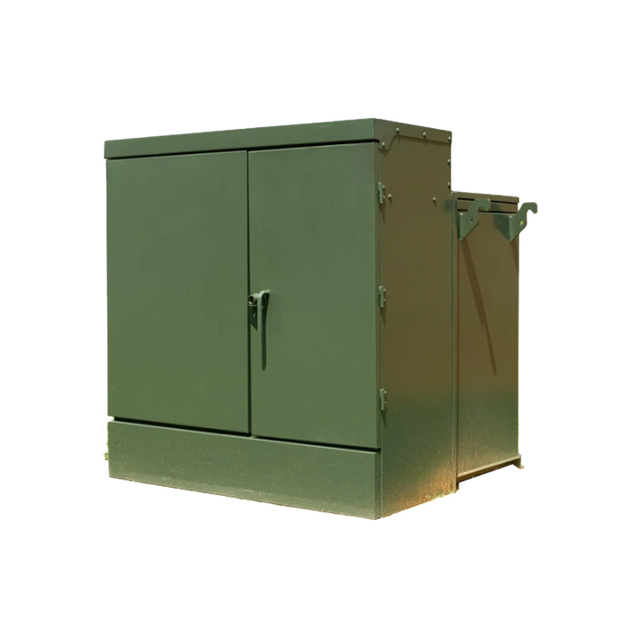

Three Phase Pad-Mounted Transformer

Powering North American Data Centers

Premium step-down transformers engineered specifically for North American hyperscale and enterprise data centers. Delivering high efficiency, extreme reliability, and power quality for critical infrastructure.

Key Advantages:
• North American Standards & High Efficiency: Fully compliant with IEEE C57, NEMA, and UL. Exceeds DOE / NRCan standards to maximize energy efficiency and minimize OPEX.
• Harmonic Mitigation: Specially engineered to handle non-linear loads and eliminate harmonics from UPS and server systems, ensuring clean power.
• Dual-Fuse Critical Protection: Combines Bay-O-Net and current-limiting fuses to swiftly isolate faults and guarantee maximum operational uptime.
• Smart & Heavy-Duty Enclosure: Rugged NEMA 3R housing with optimized thermal management to withstand continuous high-heat operations.

Applications:

• Hyperscale and Enterprise Data Centers
• Colocation Data Facilities
• Critical Power Distribution Networks
• Backup and Redundant Power Systems
• Medium-to-Low Voltage Distribution Systems

Get a Custom Quote

Download Pad Mounted Transformer (PDF)

Pad Mounted Tranformer Basic Information

Capacity	Up to 10MVA
Primary Voltage	6KV 10KV 11KV 12.7KV 13.8KV 34.5KV 40.5KV
Secondary Voltage	120V to 14400V
Cooling Type	ONAN/KNAN
Fluid Type	Mineral oil/ FR3 Vegetable oil
Certification/Standards	（UL , CUL, CSA) IEEE/IEC

Why Choose Pearl Electric Pad Mounted Transformers?

*Pearl Electric has extensive experience in the United States and Canada, contact our salesperson for more information!

Request Specs & Quote

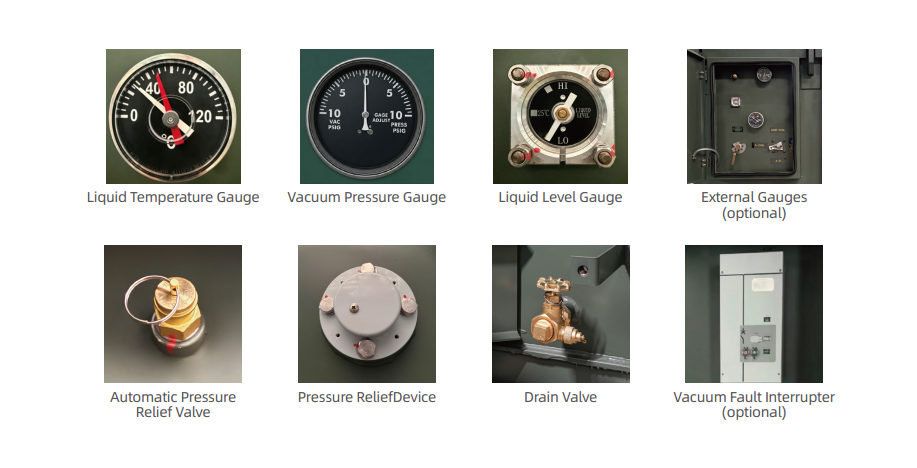

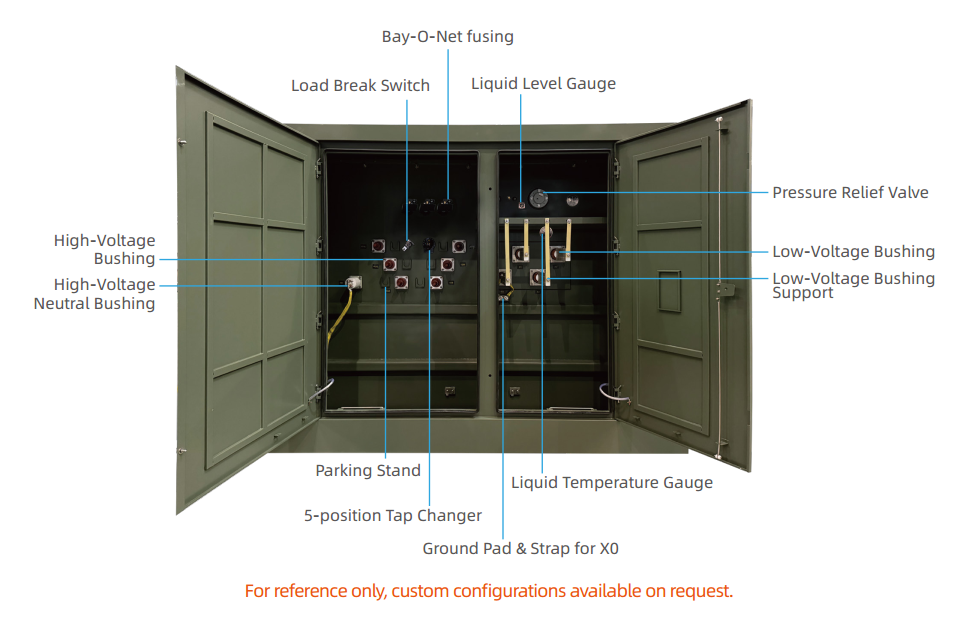

Pad Mounted Tranformer Accessories

Test Compliance

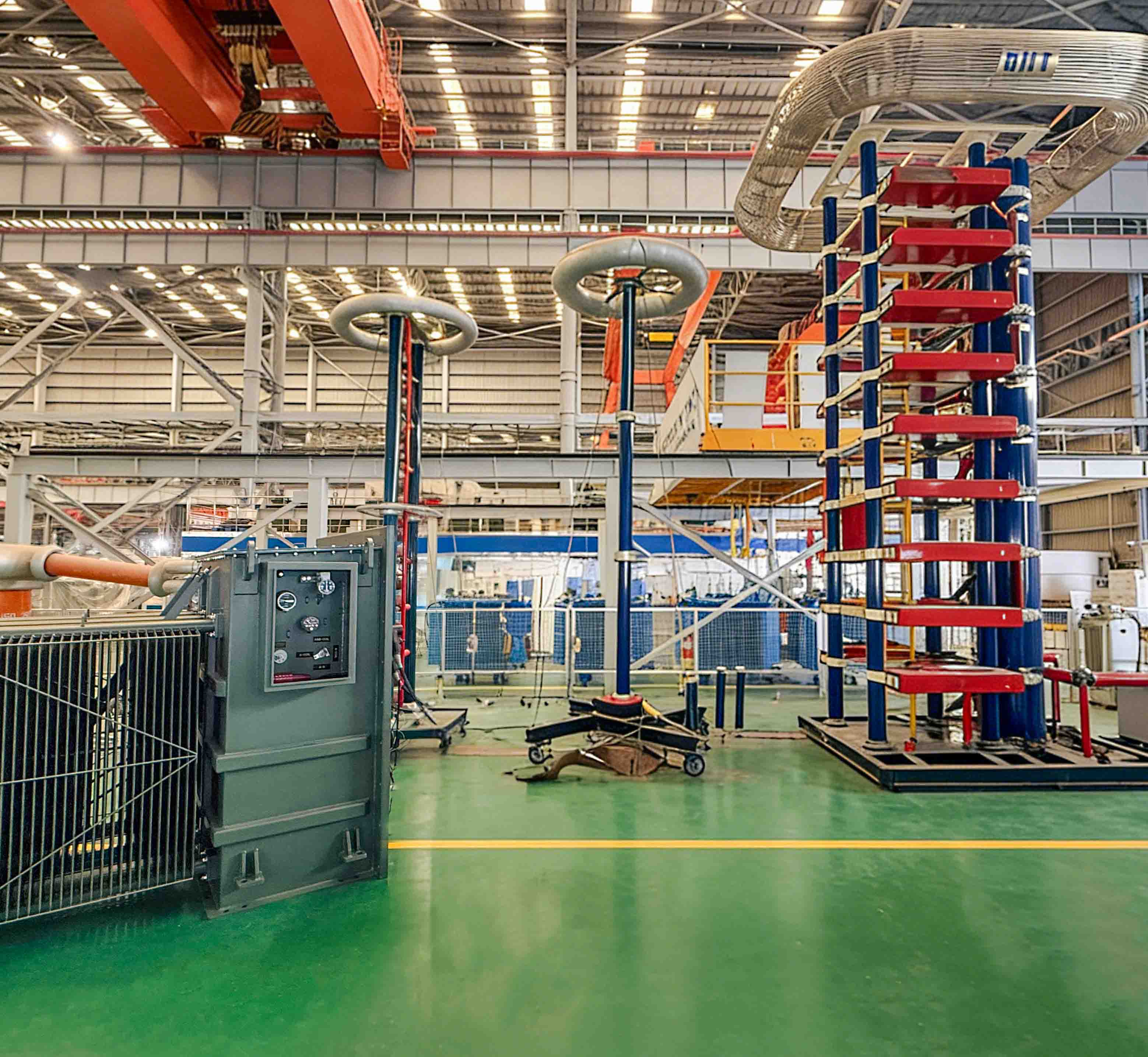

At Pearl Electric, safety and performance are non-negotiable. Our transformers are engineered and tested to strictly comply with international standards including ANSI/IEEE and IEC. Supported by our state-of-the-art testing facility and accredited cUL / UL certifications, we deliver robust, maintenance-free, and high-reliability transformers tailored for international utilities and industrial applications.

Bullet Points:

Full Test Coverage: Routine, Type, and Special Tests performed in-house.
North American Grid Ready: Fully compliant with ANSI/IEEE C57.12.00 & C57.12.90.
Certified Safety: Verified by UL Solutions for both American and Canadian standards.

View Pearl Electric Design & Testing Capabilities

Why Choose Pearl Electric Pad Mounted Transformers?

• Full Grid Compliance (UL & IEEE Standards)
Engineered and certified in full compliance with IEEE/ANSI C57 and UL standards, providing rapid grid interconnection and smooth code approval for overseas utility and commercial projects.
• Enhanced Dead-Front Safety Design
Equipped with fully insulated plug-in load-break elbow connectors and dual-fuse protection (Bay-O-Net + current limiting), guaranteeing zero live-part exposure and maximum operator protection.
• Tailored Capacity & High Energy Efficiency
Customizable ratings up to 10MVA and 40.5kV, featuring precision step-lap silicon steel cores that minimize no-load losses and operational noise for long-term ROI.
• Flexible Application & Rapid Lead Times
Offering both radial and loop feed configurations tailored for solar PV, wind generation, and commercial sub-stations, backed by fast-track manufacturing to meet urgent project schedules.

Technical Specifications

Safety & Reliability/ Easy Maintenance

• Dead Front Safety Structure: Fully insulated plug-in elbow connectors, zero clearance required, operator safety guaranteed.
• Dual Protection Mechanism: Bay-O-Net fuse + Current limiting fuse combination to prevent transformer explosion during overload.
• Maintenance-Free & Sealed Tank: Hermetic sealing with high-grade anti-corrosion coating (tested for 1000+ hrs salt spray).

• Low Noise & High Efficiency: Optimized silicon steel / amorphous alloy core meeting IEEE C57 DOE efficiency standards.

Low Noise Operation

• Whisper-Quiet Performance: Engineered to operate 3–5 dB below NEMA TR-1 & IEEE standards, ensuring near-silent integration into noise-sensitive environments.
• Advanced Core Technology: Features high-permeability, grain-oriented silicon steel cores with precision step-lap stacking to drastically reduce magnetostriction and magnetic noise.
• Vibration-Damping Design: Built with reinforced internal structural clamping and anti-vibration rubber pads to absorb mechanical resonances during high-load operations.
• Ideal for Sensitive Applications: Perfect for residential neighborhoods, hospital zones, commercial complexes, data centers, and school districts where strict decibel limits apply.

Perfect Functionality & High Performance

• Hermetic Sealing: All metal parts reliably grounded, no insulation clearance required, ensuring operational safety.
• Fully Insulated Connections: HV circuit uses fully insulated plug-in T-connectors for easy connection/disconnection.
• Safe Operation: Equipped with insulated operating rods to prevent direct contact with live parts.
• Anti-Theft Design: No exposed removable bolts, optional radiator protective cover available.

High Protection Level & Durability

• IP54/IP65 Hermetic Sealing: Fully sealed tank construction prevents dust, moisture, and oil leakage, completely isolating core components from ambient threats.
• C5-M Anti-Corrosion Finish: Multi-layer polyurethane coating passes 1000+ hour salt spray testing, engineered for harsh coastal, desert, and chemical environments.
• Robust Pressure-Resistant Enclosure: Heavy-duty steel plate construction seamlessly welded to withstand 50kPa pressure tests and seismic forces without deformation.
• Rugged Transport Base: Integrated channel steel base frame guarantees structural integrity and zero displacement during long-distance transit and hoisting.

Trusted By Industries Worldwide

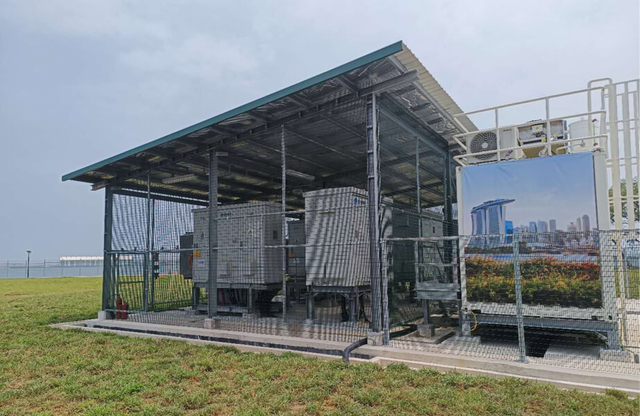

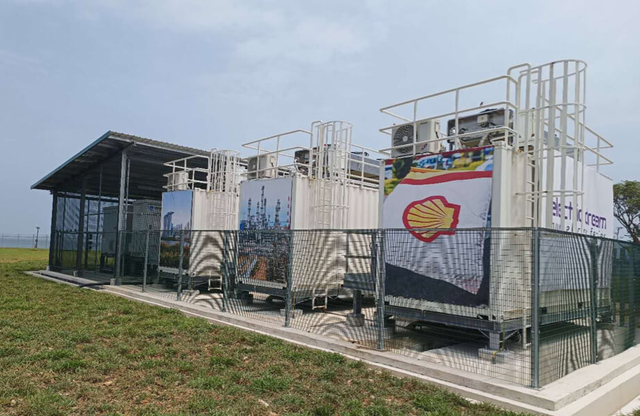

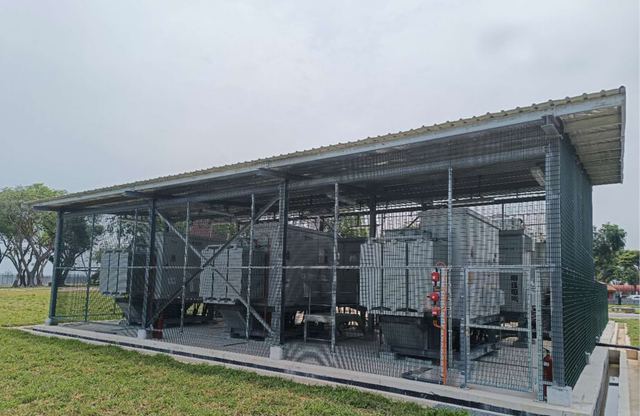

Featured Case Study: Singapore Penguin-Shell Shore Power Electrification Project

Project Highlights & Engineering Performance:
Application: Shore power step-down distribution for Shell’s first fully electric ferry fleet at Pulau Bukom, Singapore.
Environment: High-humidity, high-salinity coastal marine environment with continuous heavy charging loads.
Core Solution: Heavy-duty pad-mounted transformers equipped with C5-M anti-corrosion coating, IP65 hermetic sealing, and advanced thermal management to prevent degradation from salt spray.
Global Replicability: Proven reliability across international port electrification, offshore energy, and harsh climate applications—including Middle East desert solar and coastal infrastructure.

View More Global Case Studies

Pad Mounted Transformer in Stock

FAQ-Pad Mounted Transformer

What compliance standards and certifications do Pearl Electric pad-mounted transformers meet?

Our pad-mounted transformers are fully designed and manufactured in accordance with IEEE/ANSI C57 and CSA standards. We offer UL Listed models up to 10MVA with official file numbers available for client verification. Additionally, our facility operates under ISO9001, ISO14001, and ISO45001 certified management systems.

What is the range of power ratings and primary voltages available?

We supply three-phase pad-mounted transformers with power capacities up to 10MVA. Primary voltage options cover standard utility and commercial grids, including 6kV, 10kV, 11kV, 12.7kV, 13.8kV, 12.47kV, 34.5kV, and up to 40.5kV. Both 50Hz and 60Hz frequencies with custom tap changers can be engineered upon request.

Do you offer both Radial Feed and Loop Feed configurations?

Yes, we provide both Radial Feed (for standalone end-of-line installations) and Loop Feed (for interconnected sectionalizing networks) configurations. All units are dead-front design equipped with load-break elbow connectors for safe, hot-pluggable operations without grid shutdown.

How do your pad-mounted transformers perform in harsh outdoor environments?

Built with heavy-gauge steel welded tanks and hermetically sealed construction (rated NEMA 3R), our units resist moisture, dust, and oil leakage. They feature multi-layer anti-corrosion coatings (tested for salt spray resistance) and wide operating temperature ratings (-40°C to +50°C), making them ideal for coastal port electrification, high-altitude wind farms, and desert solar PV installations.

What types of insulating fluid and core materials can I select?

We offer standard high-grade Mineral Oil, as well as high-fire-point bio-degradable FR3 Vegetable Oil or Silicon Oil for enhanced fire safety and environmental protection. For core and winding construction, customers can choose between high-permeability Silicon Steel cores or Amorphous Alloy cores, paired with Copper or Aluminum windings to balance efficiency and cost requirements.
