With the accelerating global energy transition and the continuous growth of industrial electricity load, high-voltage power transformers, as the core hub of the power transmission and distribution network, cannot afford any compromises in their stability and security. For overseas buyers and EPC contractors, facing numerous transformer manufacturers on the market, how can they establish a standardized and rigorous supplier evaluation system?

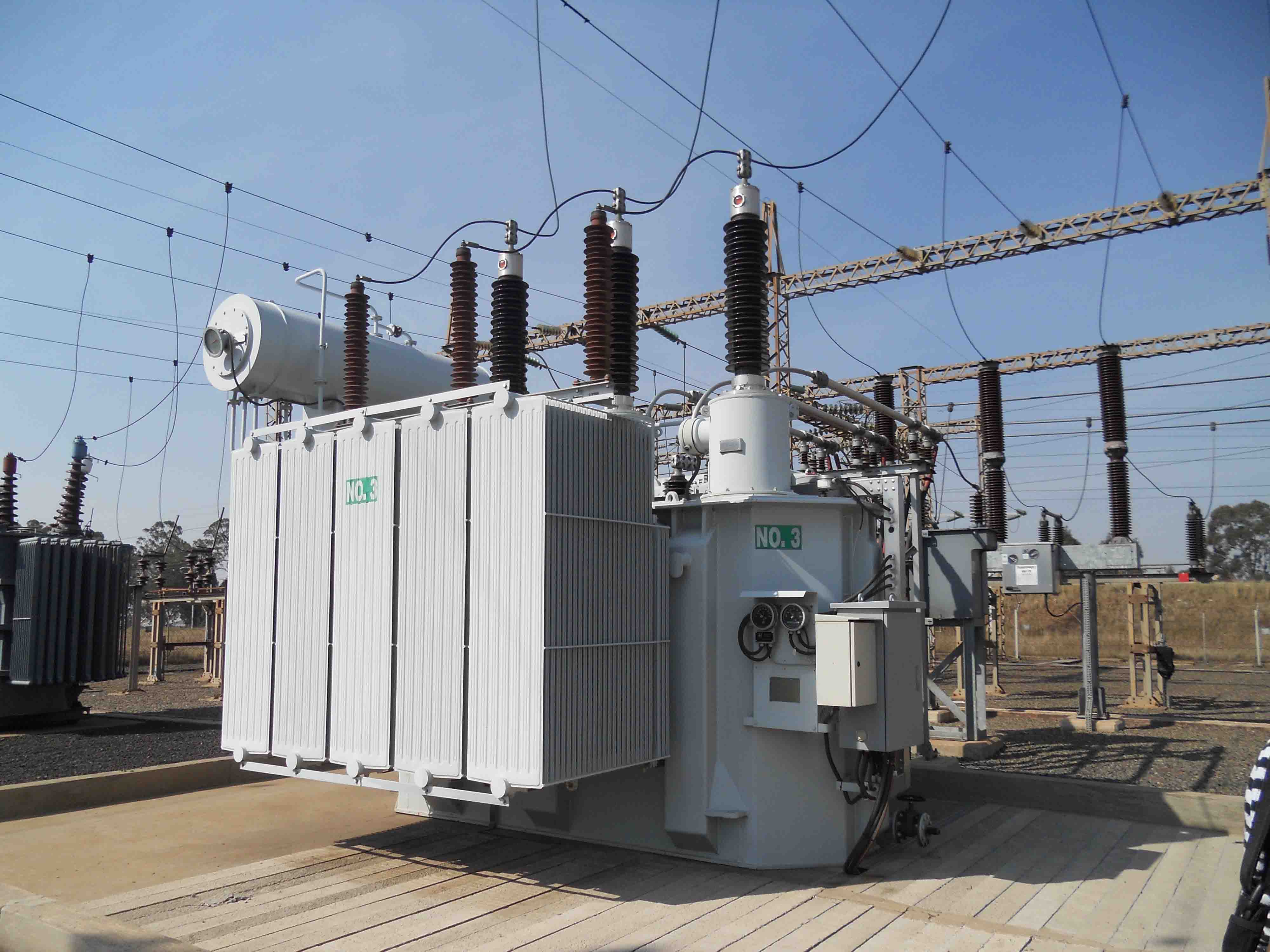

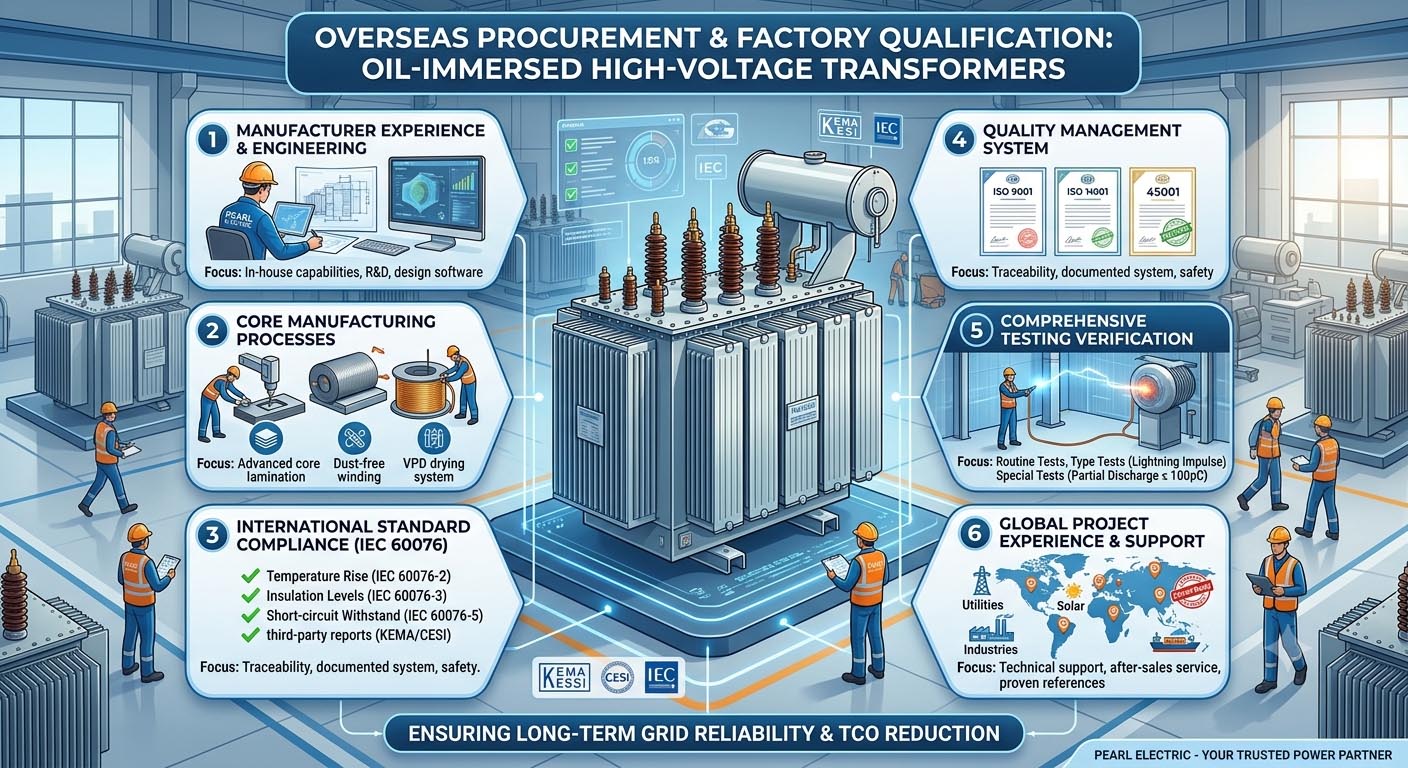

This article, leveraging Pearl Electric's professional manufacturing background, will provide a detailed "Checklist for Factory Qualification Verification of Oil-Immersed High-Voltage Transformers" from three core dimensions: brand positioning, IEC international standard compliance, and key testing.
A true transformer manufacturer should possess complete in-house capabilities instead of relying heavily on outsourcing.Capabilities Assessment In the first stage of verification, excellent high-voltage transformer manufacturers not only need basic assembly lines, but also require profound engineering design expertise and customized service capabilities.
High-voltage transformers (typically referring to 110kV/220kV and above) are often customized according to specific project environments, such as coastal high-salt-fog environments, high-altitude areas, or extreme industrial loads. The assessment should focus on verifying whether their design team possesses software systems for electromagnetic field calculation, stress analysis, and heat conduction simulation.
Core Lamination Process: Check whether high-permeability, low-loss cold-rolled grain-oriented silicon steel sheets are used, and whether a fully automated shearing line is available to ensure lamination accuracy and control no-load loss (P0).
Winding Insulation Workshop: The winding of high-voltage transformer coils must be carried out in a closed workshop with constant temperature, humidity, and dust-free conditions. Dust particles can easily become a hidden danger of partial discharge during future operation.
Transformer Drying Process: Check if an advanced Vapor Phase Drying (VPD) system is installed. Compared to traditional long-duration hot air drying, VPD can strictly control the internal moisture content of insulation components to ≤0.5%, significantly improving insulation life.

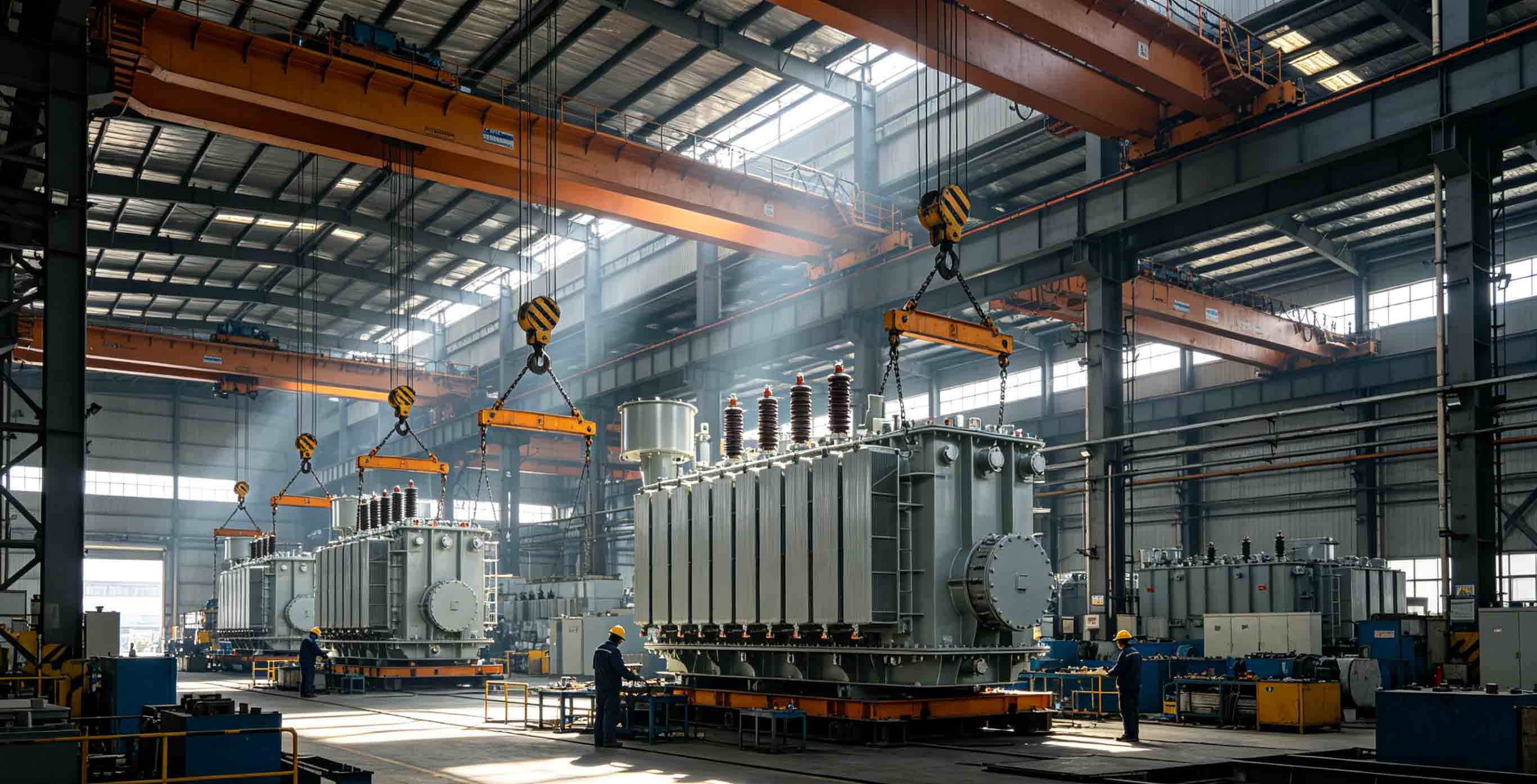

The manufacturer owns its own heavy industrial plant and has the crane capability to lift large transformers.
The winding and insulation workshops have independent air purification and temperature and humidity monitoring records.
Key process equipment (such as the vapor phase drying system and fully automated silicon steel sheet shearing machine) are the manufacturer's own assets and not outsourced.
As an established oil-immersed transformer manufacturer, Pearl Electric provides fully integrated manufacturing for power transformers up to extra-high voltage classes, serving utility substations, renewable energy projects, industrial plants, and infrastructure developments worldwide.
Standard compliance is the key to entering the international market. For oil-immersed high-voltage transformers, the most widely used and authoritative standard system globally is IEC 60076 (the series of standards for power transformers). Compliance review requires item-by-item comparison with the requirements of each section:
Temperature Rise Limits (IEC 60076-2): Under rated load, the temperature rise of the transformer windings, core, and insulating oil must comply with the standard. For example, for Class A insulation materials, under specific ambient temperatures, the average temperature rise of the windings should generally not exceed 65K, and the top oil temperature rise should not exceed 60K. The manufacturer must provide corresponding design verification calculations.
Insulation Levels and Dielectric Testing (IEC 60076-3): This section specifies the withstand voltage that the transformer must withstand at each voltage level. During the verification process, it is necessary to check whether the parameters of the transformer's lightning impulse withstand voltage (BIL) and power frequency withstand voltage (ACSD/ACLD) fully comply with the overvoltage protection requirements of the local power grid.
Short-circuit withstand capability (IEC 60076-5): When a short circuit occurs in the external power grid, the transformer coils will be subjected to enormous electromechanical stress. The manufacturer must provide a short-circuit mechanical strength calculation for similar or comparable capacity/voltage rating products, or a short-circuit withstand capability type test report issued by an internationally accredited third-party laboratory (such as KEMA, CESI, etc.).
Pearl Electric manufactures transformers according to IEC requirements and also supports customer customization based on ANSI/IEEE or other regional standards.
A reliable manufacturer should operate under a documented quality management system covering every manufacturing stage.
Important certifications include:
ISO 9001 Quality Management
ISO 14001 Environmental Management
ISO 45001 Occupational Health & Safety
These systems ensure traceability from raw materials to final shipment.
"Testing is a crucial standard for verifying product quality." A qualified manufacturer of oil-immersed high-voltage transformers must have a fully equipped shielded high-voltage testing hall in its factory. During on-site audits, the purchasing team must thoroughly review the following three categories of tests:
Winding DC Resistance Measurement: Verifies the welding quality of winding joints and the contact status of tap changers.
Voltage Ratio and Connection Group Marking Determination: Ensures the transformer turns ratio error is within the standard allowable range (typically ≤±0.5%).
Insulation Resistance, Absorption Ratio, and Dielectric Loss Factor (tan δ) Measurement: Provides a preliminary assessment of overall insulation moisture absorption.
Loss Measurement: Accurately measures no-load and load losses, directly related to energy efficiency and carbon emission indicators during operation.
Temperature-rise test: Verifies the heat dissipation efficiency of the radiator/cooling system under continuous full-load operation.
Lightning impulse test: Simulates the insulation withstand capability of a transformer when struck by atmospheric lightning.
Partial Discharge Measurement: This is the most critical non-destructive indicator for evaluating the insulation life of a high-voltage transformer. According to high standards, at a test voltage of 1.58Um / √3, the partial discharge should be strictly controlled to ≤ 100pC (depending on the specific voltage level). The lower the discharge, the purer the insulation system, and the lower the probability of future breakdown.
Transformer performance largely depends on material quality.
High-quality manufacturers use:
Cold-rolled grain-oriented silicon steel
High-conductivity copper windings
Premium cellulose insulation
Qualified transformer oil
High-strength structural steel tanks
Material traceability is equally important for long-term maintenance.
Experience across different countries demonstrates the manufacturer's ability to satisfy varying grid standards and environmental conditions.
Look for completed projects involving:
Utility substations
Industrial facilities
Urban power distribution
International references also indicate strong logistics and export capabilities.
A manufacturer should support customers before, during, and after delivery.
Professional services typically include:
Transformer selection
Technical consultation
Drawing approval
FAT witness support
Installation guidance
Commissioning assistance
Spare parts supply
Long-term maintenance recommendations
Strong technical support reduces project risk and minimizes downtime.
Pearl Electric has been manufacturing oil-immersed high voltage transformers for global utility and industrial applications for decades. The company combines advanced manufacturing technology, strict IEC compliance, and comprehensive factory testing to deliver reliable transformers for demanding operating environments.
Key advantages include:
Utility-grade transformer manufacturing
IEC-compliant engineering
Complete factory acceptance testing (FAT)
Modern automated production facilities
Customized transformer solutions
Global export experience
Professional engineering and after-sales support
For international EPC contractors, utilities, and renewable energy developers, selecting an experienced manufacturer with proven quality systems is essential for ensuring long-term grid reliability.
The procurement of oil-immersed high-voltage transformers should not only focus on the initial commercial price, but also pay attention to the total cost of ownership (TCO) over its 20- to 30-year lifecycle. By using this customized factory qualification checklist to comprehensively assess the manufacturer's brand positioning, IEC standard compliance, and core testing capabilities, technical risks can be filtered out from the source.
