What is a Pad Mounted Transformer? The Complete Guide

Pad mounted transformers (PMTs) are the unsung heroes of modern electrical distribution. As critical components of urban and suburban power networks, these compact, ground-level units deliver electricity safely to homes, businesses, and public infrastructure. But what exactly makes them indispensable?

Defining Pad Mounted Transformers

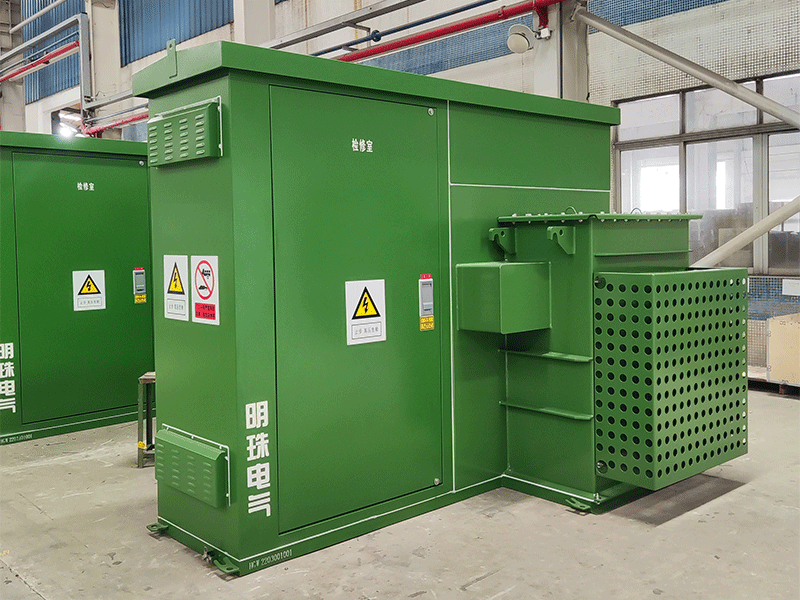

A pad mounted transformer is an enclosed, ground-mounted electrical distribution transformer installed on a concrete pad. Designed for outdoor use, it steps down high-voltage electricity (typically 15kV-35kV) to usable low-voltage levels (120V-600V) for end consumers.

Key Components:

1. Tank & Enclosure

• Weatherproof steel housing with tamper-resistant locks

• Corrosion-resistant coatings for 30+ year lifespan

2. Core & Windings

• Silicone steel cores with copper/aluminum windings

3. Cooling System

• Convection-cooled (OA) or forced-air (FA) designs

4. Bushings

• Dead-front design for enhanced safety

5. Protection Systems

• Pressure relief devices, fault indicators, surge arrestors

Why Choose Pad Mounted Transformers? 5 Critical Advantages

① Space-Saving Design

With underground cable connections and compact footprints (typically 1.5m x 2m), PMTs eliminate the need for overhead lines and poles - ideal for dense urban areas and aesthetic-sensitive locations.

② Enhanced Public Safety

• Locked enclosures prevent unauthorized access

• Submerged oil containment systems meet EPA requirements

• Fault current protection reduces fire risks

③ Reduced Maintenance Costs

Featuring hermetically sealed tanks and moisture-resistant insulation, modern PMTs require 50% less maintenance than pole-top units based on IEEE C57.12.00 standards.

④ Grid Reliability

Pad mounted transformers enable loop feed configurations - if one unit fails, network switches automatically reroute power to minimize outages.

⑤ Customization Flexibility

Available in single-phase (25-500kVA) and three-phase (75-5,000kVA) configurations with options for:

• Harmonic mitigation

• Low-noise designs (<65dB)

• High-efficiency models (meeting DOE 2023 standards)

Applications: Where Pad Mounters Power Communities

• Subdivision & housing developments

• Shopping malls and commercial centers

• Hospital and university campuses

• Industrial parks (with arc flash protection)

• Renewable energy interconnections
