How To Select Transformers for Mission-Critical Power Infrastructure?

Why Does Mission-Critical Power Infrastructure Have Extremely High Requirements for Transformers?

In mission-critical infrastructure such as data centers, hospitals, semiconductor cleanrooms, and automated manufacturing plants, the continuity and stability of the power supply are lifelines for business operations. Even milliseconds of power interruption or voltage sags can cause core server downtime, medical rescue interruptions, or production line damage, leading to immeasurable economic losses and safety risks.

As the energy hub between the grid/generators and core loads, a transformer's performance directly determines the reliability of the entire distribution topology. Facing complex and diverse power supply requirements, procurement teams and engineering personnel must evaluate systematically across multiple dimensions—such as load characteristics, redundancy architecture, cooling methods, energy efficiency standards, and authoritative certifications—rather than focusing solely on capacity.

This article outlines the core criteria for selecting transformers in mission-critical environments and introduces industry-leading certified solutions.

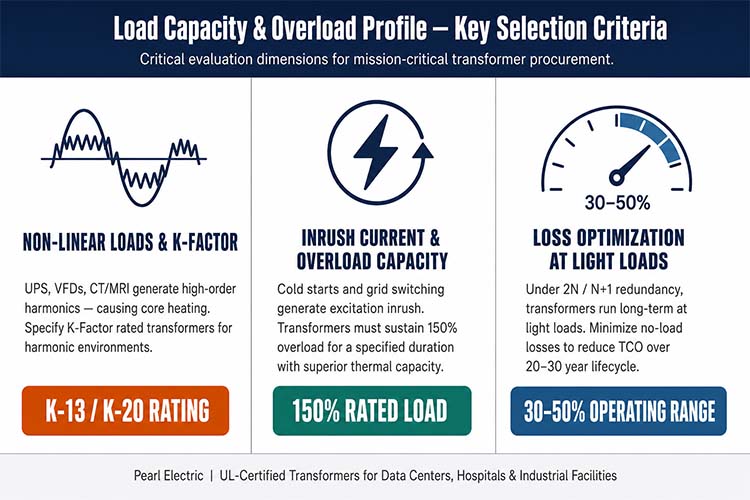

1. Load Capacity & Overload Profile

In mission-critical infrastructure, the loads borne by transformers are vastly different from traditional industrial loads:

• Non-Linear Loads & K-Factor: Server power supplies (UPS) in data centers, variable frequency drives (VFDs), and large imaging equipment (CT, MRI) in hospitals generate high levels of high-order harmonics. Harmonic currents cause severe heating in transformer cores and windings, sharply reducing efficiency. Dedicated transformers with K-Factor ratings (e.g., K-13, K-20) must be selected to ensure long-term stable operation in harmonic environments without reducing lifespan.

• Inrush Current & Overload Capacity: Significant excitation inrush currents occur during grid switching or cold starts. Transformers must possess superior thermal capacity and short-term overload capabilities (e.g., maintaining stable power supply under 150% rated load for a specified duration).

• Loss Optimization at Light Loads: Under 2N or N+1 redundancy architectures, transformers run long-term in the 30%–50% light load range. Consequently, special attention must be paid to no-load losses; high efficiency at light loads significantly lowers operating costs.

2. Redundancy & High Availability

To guarantee zero downtime, mission-critical facilities typically adopt Tier III/IV redundancy architectures (such as N+1 or 2N topologies). Transformers themselves must also feature high-availability designs:

• Short-Circuit Resistance: Transformers must pass rigorous sudden short-circuit tests to ensure structural integrity during system faults.

• On-line Monitoring Interfaces (PD & Thermal Monitoring): Reserved interfaces for Partial Discharge (PD) and temperature monitoring facilitate intelligent operation and early fault warnings.

• Redundant Cooling: Dual-power automatic transfer switch control boxes for cooling fans eliminate single points of failure (SPOF) in the cooling system.

(Note: Values shown are typical industry‑recommended criteria for mission‑critical applications. Exact overload & K‑factor performance shall be verified with the manufacturer’s datasheets and varies between dry‑type and liquid‑filled transformers.)

3. Cooling Methods: Dry-Type vs. Liquid-Filled

Selecting dry-type transformers vs. liquid-filled transformers depends primarily on installation location, fire safety requirements, and capacity scale:

4. Energy Efficiency & Standards (TCO Optimization)

In the total cost of ownership (TCO) of a transformer, initial procurement costs account for only about 5%–10%, while electrical losses during operation make up the vast majority.

Procurement should strictly align with advanced international efficiency standards:

• DOE 2016 (US Department of Energy Standard): Mandates high minimum efficiency standards for dry-type and distribution transformers.

• EU Tier 2 (European Eco-design Directive): Strictly limits no-load and load losses in transformers.

While high-efficiency transformers require a slightly higher initial investment, the electricity savings over a 20–30 year operational lifecycle will multiply the premium paid.

5. Authoritative Certifications: Why UL & IEEE Are Essential

For high-risk sectors such as medical care and data centers, authoritative product certification is an absolute threshold for engineering compliance and safety:

• UL Certification: The gold standard for electrical safety and fire protection in North America and globally. UL certification indicates that the transformer's insulation system (e.g., Class 220°C / Class H), temperature rise limits, and material flame retardancy have passed extreme third-party testing.

• IEEE Standards: Define testing benchmarks for transformers under seismic conditions, high altitudes, and special overload conditions.

Industry Best Practice: Pearl Electric Solution

As a trusted global partner for mission-critical power facilities, Pearl Electric manufactures a complete series of UL-certified dry-type and liquid-filled transformers tailored for high-availability environments:

• UL-Certified Cast Resin Dry-Type Transformers: Utilize Class H / 220°C high-temperature insulation systems, offering exceptional short-circuit resistance and extremely low partial discharge (<5 pC)—the ideal choice for indoor power distribution in data centers and hospitals.

• UL-Certified Eco-Friendly Liquid-Filled Transformers: Optional high-flashpoint natural ester (vegetable oil) significantly improves fire safety levels while complying with strict DOE high-efficiency standards.

• High Customization Capability: Tailored engineering for N+1 / 2N topologies, special footprint constraints, and harmonic mitigation (K-Factor) requirements, meeting Tier III / Tier IV data center construction standards.

Selecting transformers for mission-critical infrastructure like data centers and hospitals requires a comprehensive evaluation across five dimensions: capacity/load characteristics, redundancy design, cooling systems, energy efficiency standards, and safety certifications. Choosing a mature manufacturer with UL/IEEE certifications and deep customization capabilities eliminates power safety hazards at the source while boosting overall system energy efficiency.
