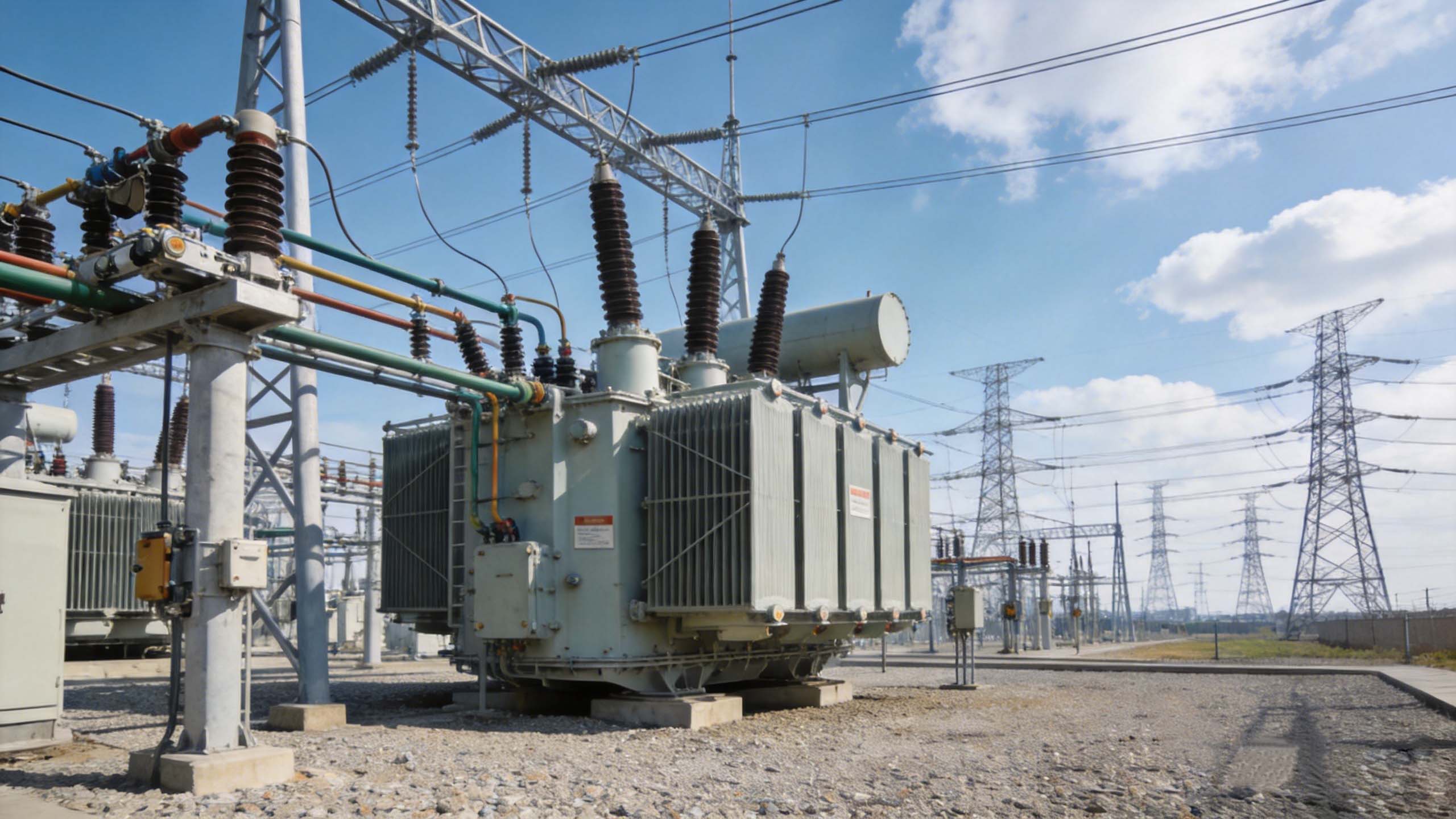

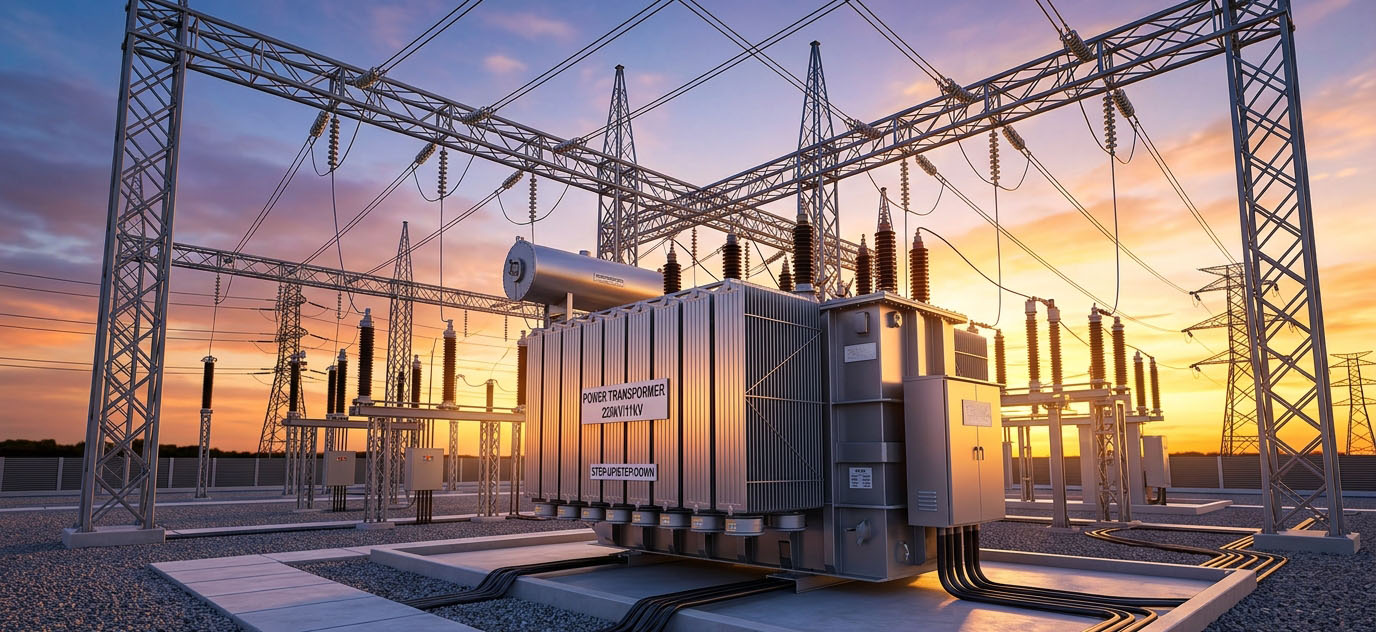

Step up and step down transformers are the backbone of every power system — quietly boosting voltage for long-distance transmission or stepping it down to safe levels for homes, factories, and data centers. But even a well-built transformer can fail prematurely, overheat, or create safety hazards when it's misused, misinstalled, or poorly maintained.
This guide walks through the 5 most common mistakes engineers, contractors, and facility managers make with step up/step down transformers, and how to avoid each one — with reference to IEC 60076 and ANSI/IEEE C57 standards that govern transformer design and testing.
Both are voltage transformation devices based on electromagnetic induction, but they serve opposite roles:
Step-Up Transformer: Increases voltage from primary to secondary winding (more secondary turns than primary). Used at power plants to raise voltage — e.g., from 11kV to 220kV — for efficient long-distance transmission with minimal line loss.
Step-Down Transformer: Decreases voltage from primary to secondary winding (fewer secondary turns than primary). Used at substations and near end-users to bring transmission voltage down to a safe, usable level, such as 400V or 230V.
The relationship is governed by the turns-ratio formula: Vs / Vp = Ns / Np
Where Vp/Vs are primary/secondary voltage and Np/Ns are primary/secondary winding turns. Getting this ratio — and the transformer selection built around it — wrong is where most of the mistakes below begin.
If you're specifying equipment for a new project, Pearl Electric's distribution transformer and dry-type transformer product lines are engineered and tested to IEC/ANSI standards, which helps eliminate several of these mistakes at the design stage.
Overloading is the single most common cause of premature transformer failure. Every transformer has a rated kVA/MVA capacity based on its cooling design (ONAN, ONAF, OFAF, etc.); pushing load beyond that rating accelerates insulation aging and can trigger thermal runaway.
Excess heat: Top-oil or winding temperature consistently above rated limits (per IEC 60076-2, typically 55°C/65°C rise class).
Abnormal noise: Buzzing or humming louder than normal, often from core saturation or loose windings under stress.
Frequent tripping: Protection relays or fuses activating repeatedly under load.
Size the transformer with headroom for future load growth (typically 20–25% margin), not just present-day demand.
Install load monitoring or a transformer monitoring system to track loading trends in real time.
Schedule periodic load audits, especially after adding new equipment, EV chargers, or expanding facilities.
For loads that fluctuate significantly — such as EV charging stations or renewable energy sites — it's worth reviewing Pearl Electric's guidance on transformer selection for mission-critical and high-variability power infrastructure, which covers redundancy and load-capacity planning in more detail.
A transformer that's correctly sized but poorly installed can fail just as fast as an undersized one. Installation errors often go unnoticed until the first fault occurs.
Loose or incorrect wiring connections — leading to arcing, hot spots, and voltage imbalance.
Poor or missing grounding — a serious safety hazard that also affects protection-relay coordination.
Inadequate ventilation or clearance — restricts natural or forced cooling, raising operating temperature.
Wrong vector group or phase sequencing — critical when paralleling transformers or connecting to existing grid infrastructure.
Installation should always be performed by qualified electrical professionals following the manufacturer's connection diagram and local electrical codes (e.g., NEC, IEC 60364).
Verify grounding resistance with a proper earth tester before energization.
Maintain manufacturer-specified clearances for airflow, especially for oil-immersed units with radiator banks.

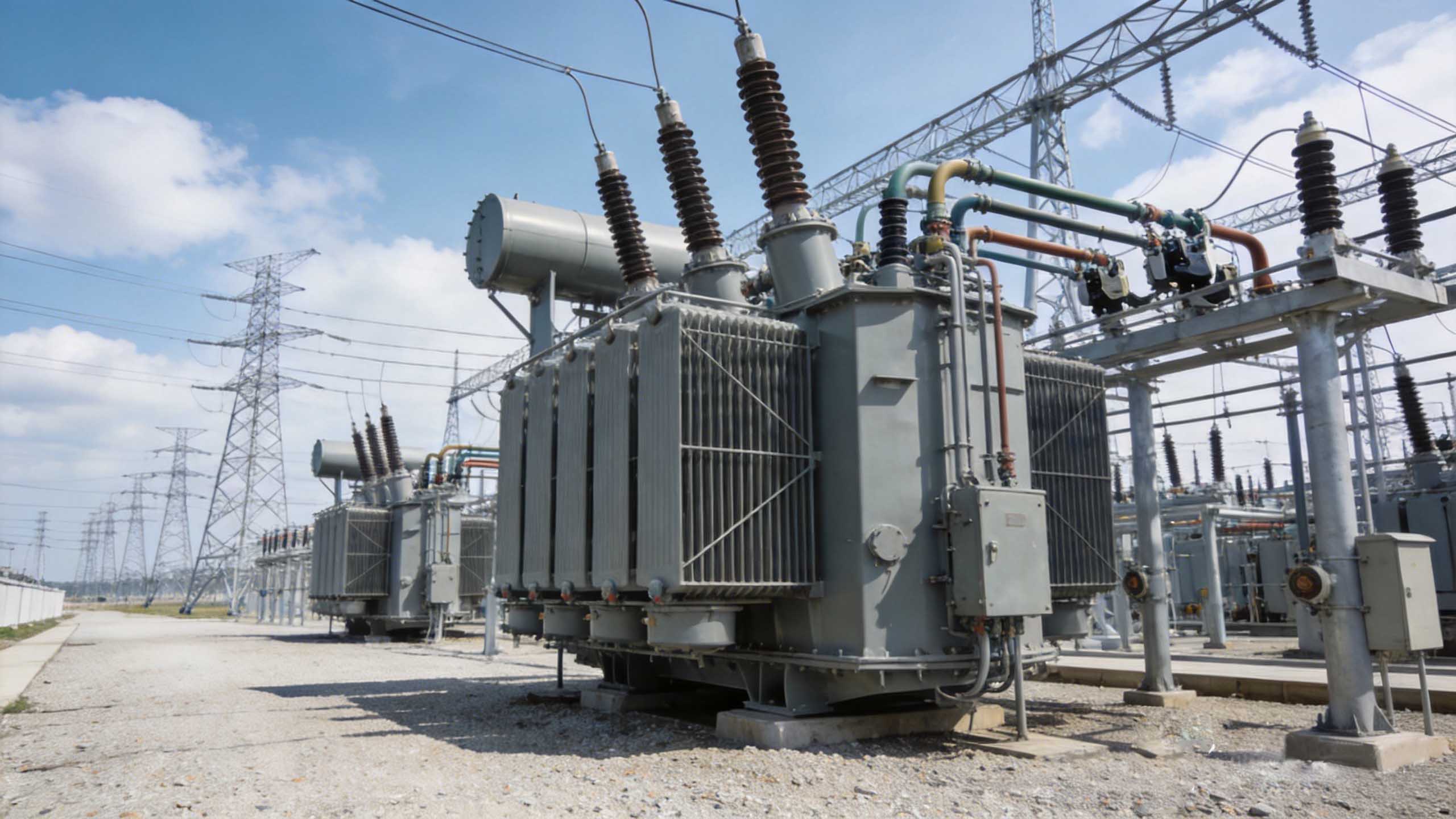

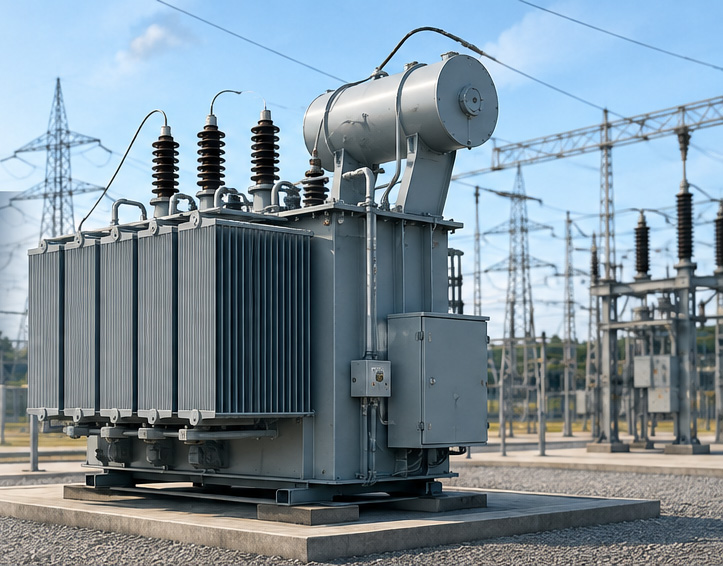

Transformers are built to run for decades — Pearl Electric's oil-immersed power transformers, for example, are designed for 30+ years of service life — but only with a consistent maintenance program. Skipping maintenance is one of the fastest ways to shorten that lifespan.
Insulating oil testing: Dielectric strength, moisture content, and dissolved gas analysis (DGA) at least annually for oil-immersed units — DGA can catch developing faults (arcing, overheating, partial discharge) months before failure.
Insulation resistance (megger) testing: Confirms winding insulation hasn't degraded from moisture ingress or thermal aging.
Oil leak and gasket inspection: Even small leaks reduce cooling efficiency and expose insulation to moisture.
Cleaning vents, radiators, and cooling fans: Dust and debris buildup reduces heat dissipation.
Tap-changer inspection: For units with on-load tap changers (OLTC), contact wear and oil compartment condition should be checked per the manufacturer's maintenance interval.
Consequences of Neglect Reduced dielectric strength, accelerated insulation aging, unplanned outages, and — in the worst cases — catastrophic failure requiring full transformer replacement instead of a low-cost repair. Pearl Electric has also published detailed guidance on addressing insulating-oil aging in transformers under fluctuating renewable-energy loads, which is a useful reference for wind and solar sites specifically.
Not every transformer is interchangeable — even within the "step up/step down" category. Choosing based on price or availability alone, without matching the application, is a frequent and costly mistake.
Type | Primary Role | Typical Use Case |
|---|---|---|
Step-Up Transformer | Increases voltage | Power plants, renewable energy grid-tie |
Step-Down Transformer | Decreases voltage | Substations, end-user distribution |
Isolation Transformer | Same voltage, electrically isolated windings | Sensitive equipment, medical/lab safety |
Dry-Type Transformer | Air/resin cooled, no oil | Indoor, data centers, fire-sensitive sites |
Oil-Immersed Transformer | Oil-cooled and insulated | Outdoor, high-capacity substations |
Load capacity (kVA/MVA) and expected growth
Indoor vs. outdoor installation environment
Fire and safety code requirements (dry-type is often mandated indoors)
Efficiency class and no-load/load loss requirements (relevant for energy-cost calculations and, in some markets, DOE/Ecodesign compliance)
Pearl Electric's high voltage transformer and dry-type transformer lines are built for different environments precisely because "one size fits all" doesn't apply in transformer selection.
A surprisingly common misconception is that transformers can convert AC to DC, or "create" power. In reality, a transformer only changes the voltage level of an existing AC supply — it does not change frequency, and it cannot convert between AC and DC.
AC current in the primary winding creates an alternating magnetic field in the core.
That magnetic field induces a voltage in the secondary winding.
The turns ratio (Ns/Np) determines whether the secondary voltage is higher (step-up) or lower (step-down) than the primary.
❌ "Transformers convert AC to DC." — False; that requires a rectifier, not a transformer.
❌ "All transformers work the same regardless of type." — False; core material, insulation class, and cooling method all affect performance and application fit.
❌ "A bigger transformer is always safer." — False; oversizing wastes energy on no-load losses and increases upfront/footprint costs unnecessarily.
No — this is not recommended. Operating a transformer near full load for extended periods accelerates insulation aging and reduces the safety margin. Most transformers achieve peak efficiency in the 50%–75% load range, where no-load losses (core/iron losses) and load losses (copper losses) are balanced. When sizing a transformer, it's best practice to reserve 20%–25% headroom for future load growth rather than selecting a unit based purely on the current full-load demand.
In principle, a transformer is a bidirectional device — connecting the supply to what was originally the low-voltage winding can theoretically reverse its function (e.g., using a step-up transformer in reverse as a step-down unit). In practice, however, several factors must be verified before doing so: magnetizing (excitation) current, core saturation margin, insulation class, and whether the tap changer is designed to operate in the reverse direction. Without confirming these, reverse operation can result in excessive inrush/magnetizing current or inadequate insulation margin. It's generally recommended to use a transformer specifically designed and factory-tested for the intended voltage direction, rather than simply reverse-connecting an existing unit.
The key considerations are the installation environment and fire-safety requirements. Indoor locations, occupied spaces, or sites with strict fire-rating requirements — such as data centers, commercial buildings, and hospitals — typically call for a dry-type transformer, since it's oil-free, offers better fire performance, and requires simpler maintenance. Outdoor installations, higher-capacity applications, or cost-sensitive substation and grid projects more commonly use oil-immersed transformers, which offer superior heat dissipation and are well-suited for large-capacity, continuous-duty operation. The final selection should also account for local fire codes and the specific load profile of the application.
As a general rule, insulating oil should be tested at least once a year, covering dielectric strength, moisture content, and dissolved gas analysis (DGA). For transformers subject to significant load fluctuation (such as wind, solar, or energy storage applications) or operating in harsh environments (high heat, high humidity, or dust), it's advisable to shorten the testing interval to once every 6 months, and to pair periodic testing with an online monitoring system that tracks oil condition trends in real time — allowing incipient faults to be detected and addressed before they develop into failures.

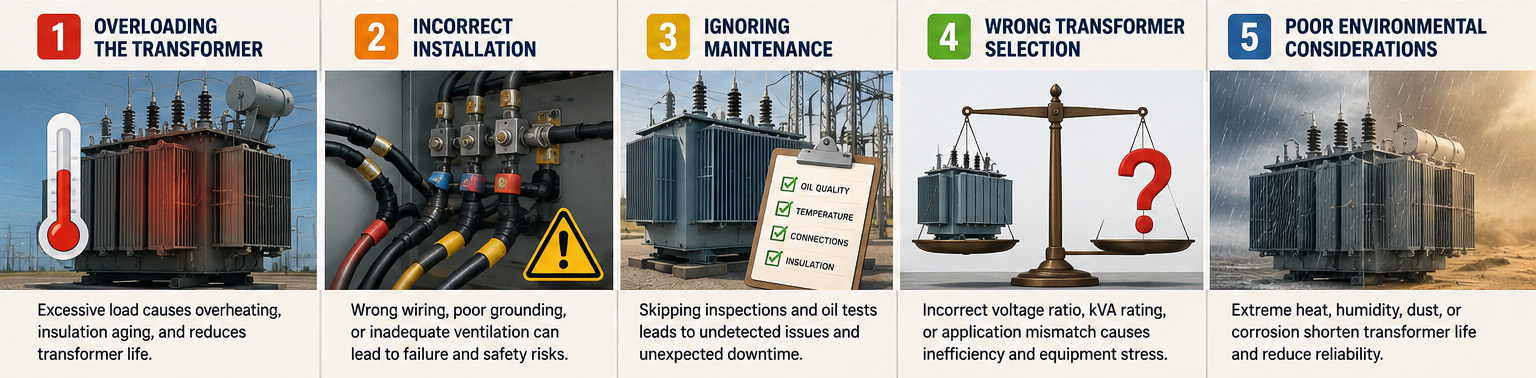

Avoiding these five mistakes — overloading, poor installation, neglected maintenance, mismatched transformer type, and misunderstanding how voltage conversion works — comes down to three habits: correct sizing, professional installation, and disciplined maintenance.
Match the transformer's kVA/MVA rating and type to your actual and projected load.
Have installation performed and verified by qualified electrical professionals.
Build a recurring maintenance schedule around oil testing, insulation checks, and visual inspection.
If you're evaluating transformer options for a new project or replacing an aging unit, Pearl Electric's engineering team can help you select the right specification — explore our product range or get in touch with our support team for a tailored recommendation.
