What Is A Three‑Phase Transformer?

A three-phase transformer is critical electrical equipment that steps up or steps down three‑phase alternating‑current voltage, widely deployed across modern power‑grid systems. Dry‑type variants of the three‑phase transformer are popular for indoor, fire‑sensitive applications.

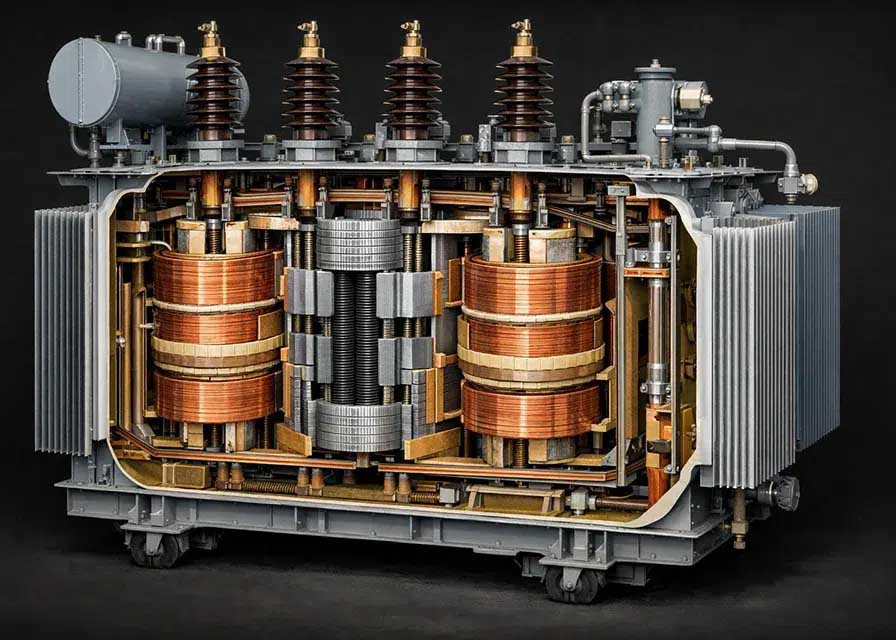

Main Components of a Three‑Phase Transformer

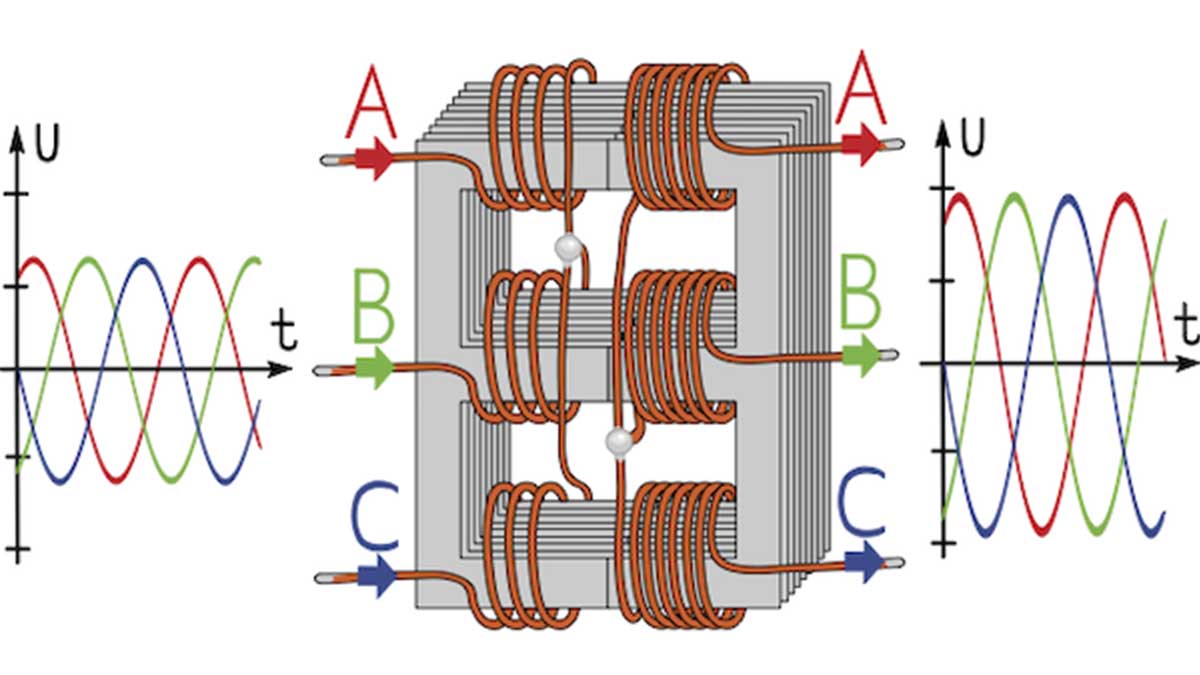

Three‑Phase Transformer Iron Core

The iron core is stacked from high‑permeability silicon‑steel sheets with insulating coatings to minimize eddy‑current losses. Two core‑structure types exist: core‑type and shell‑type. A three‑phase transformer adopts core‑type construction, where windings surround core limbs.

Functionally, the iron core acts as the magnetic circuit, offering a closed path for alternating magnetic flux. It enables efficient magnetic‑energy transfer through windings to realize mutual conversion between electrical energy and magnetic energy.

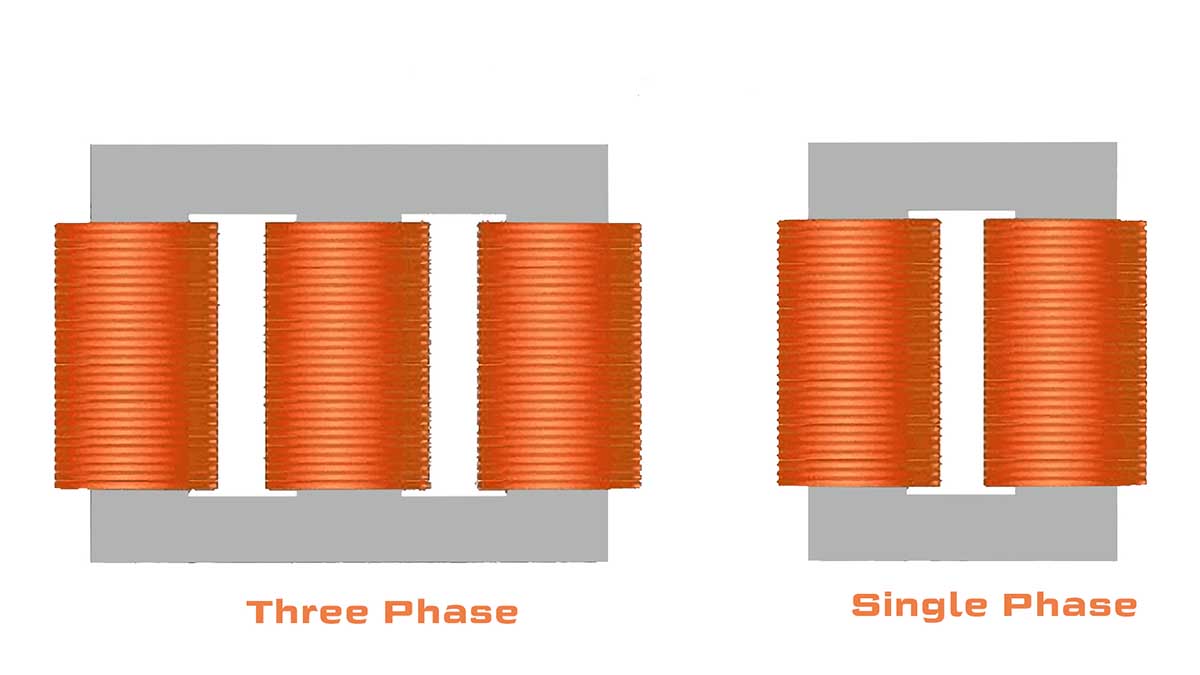

Three‑Phase Transformer Windings

Windings of a three‑phase transformer are wound with copper or aluminum conductors covered by insulating layers. Turn counts and wire diameters vary to match different voltage classes and capacity requirements.

Windings are grouped into primary winding (connected to power supply) and secondary winding (connected to end‑user loads). For a three‑phase transformer, windings mount on core limbs with two common connection configurations: Y (star) and Delta (delta). Different connection setups deliver distinct voltage‑transformation ratios and phase relationships. Dry‑type three‑phase transformer products use high‑grade epoxy insulation for winding protection.

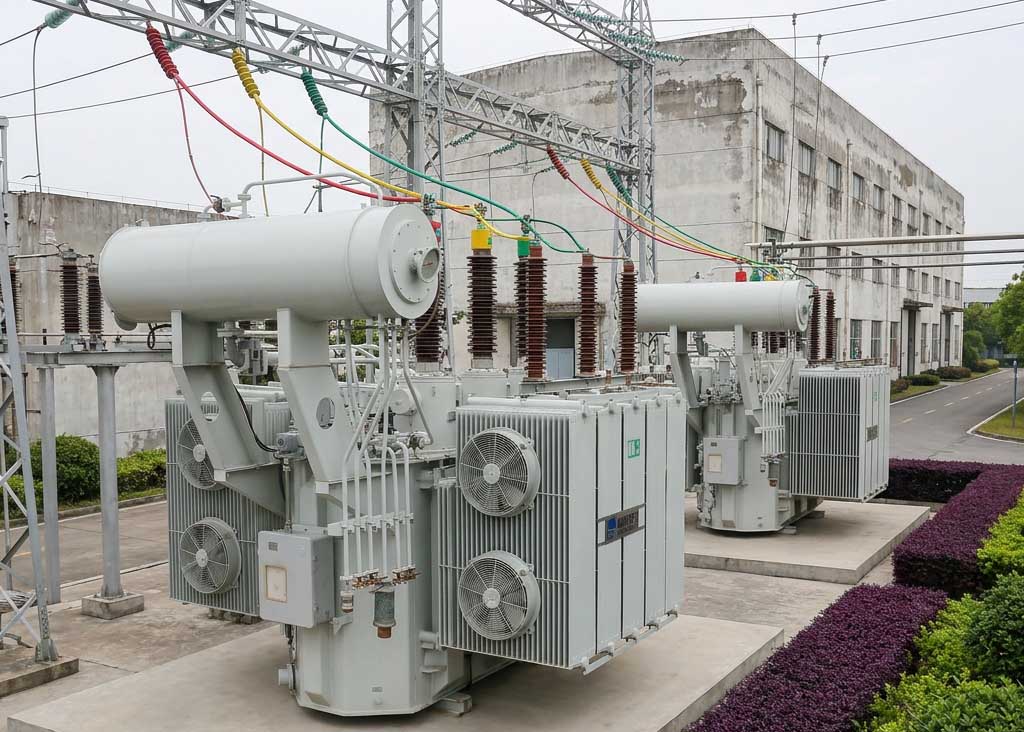

Tank and Auxiliary Accessories

(This section mainly applies to oil‑immersed three‑phase transformer models.)

• Tank: Fabricated from welded steel plates, it holds transformer insulation oil, providing insulation and heat dissipation for windings and iron core.

• Transformer oil: Provides insulation between windings and core; transfers operational heat to tank walls and radiators for ambient heat release.

• Oil conservator (oil pillow): Mounted on tank top, compensates oil‑volume expansion or contraction caused by temperature fluctuation and maintains proper oil level.

• Radiator: Tube‑or‑fin‑style assemblies enlarge heat‑exchange surface and accelerate cooling for transformer oil.

• Tap changer: Adjusts winding turn counts to modify transformer ratio and stabilize output voltage under fluctuating grid‑voltage or load conditions.

• Gas relay: Installed on piping between tank and oil conservator. It triggers alarms for minor internal faults and cuts power supply automatically during severe failures to safeguard the three‑phase transformer.

• Pressure‑release valve: Automatically vents excessive internal pressure to prevent explosion hazards.

Key Characteristics of a Three‑Phase Transformer

Advantages of Three‑Phase Transformer

• Lower overall cost: A three‑phase transformer shares one integrated iron‑core assembly, cutting raw‑material consumption, footprint, and manufacturing labor versus banks of single‑phase transformers.

• Compact, well‑balanced magnetic circuit: Interlinked three‑phase magnetic paths reduce magnetic resistance, lower excitation current and core loss, improving overall transformer efficiency and power factor.

• Stable three‑phase voltage balance: Delivers balanced AC output, preventing load malfunctions triggered by unbalanced three‑phase voltage.

• Robust operational reliability: Compact integrated mechanical construction withstands heavy mechanical and electromagnetic forces; fewer connection points reduce failure risks from poor contact or insulation ageing.

Disadvantages of Three‑Phase Transformer

• Complex maintenance & replacement: If one‑phase winding fails, the whole three‑phase transformer must be taken offline for repair or swap, leading to longer power‑outage durations compared with modular single‑phase‑transformer banks.

• Strict inter‑phase insulation requirements: Three‑phase windings sit on the same core column with limited spacing. Premium insulation materials and sophisticated structural design are mandatory to avoid inter‑phase short‑circuits, raising production complexity and insulation‑related expenses.

• Vulnerability to overvoltage events: Lightning surges and switching overvoltages may damage internal insulation. Overvoltage breakdown usually causes severe damage and difficult‑to‑repair failures for the three‑phase transformer.
