High Voltage vs Distribution Transformer: Key Differences for EPC Buyers

High voltage transformers and distribution transformers differ mainly in voltage level, application, and capacity. High voltage transformers are used in transmission systems to handle large amounts of power at voltages above 35kV, while distribution transformers operate below 35kV and deliver electricity directly to end users. EPC buyers should choose based on project stage, load demand, and system requirements.

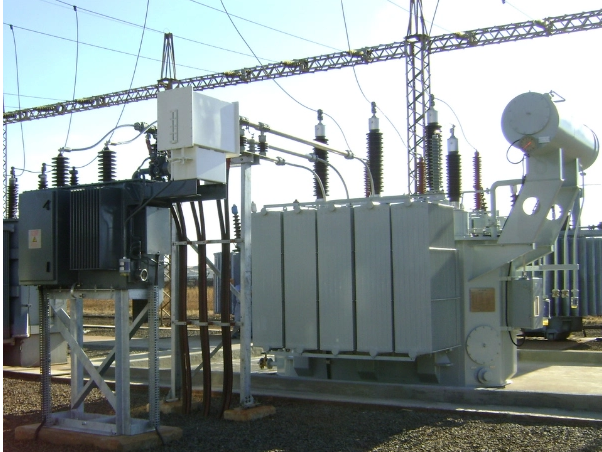

What is a High Voltage Transformer?

A high voltage transformer is designed to operate at transmission-level voltages, typically above 35kV and often reaching 110kV, 220kV, or higher.

Key Features:

• Used in transmission networks and large-scale substations

• Handles bulk power transfer over long distances

• Designed for high efficiency under full-load conditions

• Requires advanced insulation and cooling systems

Typical Applications:

• Power generation plants

• Grid transmission substations

• Large industrial facilities

What is a Distribution Transformer?

A distribution transformer is used to step down voltage to levels suitable for end users, typically below 35kV (e.g., 33kV/11kV/0.4kV).

Key Features:

• Installed near consumption points

• Optimized for energy efficiency at varying loads

• Lower capacity compared to high voltage transformers

• Simpler design and easier maintenance

Typical Applications:

• Residential and commercial areas

• Small and medium industrial plants

• Urban and rural power distribution networks

Key Differences Between High Voltage and Distribution Transformers

1. Voltage Level and Capacity

EPC buyers must look closely at the MVA (Mega Volt-Ampere) ratings and insulation levels.

EPC contractors must align transformer selection with the project stage (transmission vs distribution).

2. Load Characteristics and Efficiency

This is where the financial impact on an EPC project becomes apparent.

• Maximum Efficiency: High voltage transformers are designed to operate at maximum efficiency near full load (around 80-90%), as they run continuously at high capacity.

• All-Day Efficiency: Distribution transformers rarely run at full load. They are designed for "all-day efficiency," meaning they are optimized to have low core losses (iron losses) because they are energized 24/7, even when the consumer load is low.

3. Design and Construction

• High Voltage Transformers:

  • Complex insulation systems

  • Advanced cooling methods (ONAF, OFAF, etc.)

  • Larger physical size

• Distribution Transformers:

  • Simpler construction

  • Air or oil natural cooling (ONAN)

  • Compact design

7. Cost Considerations

• High Voltage Transformers: High initial investment but essential for grid infrastructure

• Distribution Transformers: Lower unit cost but required in larger quantities

How EPC Buyers Should Choose

When selecting between high voltage and distribution transformers, EPC contractors should evaluate:

Project Type

• Transmission projects → High voltage transformers

• Distribution projects → Distribution transformers

Load Demand

• Large industrial loads → High voltage

• Local consumption → Distribution

Budget and Lifecycle Cost

Consider not only procurement cost but also:

• Energy efficiency

• Maintenance requirements

• Expected lifespan

Standards and Compliance

Ensure the transformer meets international standards such as:

• IEC

• ANSI/IEEE

Conclusion

Understanding the differences between high voltage and distribution transformers is essential for EPC buyers aiming to optimize project performance and cost efficiency.

Selecting the right transformer type based on voltage level, application, and load requirements will ensure reliable power delivery and long-term operational success.
