Amorphous alloy transformers, with their ultra-low losses and high energy efficiency, have emerged as revolutionary replacements for traditional silicon steel transformers. This article explores their technical principles, advantages, applications, and policy-driven adoption to guide informed decision-making.
u The core uses iron-based amorphous metal ribbons (0.02-0.04mm thick) formed via ultra-rapid cooling. Their disordered atomic structure (glass-like) eliminates grain boundary losses, improving magnetization efficiency by 40-60% over silicon steel.
u Core: Three-phase five-limb design reduces third harmonics and enhances short-circuit resistance by 30%.

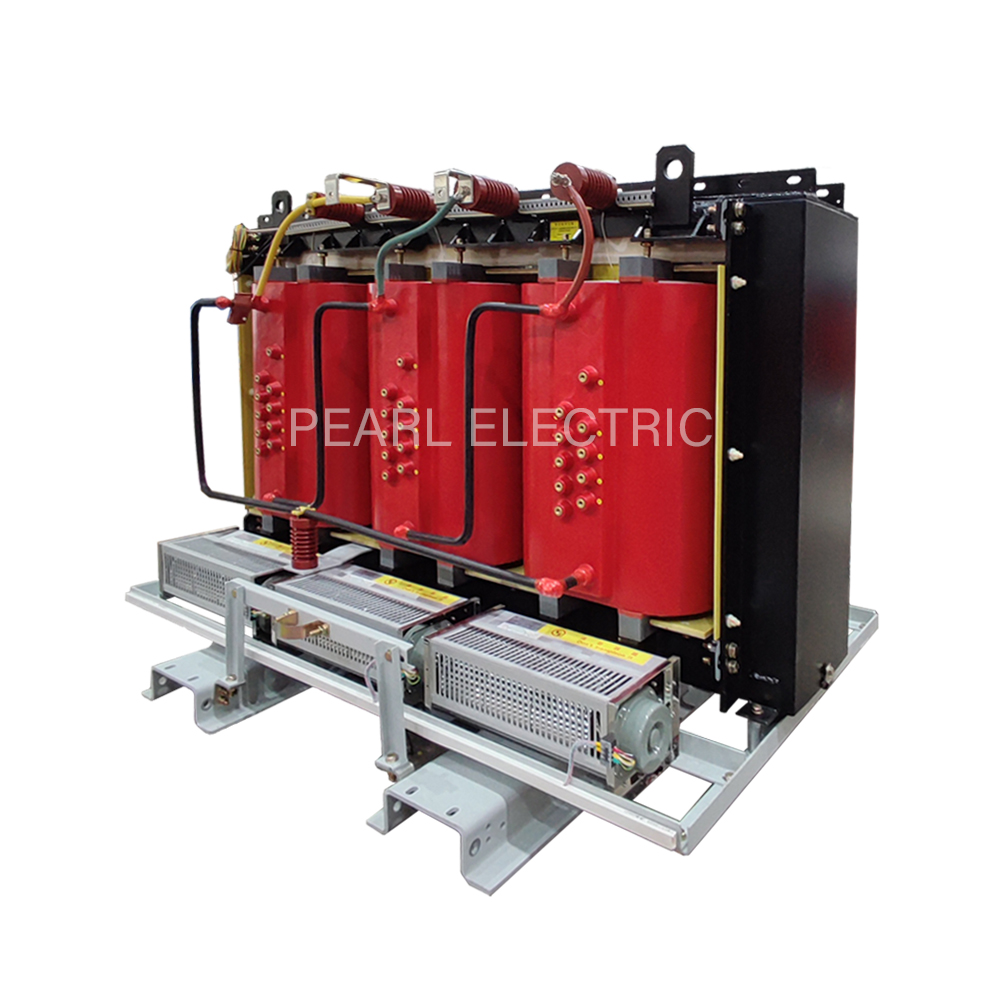

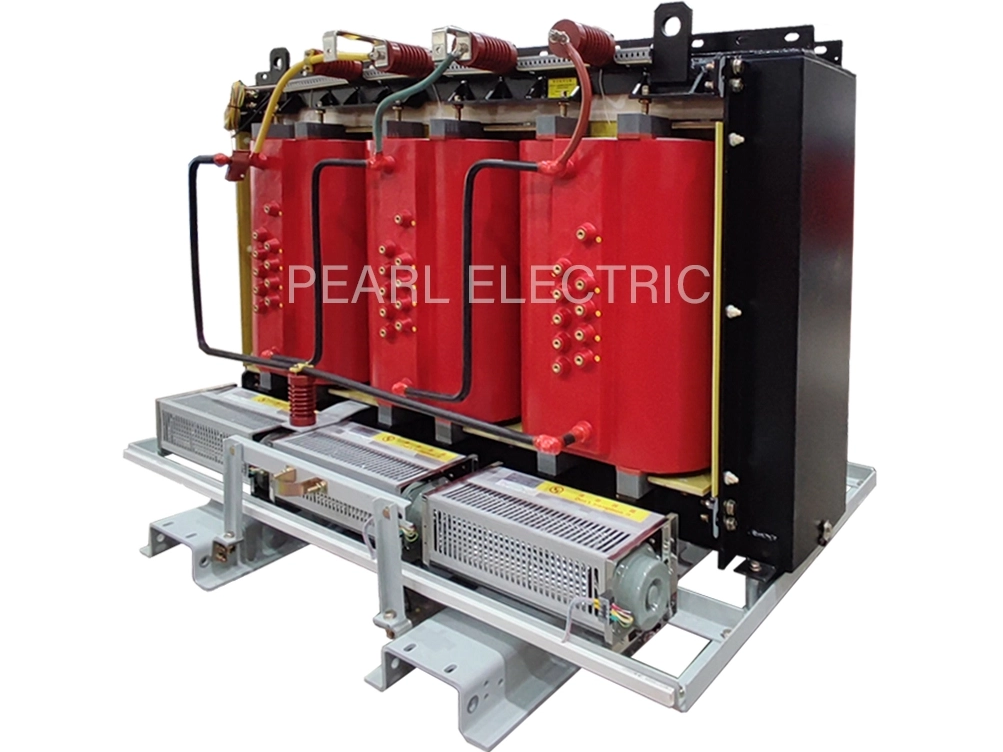

u Windings: Epoxy resin vacuum casting (Class H insulation, 180°C rating), resistant to humidity, salt spray, and mold.
u Cooling: Sealed corrugated tank with natural (AN) or forced air cooling (AF), supporting 150% overload capacity.
l 70-80% lower no-load loss: Amorphous alloy’s resistivity is 3-6x higher than silicon steel. Example: 10kV/400kVA amorphous transformer no-load loss = 215W vs. 570W for silicon steel.
l Lower TCO: Despite 30% higher upfront cost, annual energy savings of $7,000+ yield a 3-5 year payback.
l CO₂ reduction: 5-8 tons/year per unit; SO₂ reduced by 0.1 tons.
l Sustainable lifecycle: 1L oil saved per kg of alloy produced; 100% recyclable cores.
l Harmonic tolerance: SCRBH15 models operate stably under THD ≤5% (ideal for PV inverters/VFDs).
l Robust protection: IP23-rated for -40°C to +45°C, 100% humidity.
l Slow insulation aging: 1/3 the degradation rate of silicon steel.
l Oil-free design: Eliminates leaks; IoT temperature monitoring.
l Mandatory phase-out: China to retire S7 transformers by 2025; ≥80% market share for high-efficiency models.
l Subsidies: 10% rebates for Class 1 efficiency models in multiple provinces.
l Solar/wind step-up: Ningxia’s 2GW solar farm saves ¥1.2M/year via
l reduced nighttime no-load losses.
l Energy storage: Withstands frequent charge/discharge cycles.
l Commercial hubs: Shanghai mall achieves 18% efficiency gain with SCBH15 transformers.
l Metro systems: Guangzhou Line 18 uses flameproof amorphous dry-types for underground safety.
l Steel mills: Supports arc furnace load spikes, saving ¥500,000/year.
l Oil refineries: Explosion-proof models ensure 5+ years of fault-free operation in Xinjiang.
l Smart monitoring: DGA online systems (≥95% fault prediction accuracy).
Material breakthroughs: Nanocrystalline cores to cut losses by 30% (commercial by 2025).
(1) Match load profiles: Prioritize amorphous for low-load scenarios (EV charging); silicon steel for high-load (data centers).
(2) Calculate TCO: Amorphous offers 25-30% lower 20-year costs (purchase + energy + maintenance).
(3) Verify certifications: Demand CTI/STL test reports for temperature rise and short-circuit tests.
Conclusion
Amorphous alloy transformers lead the market with energy savings, sustainability, and reliability, driving grid modernization and industrial upgrades. Their global market share is projected to grow from 26.8% (2023) to 35% by 2026. Align selections with load patterns and subsidies to maximize ROI.
(Request a customized amorphous transformer solution or TCO calculator here.)
