Guardian of Offshore Wind Power: Core Technologies & Evolution of Wind Turbine Nacelle Transformers

Views: 0     Author: Site Editor     Publish Time: 2025-06-26      Origin: Site

Inquire

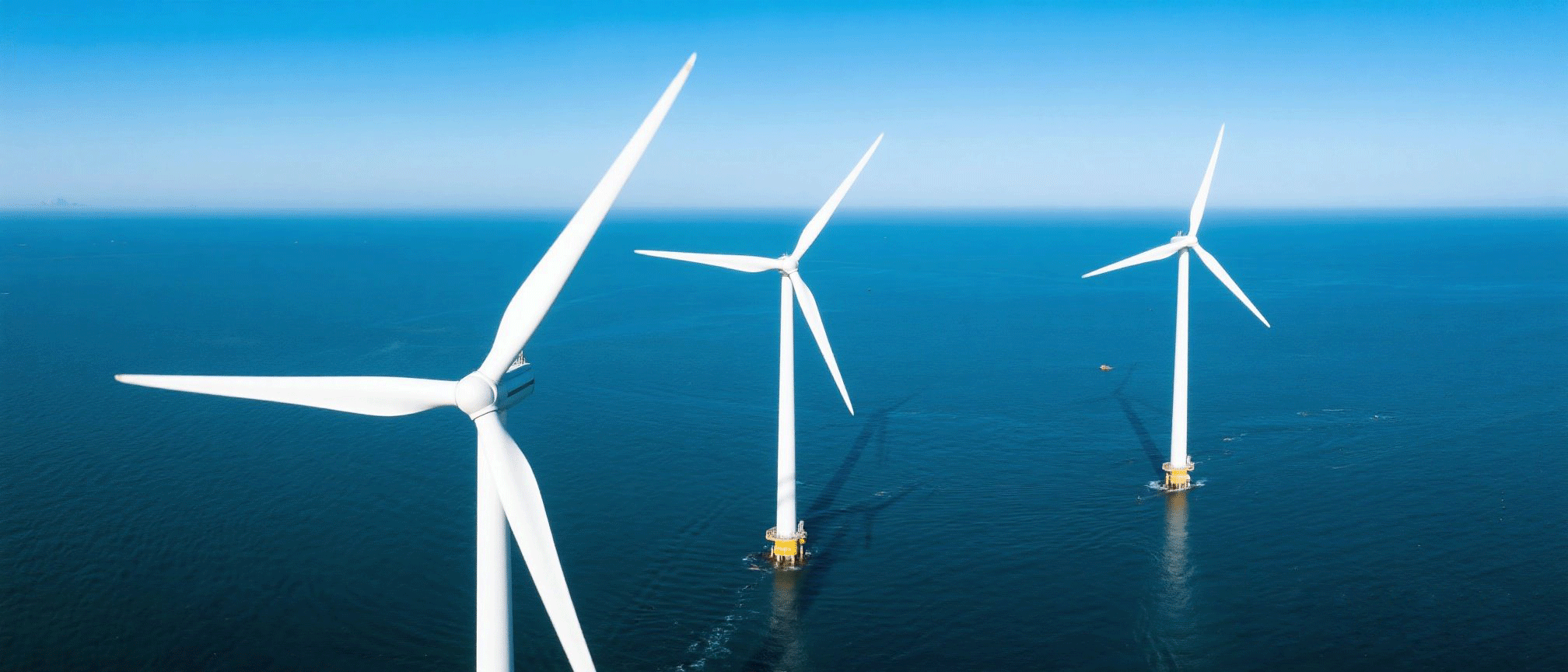

jimeng-2025-06-26-7398-三台硕大的风力发电机组在海上,占据画面的4分之3,天空湛蓝

—How High-Corrosion-Resistant, Vibration-Proof, Large-Capacity Nacelle Transformers Drive Cost Efficiency in Deep-Water Wind Farms

Offshore wind farms are rapidly advancing toward deep-water deployment and mega-capacity. As the core power conversion unit of wind turbines, nacelle transformers directly determine power transmission efficiency and system reliability. Facing harsh challenges like salt spray, extreme vibration, and space constraints, next-gen nacelle transformers are becoming key enablers for cost reduction through material innovation and structural breakthroughs. This article analyzes core technologies, global innovations, and selection criteria.


I. Nacelle Transformers: The "Heart" of Offshore Wind Systems & Technical Challenges

Installed inside turbine towers or nacelles, nacelle transformers boost generator output (e.g., 690V/1140V) to collection voltages (35kV/66kV/110kV), slashing transmission losses. They operate in one of the harshest environments for power equipment:

Five Core Challenges & Solutions:

  1. Salt Spray Corrosion → C4/C5 Anti-Corrosion Tech

    • Rounded tank edges + marine-grade coatings (e.g., CEE products achieve C4 rating, 25+ year lifespan)

    • Fully encapsulated dry-type transformers (66kV models reach C5VH rating)

  2. Low-Frequency Vibration → Vibration-Proof Design

    • Integrated internal frame + flexible connections (avoids resonance)

    • Core base vibration dampers (7dB noise reduction)

  3. Extreme Space Limits → Compact & Lightweight

    • Oval core cross-section (shortens magnetic path, 8% weight reduction)

    • E-field optimized insulation (17MVA/66kV units fit 14MW turbine nacelles)

  4. High Temp/Humidity → Class H Insulation + Smart Cooling

    • Dry-type: Class F/H epoxy casting (155-180°C rating)

    • Oil-immersed: Synthetic ester oil (fire point >300°C, biodegradable)

  5. Remote Maintenance → 30-Year Maintenance-Free

    • Hermetic tank (no conservator, corrugated expansion panels)

    • Integrated DGA/temperature monitoring (110kV models support remote diagnostics)


II. Technology Routes: Oil-Immersed vs. Dry-Type vs. Vegetable Oil

Type Advantages Limitations Applications
Oil-Immersed High capacity (≤20MVA), low cost Leak risk, fire concerns Fixed turbines, floating substations
(Synthetic ester) Eco-friendly, high fire resistance High viscosity at low temps
Dry-Type Fireproof (F1), maintenance-free Capacity limit (≤18MVA), noise Floating turbines, sealed towers
(Epoxy resin) Compact size 30% higher cost
Vegetable Oil Fire point >350°C, fully green Ultra-high cost, niche tech High-risk deep-water projects
(Emerging) Implemented in 110kV models Limited to top manufacturers

Selection Guide:

  • Fixed Nearshore: Oil-immersed (66kV/20MVA)

  • Floating/High-OPEX: Dry-type (e.g., Hitachi WindSTAR™ withstands 15m waves)

  • 16MW+ Turbines: 110kV direct-drive (15% loss reduction)


III. Global Innovations: From 66kV to 110kV

1. High-Voltage Direct Connection (66kV/110kV)

  • Reduces cable cross-section by 50%, cutting costs 30%+

2. Smart Monitoring & Digital Twins

  • Fiber-optic temperature sensing → 40% fewer failures

  • Multi-sensor real-time deformation/oil aging tracking

3. Lightweight & Modular Design

  • Split-tank for floating platform tilt installation

  • Built-in auxiliary transformers saving nacelle space

4. Advanced Materials

  • Amorphous cores (70% no-load loss reduction)

  • Nano-modified epoxy (50% higher crack resistance)

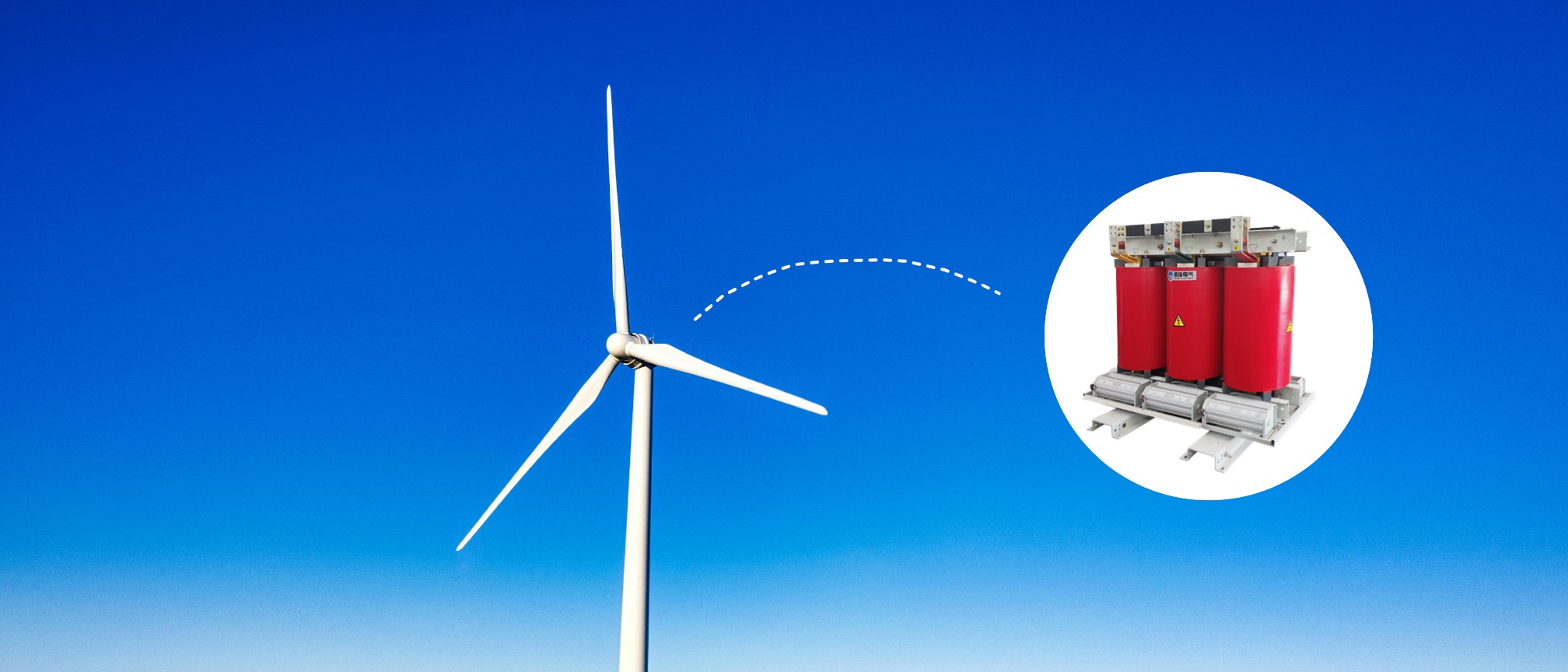

未命名


IV. Selection Guide: Key Specs & Certifications

1. Performance Metrics

  • Voltage: 35kV (phasing out) → 66kV (mainstream) → 110kV (future)

  • Capacity: ≥105% turbine rating (e.g., 17MVA for 16MW turbine)

  • Losses: <0.8W/kg no-load loss, <1.2% load loss (EU Tier 3)

2. Mandatory Certifications

  • EU: CE + EN 60076 + DNV-GL (floating)

  • North America: UL/CUL + IEEE C57.18

  • Asia/Mideast: ESMA (UAE), SNI (Indonesia), CQC (China)


Conclusion: The "Triple-High" Evolution

As offshore wind embraces High-voltage, High-capacity, High-reliability:

Voltage Leap: 66kV becomes standard; 110kV enables deep-water economics
Smart O&M: Digital twins + predictive maintenance
Green Shift: Synthetic/vegetable oils replace mineral oil

As China's leading HV transformer manufacturer, we offer:
 Full-scenario solutions: 35-110kV oil/dry-type for 8-20+MW turbines
 C5 anti-corrosion: Validated for South/North Sea extremes
 Smart monitoring: >95% fault prediction accuracy with DGA/vibration sensors
