As core components of power systems, generator step-up transformers (GSUs) and distribution transformers (DTs) differ fundamentally in function, design, and operation. This data-driven comparison empowers engineers and procurement teams to make informed decisions.
I. Core Functional Differences
Parameter | Generator Step-Up Transformer (GSU) | Distribution Transformer (DT) |
Primary Function | Steps up generator voltage (e.g., 15kV→400kV) | Steps down grid voltage (e.g., 33kV→400V) |
Installation Point | Between generator & transmission grid | Between distribution lines & end-users |
Load Profile | Near-constant full load (>90% capacity) | Highly variable (30-80% capacity) |
II. Design & Construction
1. Insulation & Cooling
GSUs:
Forced oil cooling (OFAF/OFWF) with N₂ sealing
BIL: ≥900kV (500kV class)
35kPa pressure surge relays
DTs:
ONAN oil cooling (≤10MVA) or cast resin (dry-type)
BIL: 150-750kV
Basic pressure relief valves
2. Electrical Specifications
Metric | GSU | DT |
Impedance (%) | 12-18% (fault current limiter) | 4-6% (voltage stability focus) |
Efficiency | >99.7% (full load) | 98-99.5% (partial-load optimized) |
Overload Capacity | 110% continuous | 150% short-term (2 hours) |
III. Operational Requirements
1. GSU Critical Features
Withstands 5-15% THD from thyristor exciters
Reinforced clamping against axial short-circuit forces
Case: China Three Gorges Dam GSU (840MVA, 550kV) with ±15% OLTC
2. DT Specialized Designs
Cyclic loading capability (e.g., 30% → 100% daily swing)
Hot-spot temp ≤120°C (vs. GSU’s 140°C)
Case: Shenzhen, Guangdong Metro DT (2.5MVA, Dyn11) achieves 99.3% efficiency at 50% load
IV. Key Applications
1. GSU Dominant Scenarios

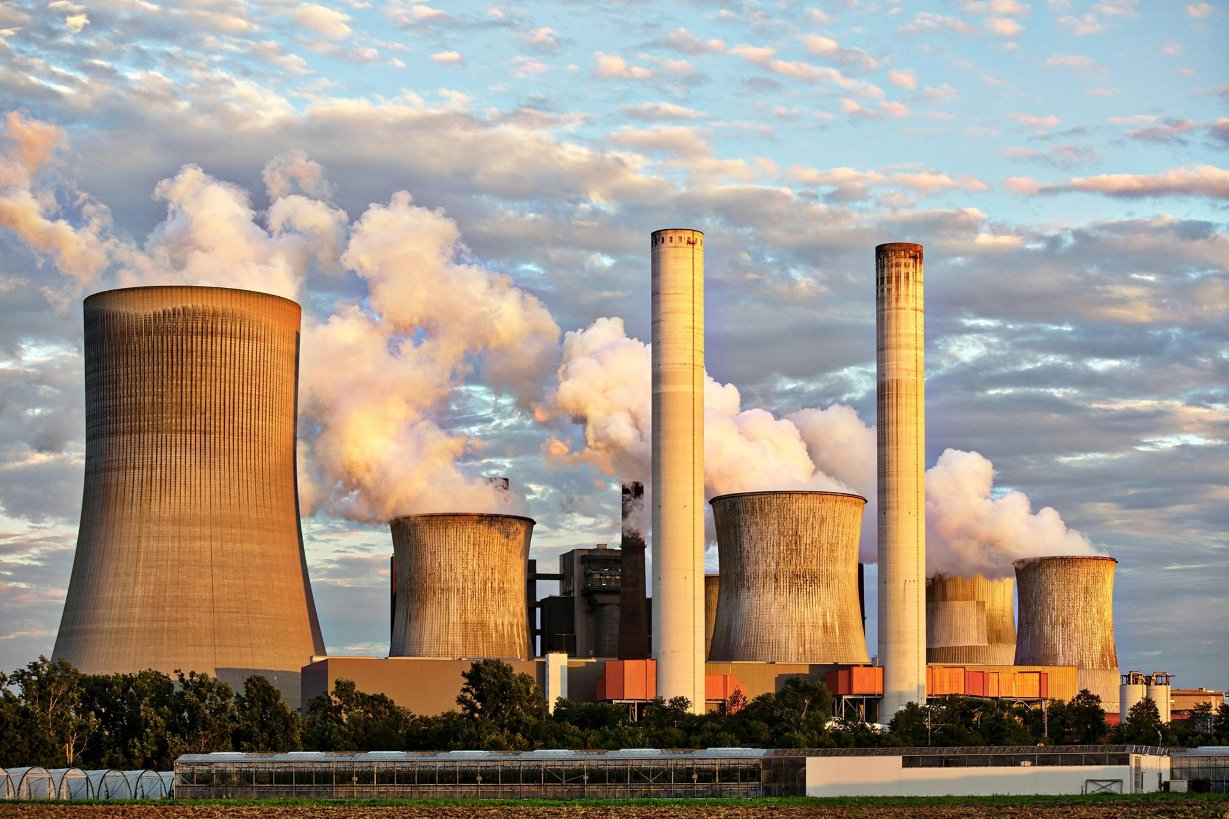

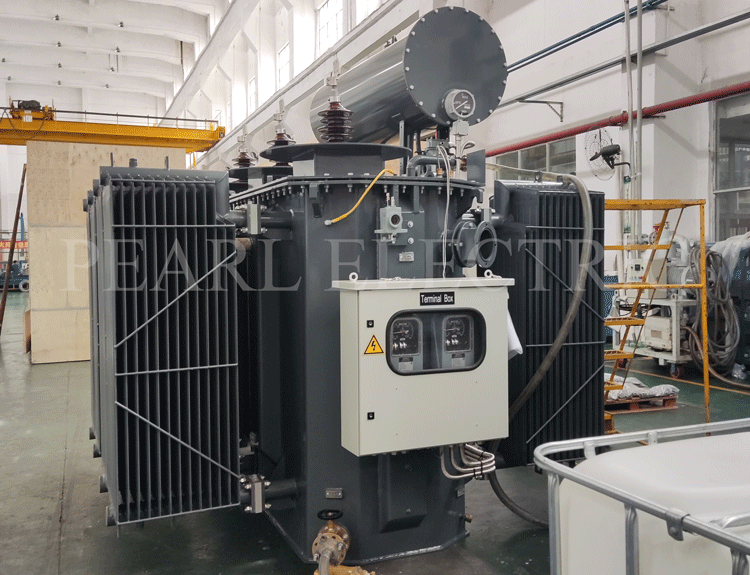

Thermal/nuclear plants: 800MVA+ units (e.g., "Hualong One's" 1200MVA GSU)
Hydropower stations: Vertical core designs
Offshore wind farms: 66/220kV corrosion-resistant units
2. DT Primary Installations
Urban grids: Pole-mounted 100kVA units (e.g., Beijing, China Power Grid)
Industrial parks: 10MVA cast-resin transformers for fabs

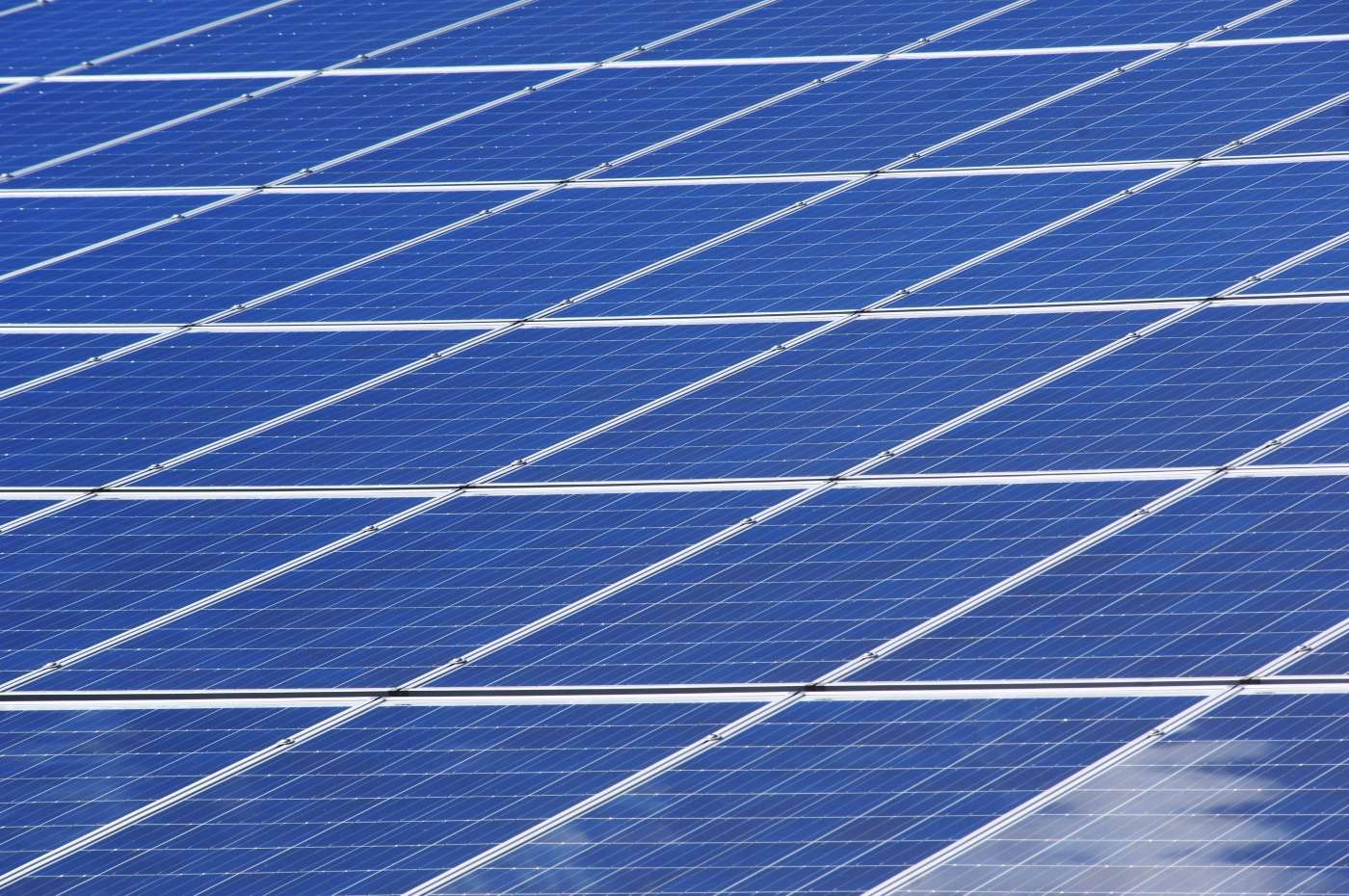

Solar farms: 33/0.8kV anti-theft pad-mounted units
V. Cost & Lifetime Analysis
Factor | GSU | DT |
Cost per kVA | $80,000-150,000 (500kV class) | $20,000-50,000 (11kV class) |
Design Life | 40+ years | 25-30 years |
Annual Maintenance | 3-5% of CAPEX | 1-2% of CAPEX |
Failure Impact | Grid collapse (~$1M/hour loss) | Local outage (hours) |
VI. Selection Guidelines
1. When to Choose GSUs
Voltage ratio > 1:10 (e.g., 15kV/400kV)
Fault current > 40kA
Requires OLTC with >±10% range
2. DT Priority Cases
Daily load variance > 50%
Space-constrained sites (e.g., underground substations)
Noise restrictions < 65dB(A)
VII. Industry Innovations
Smart GSUs: Fiber-optic DGA monitoring (e.g., ABB TXpert™)
Eco-DTs: Amorphous cores reducing no-load losses by 70%
Hybrid Wind GSUs: 66kV direct-drive units eliminating substation tiers
Conclusion：
GSUs serve as grid stability anchors for extreme conditions, while DTs act as adaptive power delivery units for fluctuating loads. Understanding these differences prevents costly specification errors.
