Why Is A Dry-type Transformer More Expensive Than An Oil-immersed Transformer?

A dry-type transformer and an oil-immersed transformer are two of the most widely used power transformer types in electrical distribution, but their upfront prices differ significantly. This article explains what a dry-type transformer and an oil-immersed transformer are, compares their features, and answers the key buyer question: why a dry-type transformer usually costs more than an oil-immersed transformer, so you can make the right long-term investment.

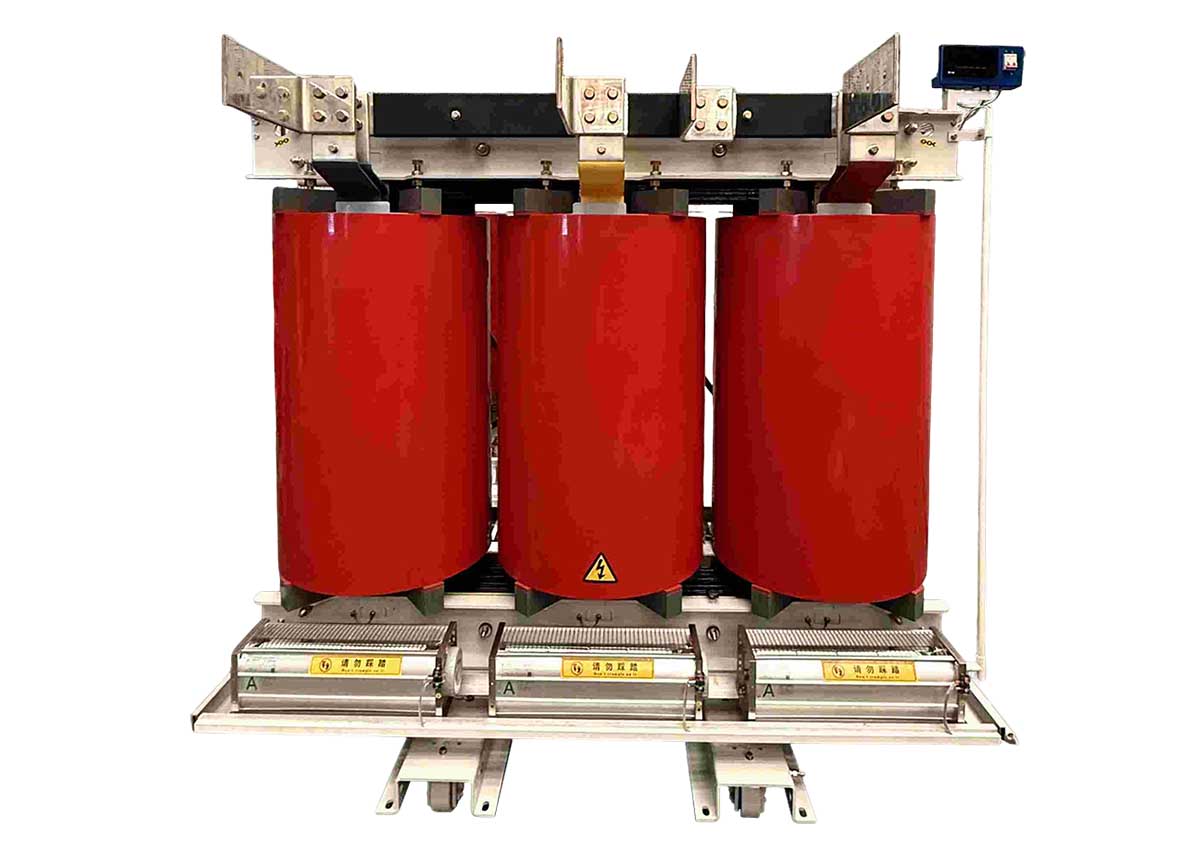

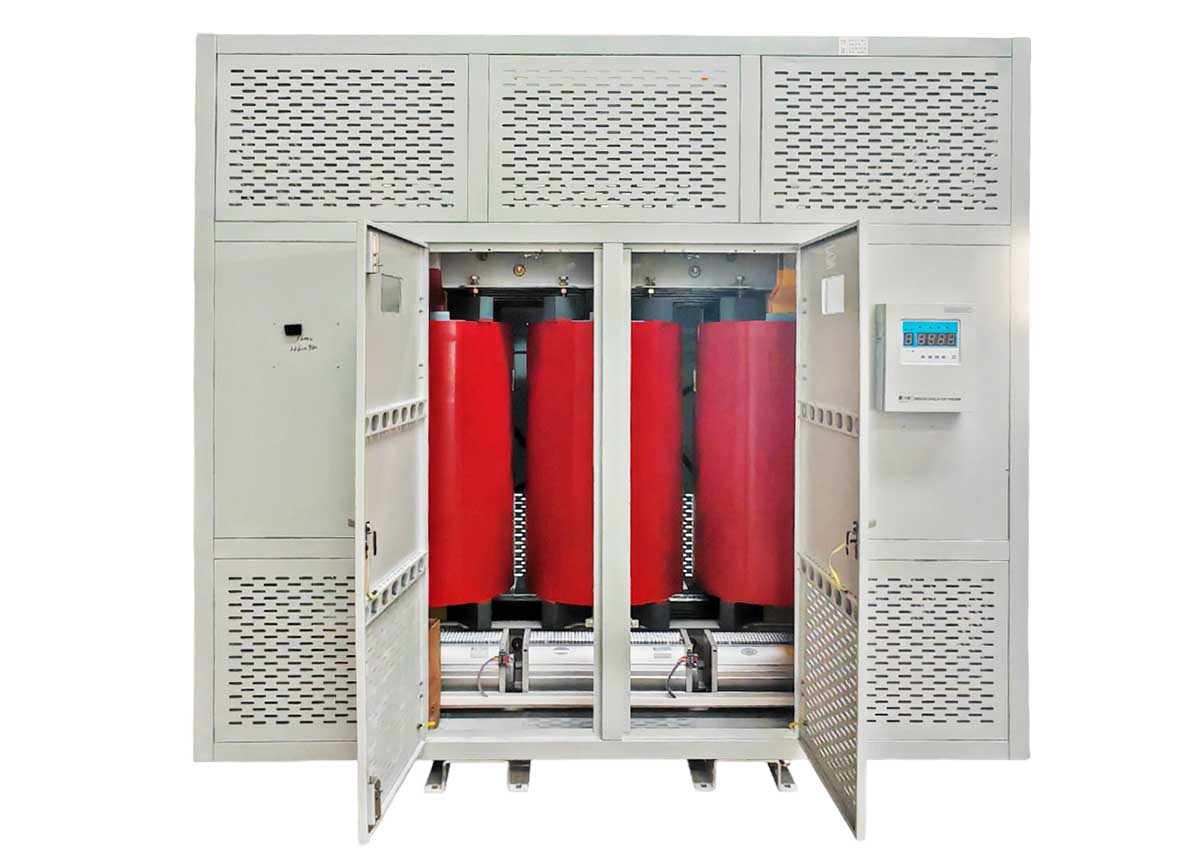

What Is a Dry-type Transformer?

A dry-type transformer is a type of electrical transformer that does not use oil as an insulating and cooling medium. It offers a combination of safety, environmental friendliness, and reliability, making it a preferred choice in many modern applications.

• Insulation: Instead of oil, a dry-type transformer utilizes solid insulating materials:

1. Epoxy resin: a strong, durable, fire-resistant material that encapsulates the windings.

2. Mica: a natural mineral with excellent insulating properties.

3. High-temperature wire: specially designed to withstand high temperatures without degradation.

• Cooling: A dry-type transformer relies on air or other non-flammable gases for cooling; advanced designs may include liquid cooling.

Key Advantages of a Dry-type Transformer:

• Enhanced Safety: eliminates the fire and explosion hazards associated with flammable oil.

• Superior Environmental Performance: no risk of oil spills.

• Greater Versatility: suitable for high fire-hazard, densely populated, and environmentally sensitive locations.

• Reduced Maintenance: generally requires less maintenance than oil-filled transformers.

Applications of a Dry-type Transformer:

• Industrial facilities: power distribution, motor control centers, process control systems.

• Commercial buildings: HVAC, lighting, and other electrical equipment.

• Data centers: critical power infrastructure, UPS systems, and server rooms.

• Renewable energy: solar and wind power installations.

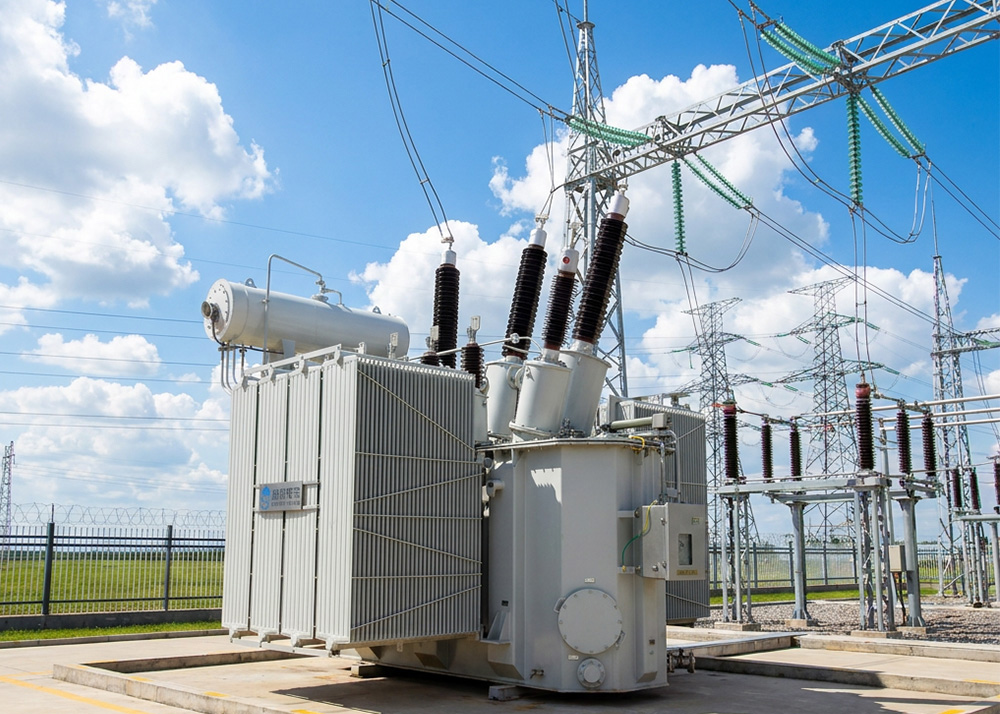

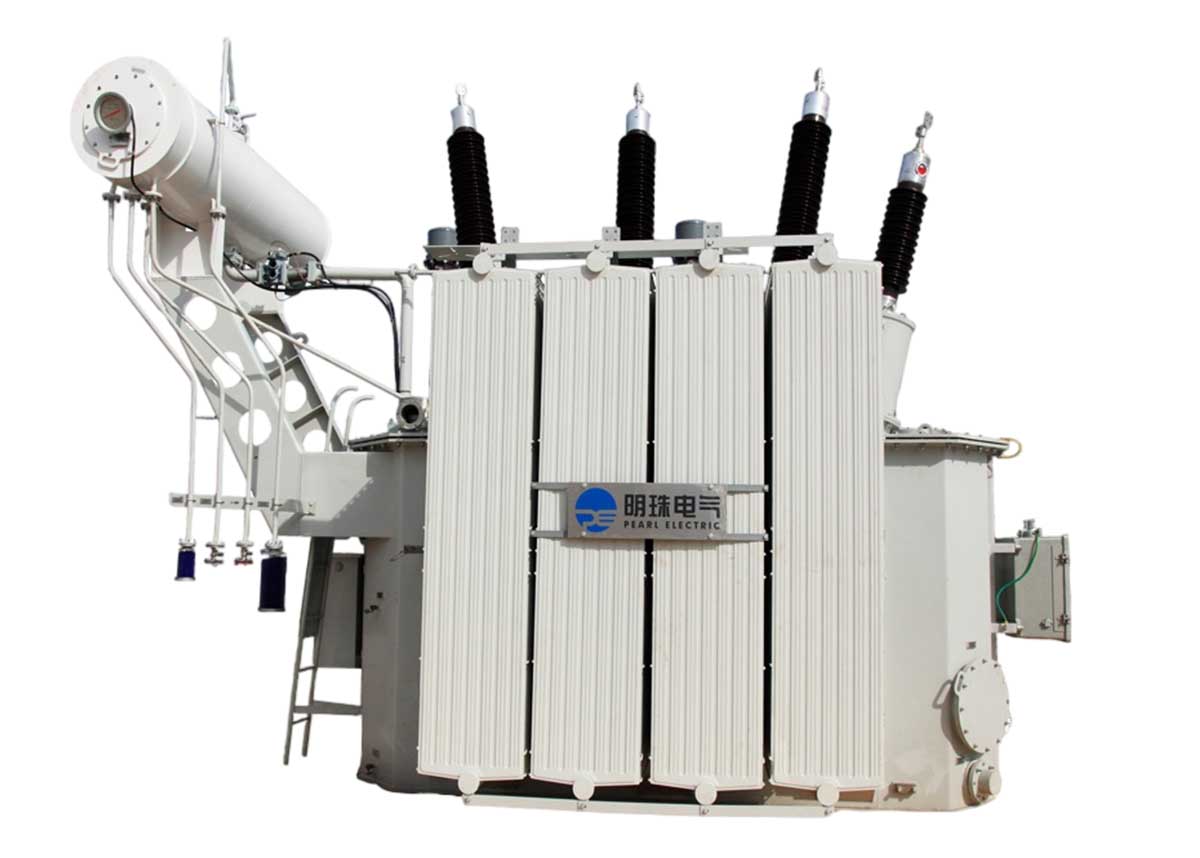

What Is an Oil-immersed Transformer?

An oil-immersed transformer is a type of electrical transformer that uses oil as both an insulating and cooling medium. It is a mature and cost-effective technology for many applications, though its use requires careful consideration of safety and environmental factors.

• Insulation: The windings and core are submerged in special oil, typically mineral oil, which provides excellent electrical insulation and prevents short circuits and arcing.

• Cooling: The oil circulates within the transformer, absorbing heat that is then dissipated through radiators or fans.


Key Advantages of an Oil-immersed Transformer:

• Efficient Cooling: highly efficient at dissipating heat, handling higher loads and temperatures.

• Cost-Effective: generally less expensive to manufacture than a dry-type transformer, especially at larger capacities.

• Mature Technology: a well-established, proven technology with a long, reliable track record.


Applications of an Oil-immersed Transformer:

• Power transmission and distribution: substations, grid connections, and long-distance power lines.

•  Industrial: heavy industries, manufacturing plants, and large commercial facilities.

• Utility: power generation plants and electrical distribution networks.




While highly effective, an oil-immersed transformer poses safety and environmental concerns: transformer oil is flammable (raising fire risk on fault) and oil spills can have significant environmental consequences.

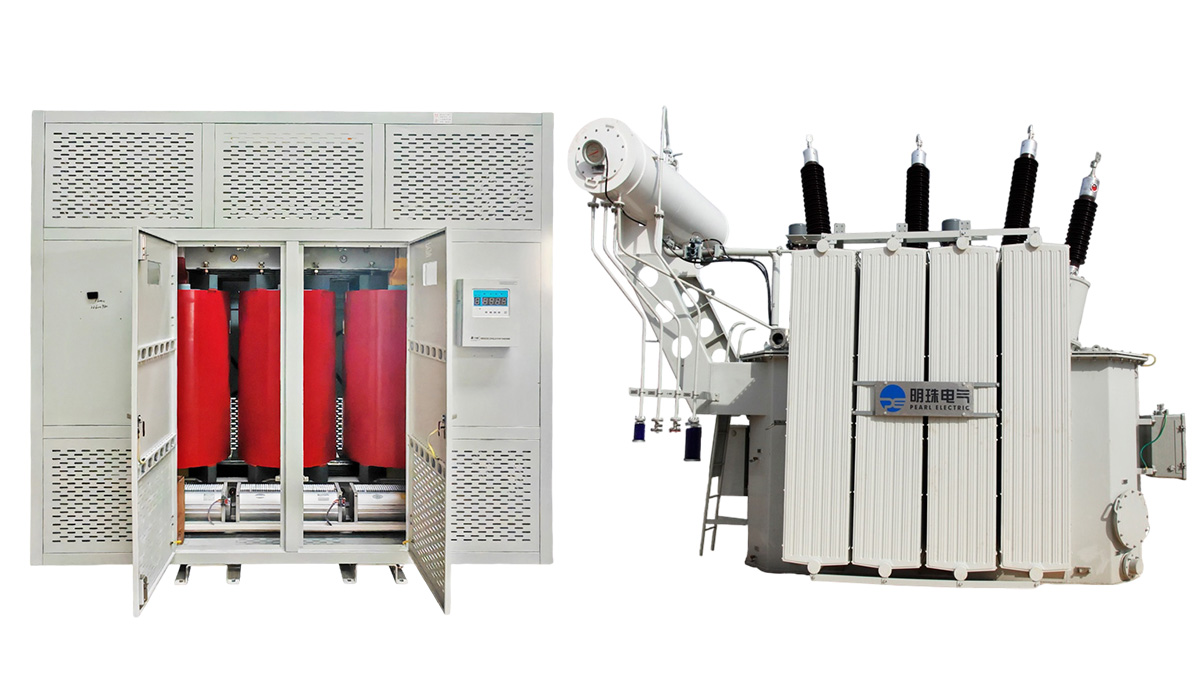

Why Is a Dry-type Transformer More Expensive Than an Oil-immersed Transformer?

A dry-type transformer, while offering significant advantages in safety and environmental friendliness, generally comes with a higher price tag compared to an oil-immersed transformer. This cost difference stems from several key factors:

Manufacturing Complexity

• Advanced Materials: epoxy resin, mica, and high-temperature wire are more expensive than the mineral oil used in an oil-immersed transformer.

• Complex Processes: vacuum pressure impregnation and precise resin casting require specialized equipment and skilled labor.

• Quality Control: stringent checks are needed to ensure insulation integrity in a dry-type transformer.




Enhanced Features and Performance

• Improved Safety: eliminating flammable-oil fire/explosion hazards comes at a premium.

• Environmental Performance: no oil-spill risk.

• Versatility: suitability for fire-hazard, dense, and sensitive locations adds value but also cost.


Design and Engineering

• Advanced Cooling: forced-air or liquid cooling systems increase initial investment.

• Compact Design: small footprint requires advanced engineering.

Limited Production Volume

• Lower demand than oil-immersed transformers means economies of scale are harder to achieve.




While the initial investment for a dry-type transformer may be higher, the long-term benefits often outweigh the increased cost: improved safety, environmental performance, reduced maintenance, and operational reliability. The price gap between a dry-type transformer and an oil-immersed transformer varies with size, voltage rating, cooling method, and features.
