What Is A Power Distribution Transformer And How Does It Function?

A power distribution transformer is an essential static electrical device designed to transfer electrical energy between two or more circuits through Faraday's law of electromagnetic induction. The fundamental function of a power distribution transformer is to convert alternating current (AC) voltages—stepping voltage up for long-distance transmission or stepping it down to safe levels for industrial, commercial, and residential consumption. Beyond voltage transformation, a power distribution transformer provides key operational capabilities, including current conversion, impedance matching, circuit isolation, and voltage regulation.

The primary structural architecture of a power distribution transformer consists of three core components:

• Primary Coil (Input Winding): Connected to the incoming AC power source to generate a magnetic field.

• Secondary Coil (Output Winding): Delivers the converted AC voltage to the connected load or electrical grid.

• Magnetic Iron Core: Provides a low-reluctance magnetic flux path between the primary and secondary windings.

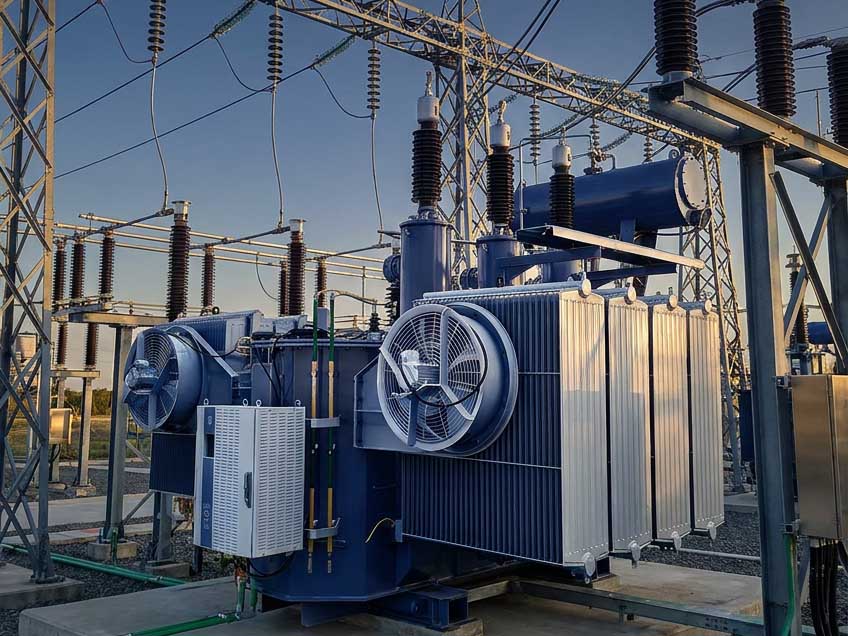

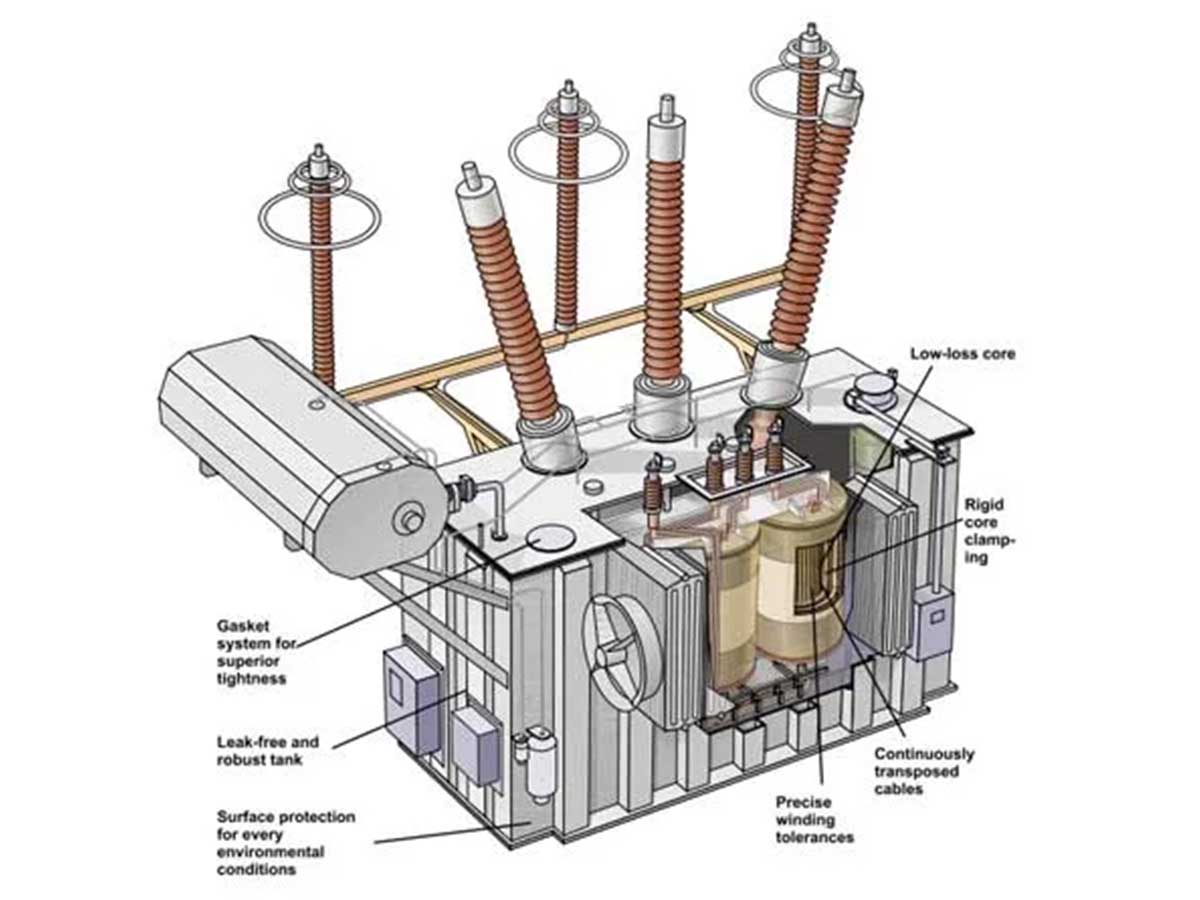

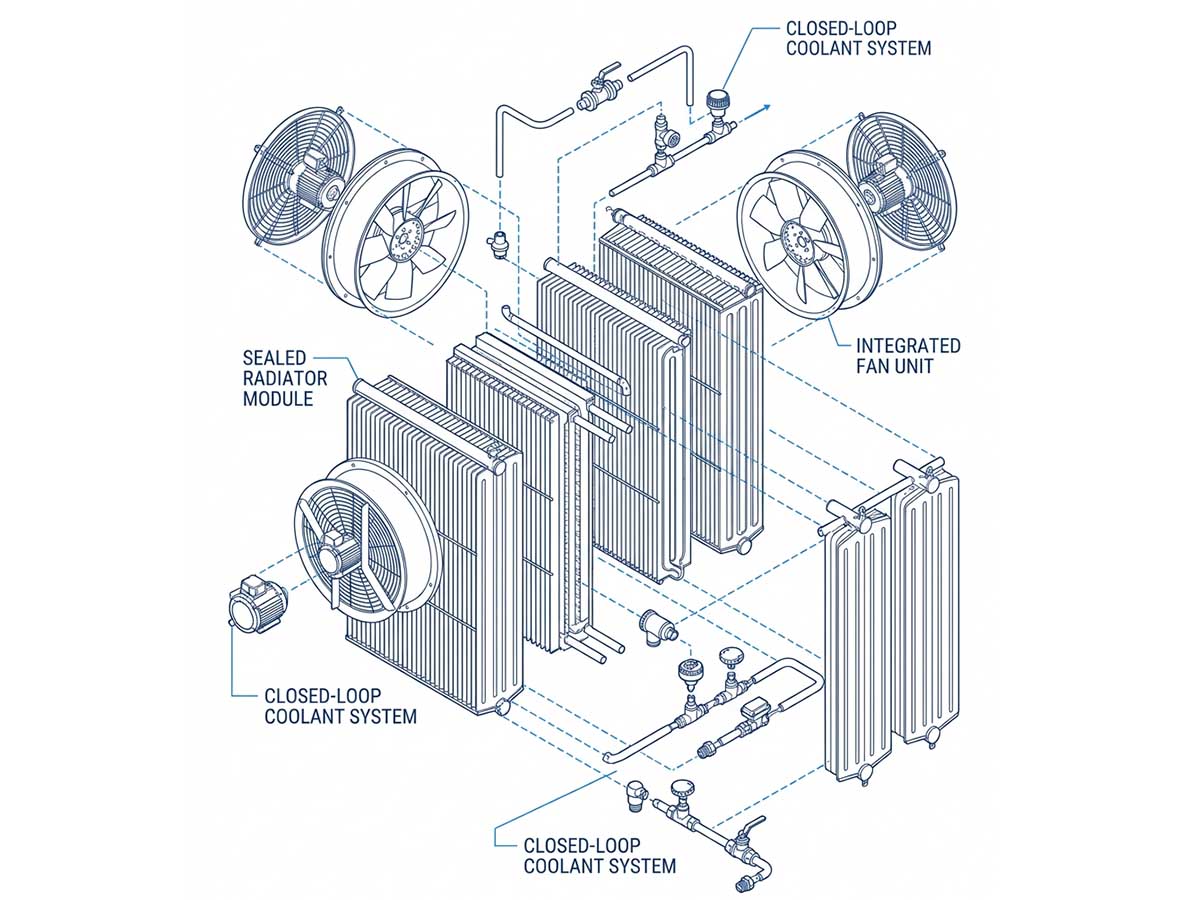

Core Construction and Structural Design of a Power Distribution Transformer

To ensure high energy efficiency and minimize magnetic field losses, the internal assembly of a power distribution transformer is engineered with precision materials:

• Laminated Silicon Steel Core: The iron core of a power distribution transformer is constructed by stacking thin, insulated silicon steel laminations (often formed in closed-ring, shell, or E-core geometry). This laminated structure significantly reduces internal eddy current losses and hysteretic heat dissipation while concentrating the alternating magnetic flux inside the magnetic circuit.

• Insulated Wire Windings: Both the primary coil and secondary coil are wound using insulated copper or aluminum conductors. The specific number of winding turns on each coil directly determines the input-to-output voltage step ratio.

• Frequency Preservation: During operation, a power distribution transformer modifies voltage and current magnitudes while maintaining the exact original frequency of the input alternating current.

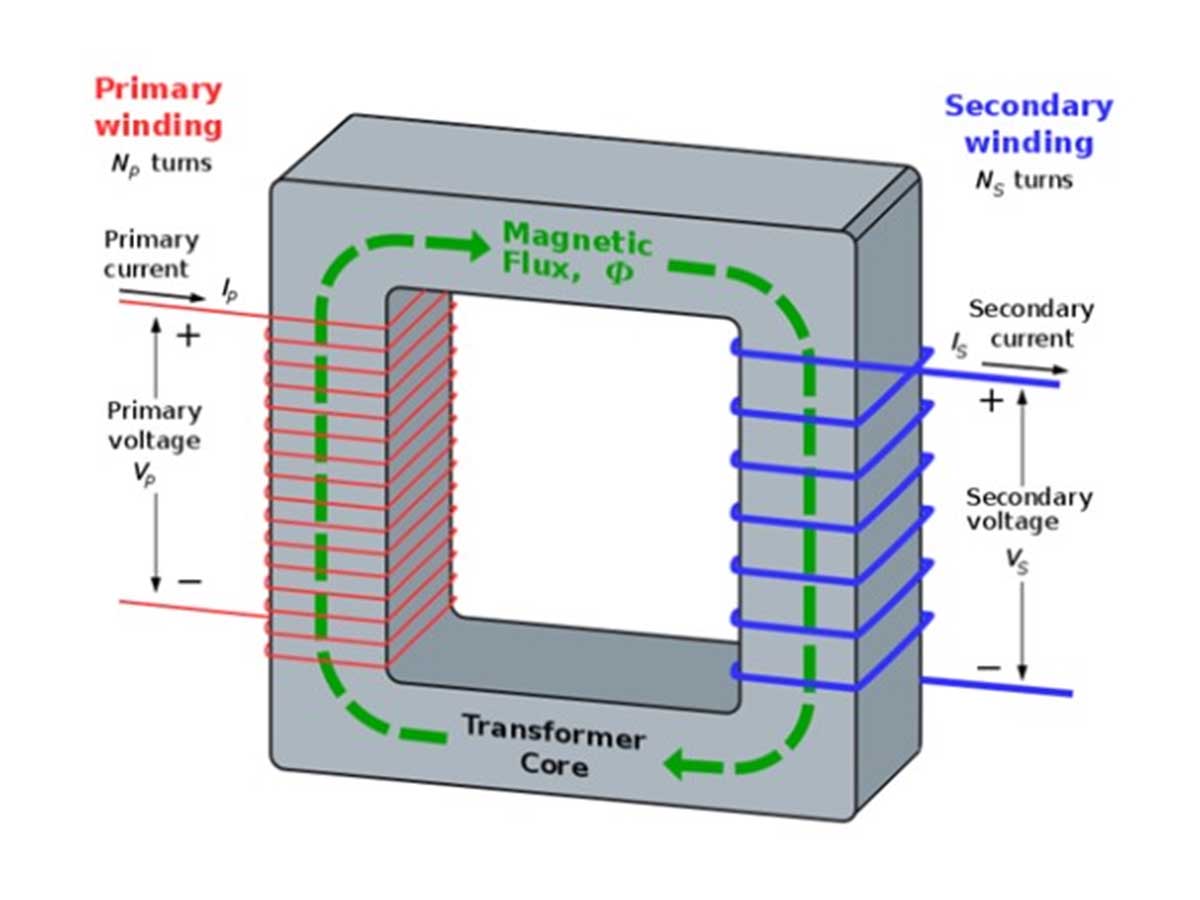

Working Principle: How a Power Distribution Transformer Changes Voltage

The fundamental operation of a power distribution transformer relies entirely on dynamic electromagnetic induction:

Alternating Magnetic Field Generation

When an alternating current (AC) supply is connected to the primary coil of a power distribution transformer, it establishes a continuously fluctuating magnetic field. Guided by the high magnetic permeability of the silicon steel core, these magnetic field lines pass efficiently through the secondary coil.

Electromotive Force (EMF) Induction

As the alternating magnetic flux links with the secondary coil, it induces an electromotive force (voltage) across the secondary terminals according to electromagnetic induction laws. When an external load is connected, an induced secondary current flows, enabling smooth electrical power transfer from the primary side to the secondary side.

The Turns Ratio Rule (Voltage Conversion Equation)

The exact output voltage produced by a power distribution transformer is directly determined by the turns ratio between the primary and secondary coils.

• Step-Down Transformation: If the secondary coil has fewer turns than the primary coil, the output voltage decreases (ideal for final power delivery to consumers).

• Step-Up Transformation: If the secondary coil has more turns than the primary coil, the output voltage increases (ideal for high-voltage power transmission).

Why Direct Current (DC) Cannot Be Used in a Power Distribution Transformer

A standard power distribution transformer requires alternating current (AC) to operate and cannot function with constant direct current (DC) for several fundamental reasons:

• Constant Magnetic Field Limitation: Connecting a constant DC voltage to the primary coil produces a steady, non-changing magnetic field inside the iron core. Because Faraday's law of induction requires a changing magnetic flux to induce voltage, a constant DC source produces zero continuous voltage output across the secondary coil.

• Fluctuating DC Exception: If a power distribution transformer receives a direct current of continuously varying magnitude, the fluctuating magnetic flux will induce a temporary voltage output in the secondary coil. However, steady-state DC power cannot achieve sustained, efficient electrical energy conversion or transmission.
