What Is A Pad-Mounted Transformer?

A pad-mounted transformer is a type of electrical substation that is designed to be installed on a concrete pad at ground level. This compact and self-contained unit is commonly used in residential, commercial, and industrial applications to distribute electrical power safely and reliably.

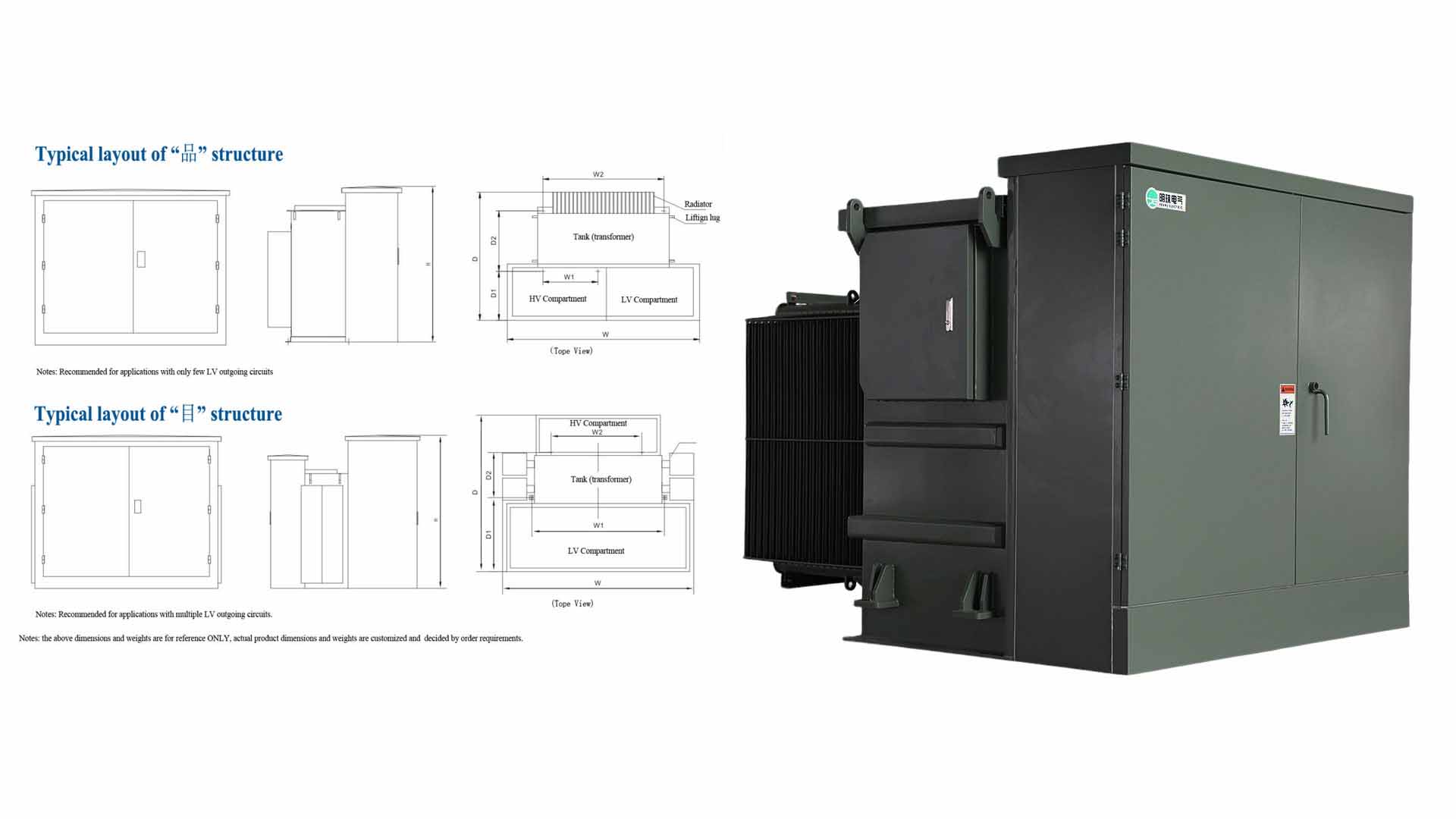

A combination transformer, also known as a pad-mounted transformer or a unit substation, is a compact electrical device that integrates multiple electrical components into a single, self-contained unit. These components typically include a transformer, circuit breakers, fuses, switches, and other protective devices. Because everything is preassembled in one weatherproof enclosure, a pad-mounted transformer dramatically simplifies installation, reduces on-site wiring, and lowers overall project cost compared with a traditional open substation.

Key Components and Structure of a Pad-Mounted Transformer

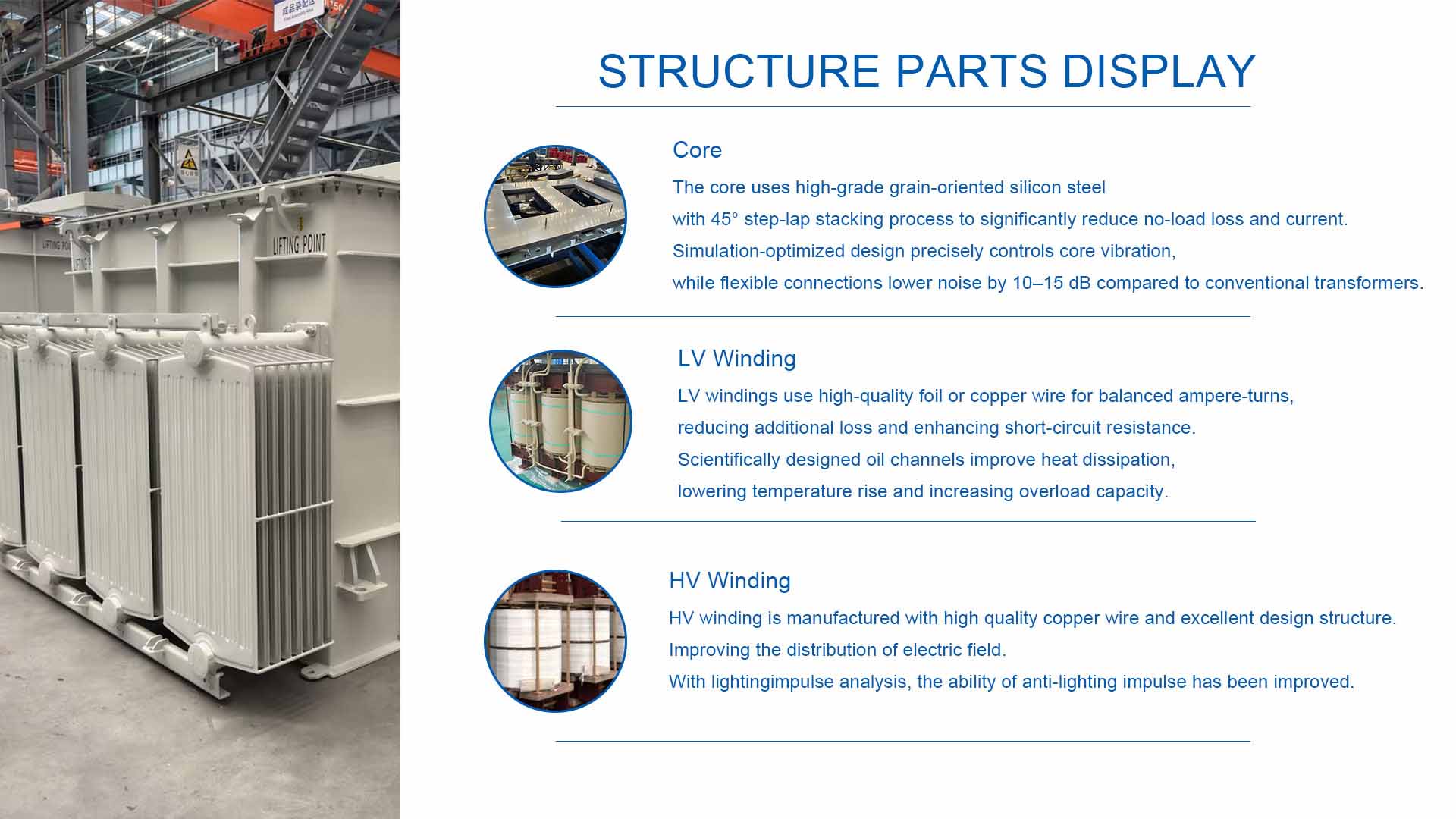

Understanding how a pad-mounted transformer is built helps you choose the right unit for your project. Every pad-mounted transformer contains the following core elements:

• Transformer: The primary component of a pad-mounted transformer that steps up or down voltage levels to match the supply and load requirements.

• Switchgear: High-voltage and low-voltage switchgear for controlling and protecting the electrical circuit inside a pad-mounted transformer.

• Enclosure: A weatherproof, tamper-resistant enclosure that houses all the components of a pad-mounted transformer and provides protection from weather, dust, and accidental contact.

• Busbars: Conductors that connect the various components within the pad-mounted transformer, carrying current between the transformer and the switchgear.

Because these parts are factory-assembled and tested before delivery, a pad-mounted transformer arrives on site ready to connect, speeding commissioning and minimizing the risk of wiring errors.

Advantages of a Pad-Mounted Transformer

A pad-mounted transformer is chosen for its combination of safety, efficiency, and ease of use. The key advantages include:

• Compactness: Combines multiple functions into a single unit, saving valuable ground space.

• Efficiency: Reduces energy losses due to shorter connections between components.

• Safety: Enclosures protect personnel from electrical hazards, making a pad-mounted transformer safer than open equipment.

• Reliability: Built-in protection devices enhance system reliability and reduce downtime.

• Ease of installation: Preassembled pad-mounted transformer units simplify installation and cut labor time.

• Aesthetics: A neat, compact enclosure blends better into residential and commercial surroundings than traditional substations.

These benefits make a pad-mounted transformer an ideal solution for utilities and developers who need reliable power distribution without the footprint or visual impact of a conventional substation.

Applications of a Pad-Mounted Transformer

A pad-mounted transformer is widely deployed wherever medium-voltage power needs to be stepped down to a usable low voltage. Typical applications include:

• Residential areas: Subdivisions and apartment complexes where a pad-mounted transformer sits at ground level, hidden behind landscaping or fenced areas.

• Commercial buildings: Offices and shopping centers that require reliable, compact power distribution.

• Industrial facilities: Factories and plants where the durability and safety of a pad-mounted transformer are valued.

• Utility substations: For distribution of electrical power across neighborhoods and business districts.

In each of these settings, a pad-mounted transformer delivers the same core function—safe voltage transformation and distribution—in a compact, ground-level format.

Types of Pad-Mounted Transformers

Not all pad-mounted transformers are the same. Based on where they are installed, they are classified into three main types:

• Indoor: Used in controlled environments like buildings and basements where weather protection is already provided.

• Outdoor: Designed for harsh weather conditions, with a durable weatherproof enclosure rated for rain, dust, and temperature extremes.

• Underground: Installed underground for aesthetic or safety reasons, used in high-density urban areas where surface space is limited.

Selecting the right type of pad-mounted transformer depends on your site conditions, clearance requirements, and local utility regulations.

Benefits of Using a Pad-Mounted Transformer

Beyond its core function, a pad-mounted transformer delivers tangible project and operational benefits:

• Reduced installation costs: Less labor and materials are required compared with building a traditional substation.

• Improved system reliability: Built-in protection devices minimize downtime and protect downstream equipment.

• Aesthetics: The compact and visually appealing design of a pad-mounted transformer reduces visual impact.

• Simplified maintenance: Ground-level access makes inspection and servicing easier and safer for crews.

Pad-Mounted Transformer vs Traditional Substations

To decide whether a pad-mounted transformer is right for your project, compare it directly with a traditional substation:

As the comparison shows, a pad-mounted transformer offers a more compact, lower-cost, and safer alternative for most distribution applications.

Pad-mounted transformers offer a practical and efficient solution for electrical distribution. Their compact design, ease of installation, and enhanced safety features make them a popular choice for various applications. By integrating multiple components into a single unit, a pad-mounted transformer streamlines the electrical distribution process and reduces overall system costs. Whether for a new residential subdivision, a commercial campus, or an industrial plant, choosing a quality pad-mounted transformer from a trusted manufacturer is key to long-term, reliable power distribution.
