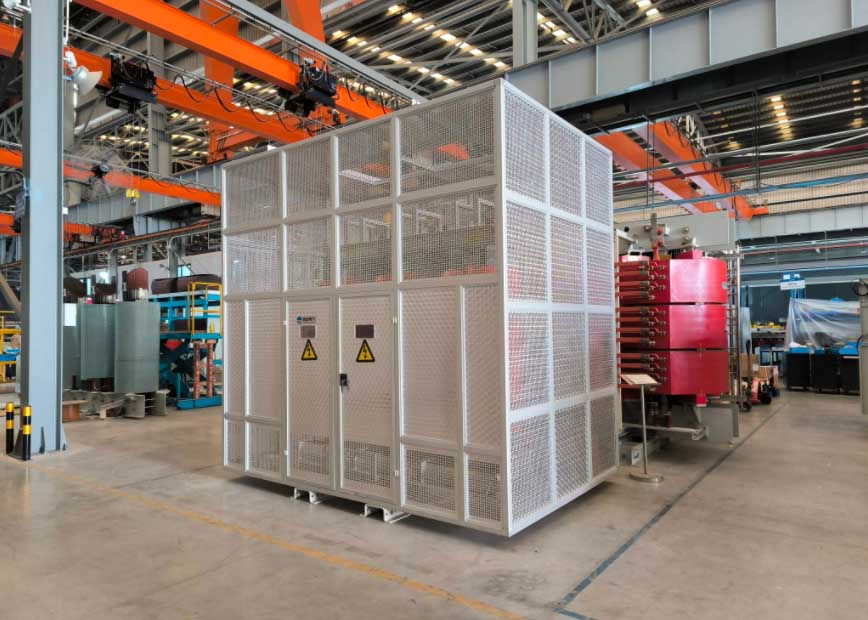

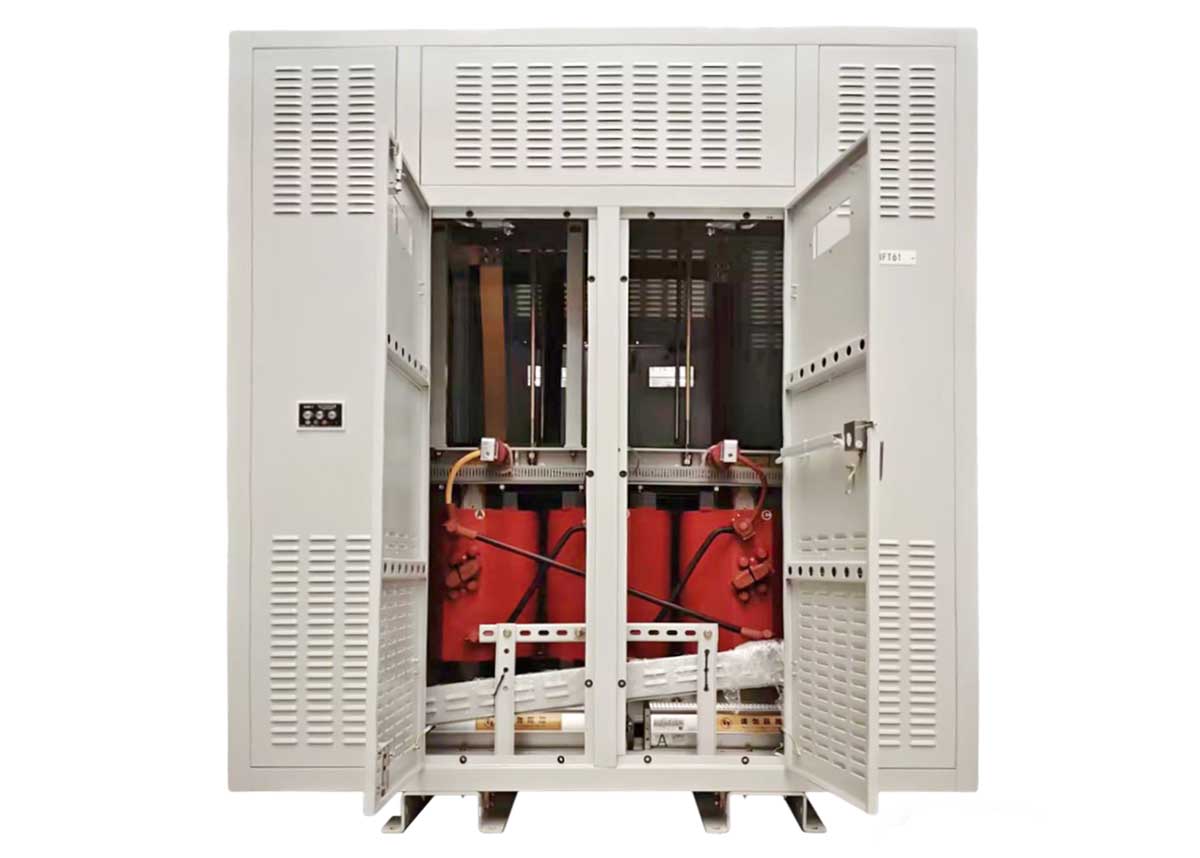

What Is A Cast Resin Rectifier Transformer?

A cast resin rectifier transformer is a specialized type of transformer designed to work in conjunction with rectifier circuits. It combines the functions of a transformer and a rectifier into a single unit, providing a more efficient and compact solution for power conversion. Unlike conventional transformers that only change voltage levels, a cast resin rectifier transformer is optimized to feed rectifier loads, such as diode or thyristor bridges, while withstanding the harmonics and non-sinusoidal currents that rectification produces.

How Does a Cast Resin Rectifier Transformer Work?

The operating principle of a cast resin rectifier transformer can be divided into two stages:

• Voltage Transformation: The transformer portion steps down high-voltage alternating current (AC) to a lower voltage level suitable for the rectifier stage.

• Rectification: The rectifier circuit, integrated within the transformer, converts the AC power into direct current (DC).

Because the windings of a cast resin rectifier transformer are resin-encapsulated, they withstand the heat generated by these harmonics far better than open-type windings, keeping the unit efficient and stable under continuous DC load.

Key Features and Advantages of a Cast Resin Rectifier Transformer

• Cast Resin Insulation: The entire transformer is encapsulated in a solid block of epoxy resin, offering excellent insulation (high dielectric strength, preventing electrical breakdowns), mechanical protection, and environmental resistance to moisture, dust, and contaminants.

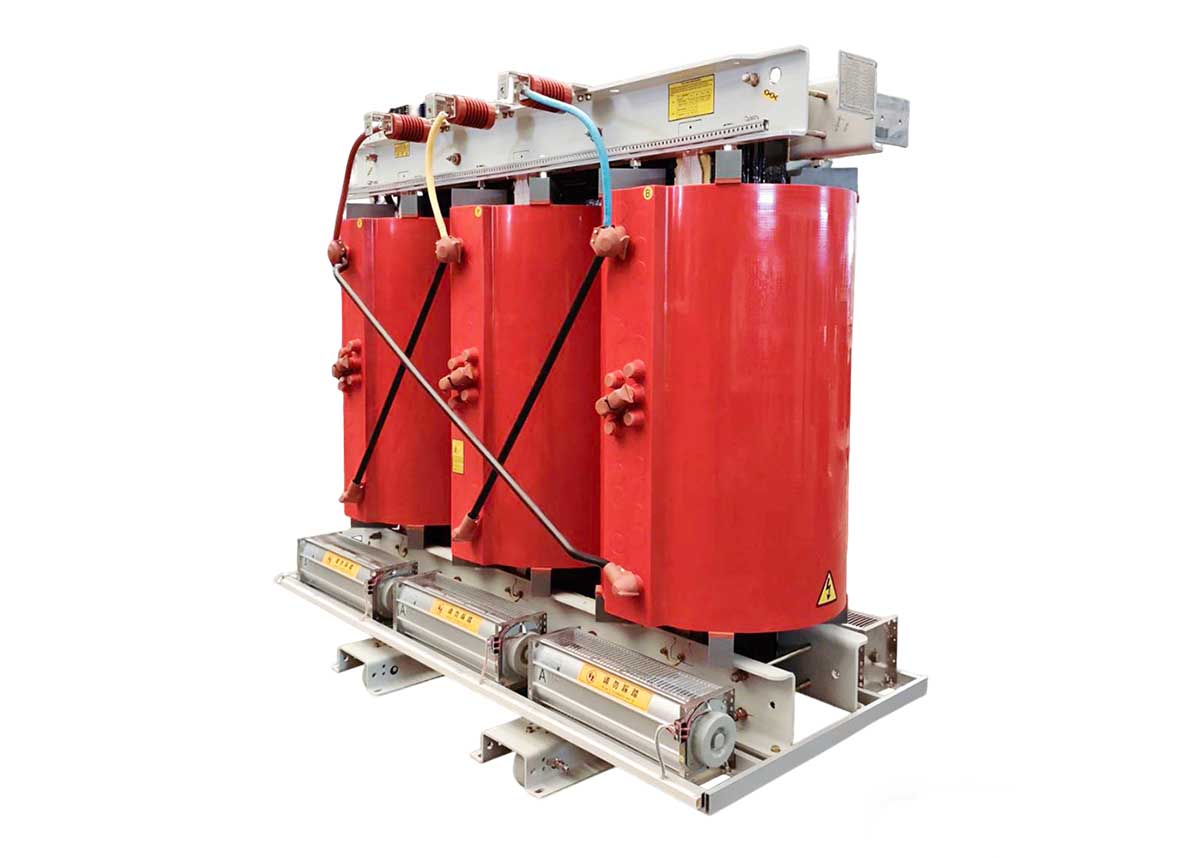

• Dry-type construction: Eliminates the use of oil as a coolant, reducing fire hazards and simplifying maintenance.

• Compact design: The resin casting allows for a smaller footprint, making it suitable for space-constrained applications.

• High efficiency: Low losses due to efficient heat dissipation.

• High reliability: Robust construction and excellent insulation ensure long service life.

• Safety: Fire-resistant and environmentally friendly.


These features make a cast resin rectifier transformer particularly suitable for indoor installation, high-rise buildings, offshore platforms, data centers, and other locations where oil leakage or fire risk cannot be tolerated.

Applications of a Cast Resin Rectifier Transformer

• Power Electronics: Variable Frequency Drives (VFDs) for motor speed control; Uninterruptible Power Supplies (UPS); solar and wind power inverters; electric vehicle charging stations.

• Industrial Applications: Electroplating; Electrolysis.

• Telecommunications: Power supply systems.


Whether it is feeding an electrolysis line, a VFD drive, or a renewable energy inverter, a cast resin rectifier transformer delivers the stable, clean DC supply that modern industrial and power-electronic systems depend on.

Cast Resin Rectifier Transformer vs Traditional Transformers

Advantages of a cast resin rectifier transformer over traditional transformers:

• Improved reliability: Resin encapsulation enhances insulation and protects against environmental factors.

• Reduced maintenance: No oil to maintain or replace.

• Smaller footprint: Compact design saves space.

• Higher efficiency: Lower losses result in energy savings.




Why Choose a Cast Resin Rectifier Transformer from Pearl Electric?

Cast resin rectifier transformers offer a compelling solution for power conversion applications. Their high efficiency, reliability, and safety make them an ideal choice for various industries. As technology advances, these cast resin rectifier transformers are expected to play an even more significant role in the future of power electronics.

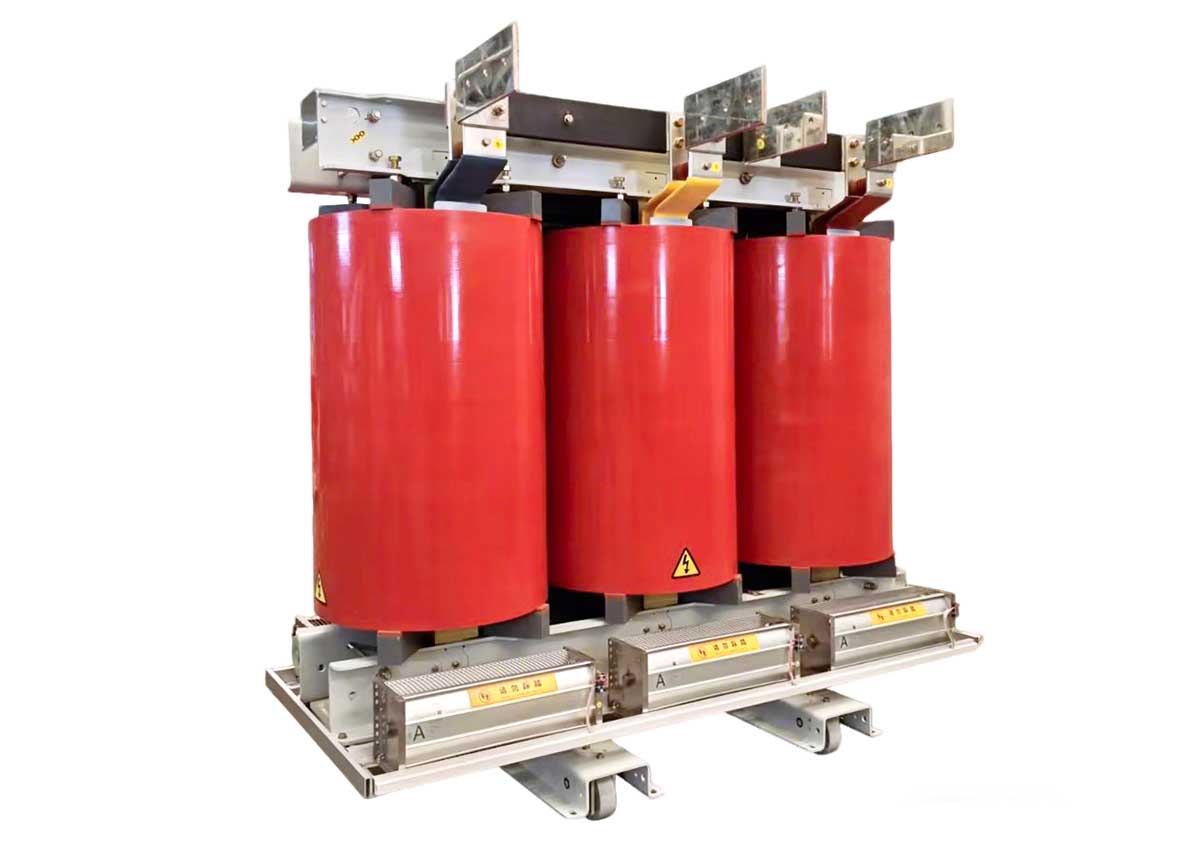

Pearl Electric, a dry-type transformer manufacturer since 1958, designs and delivers custom cast resin rectifier transformers for industrial, power, and new-energy customers worldwide. With epoxy resin insulation, low-loss design, and factory-tested performance, our cast resin rectifier transformers help your power-conversion systems run safely, efficiently, and continuously.
