What is the IEC 60076 transformer buying checklist?
The IEC 60076 transformer buying checklist is a structured guide used by overseas procurement teams to evaluate transformer suppliers. It includes verifying IEC compliance, reviewing technical specifications, assessing factory testing, and ensuring long-term reliability and performance.
For overseas procurement teams, sourcing power transformers internationally is a complex process involving technical compliance, logistics, and long-term reliability. Among all evaluation criteria, compliance with the IEC 60076 standard is the most critical baseline.
The IEC 60076 series is the globally recognized standard governing transformer design, testing, and performance, widely adopted across Asia, Europe, Africa, and Australia . It ensures that transformers meet consistent requirements for insulation, temperature rise, short-circuit strength, and testing procedures.
This checklist provides a practical guide for overseas procurement teams to evaluate suppliers and ensure successful transformer sourcing.
When sourcing transformers internationally, compliance is not just technical—it directly impacts:
Project approval and grid connection
Equipment reliability and lifespan
Risk of failure and maintenance cost
A non-compliant transformer can lead to costly delays and operational issues.
Confirm the supplier meets key standards:
IEC 60076-1 (General requirements)
IEC 60076-2 (Temperature rise)
IEC 60076-3 (Insulation levels)
IEC 60076-5 (Short-circuit withstand)
request type test and routine test reports.
Ensure the transformer matches your project:
Rated capacity (e.g., 10MVA, 20MVA)
Voltage level (e.g., 132kV / 33kV)
Frequency (50Hz / 60Hz)
Vector group (Dyn11, YNd11)
Cooling method (ONAN / ONAF)
A reliable power transformer manufacturer should provide:
Advanced production equipment
ISO-certified quality system
In-house testing facilities
This ensures consistent product quality.

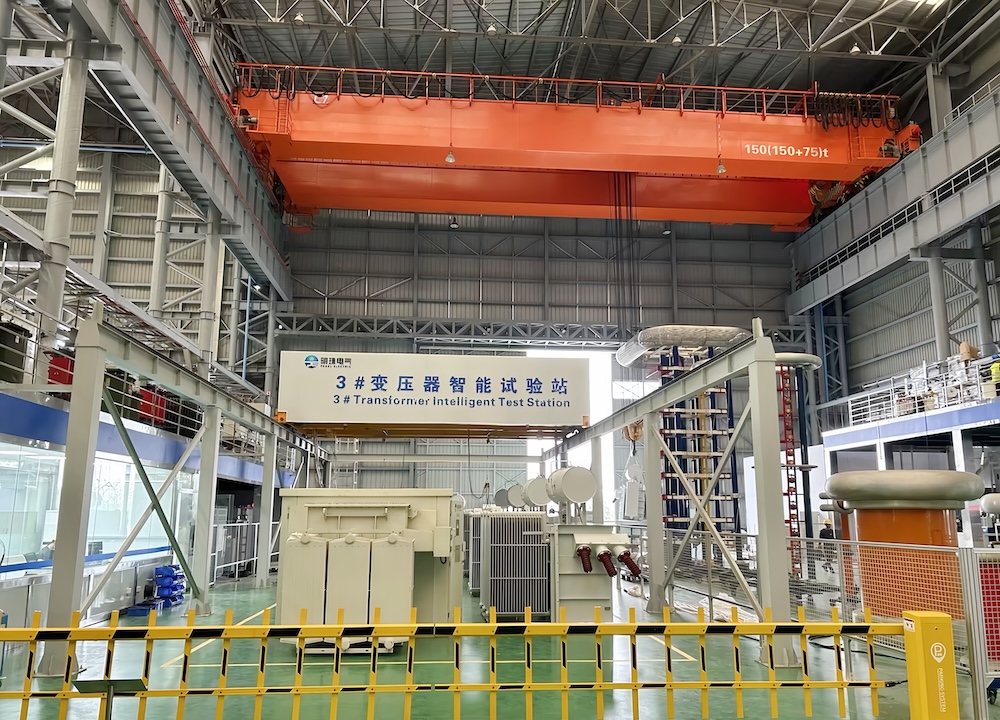

FAT is critical before shipment. Key tests include:
Ratio and winding resistance tests
Impedance and load loss tests
Lightning impulse test
Temperature rise test
IEC-compliant testing ensures performance reliability.
Never accept a transformer without a witnessed or certified test report. IEC 60076 categorizes tests into three types:
Test Category | Description |
Routine Tests | Must be performed on every single unit (Resistance, Ratio, Phase displacement, etc.). |
Type Tests | Performed on a representative design (Temperature rise, Dielectric type tests). |
Special Tests | Requested by the buyer (Short-circuit withstand, Noise level, Harmonics). |
In the context of overseas procurement, a supplier's export experience is critical to ensuring successful project delivery. The following are four core dimensions for evaluation:
Regional Track Record: Possessing a proven record of successful project deliveries within target markets (e.g., Australia, the Middle East, and Africa).
Compliance Capabilities: Demonstrating expertise in international standards, industry regulations, and local grid connection requirements (Grid Codes).
Logistics Assurance: Employing professional techniques for maritime packaging and maintaining efficient capabilities for cross-border logistics coordination.
Delivery Standards: Being well-versed in international documentation, certification, and customs declaration procedures to effectively mitigate customs clearance risks.
Key Conclusion: Prioritizing suppliers with a global perspective can significantly reduce compliance costs and transportation-related risks.
A transformer is a long-term asset (20–30 years lifecycle). After-sales support is critical.
Key services include:
Installation and commissioning support
Maintenance and troubleshooting
Spare parts availability
Technical documentation
Strong after-sales service minimizes downtime and extends equipment lifespan.
Efficiency & Losses: Assess power losses incurred during long-term operation. Based on IEC 60076 standards, high-efficiency equipment can offset its premium cost within a few years through electricity savings.
Reliability & Failure Rate: Focus on the equipment's Mean Time Between Failures (MTBF). Low-cost products are often accompanied by substantial costs associated with unexpected downtime and repairs.
Operations & Maintenance (O&M) Costs: Consider the service life of wear parts, maintenance frequency, and the ease of sourcing spare parts.
Warranty Terms: Thoroughly analyze the scope of warranty coverage and response times; this serves as a critical asset for hedging against risk.
As an experienced exporter, Pearl Electric provides:
IEC 60076 compliant power transformers
Custom design for utility and industrial projects
Full FAT testing before delivery
Export to 70+ countries
Technical support from design to commissioning
This ensures reliable performance across global markets.
The IEC 60076 transformer buying checklist helps overseas procurement teams make informed decisions, reduce risks, and ensure long-term reliability.
By focusing on compliance, testing, and supplier capability, you can secure a transformer solution that meets both technical and commercial expectations.
