A high voltage transformer changes electrical energy from one voltage level to another so power can be transmitted, distributed, or used safely and efficiently. It is a core part of high voltage equipment in utilities, industrial facilities, renewable energy sites, large buildings, AI data centers, and specialized testing environments. Demand for this equipment has become one of the defining stories in energy infrastructure in 2026, as data center growth, grid modernization, and electrification all compete for the same limited manufacturing capacity. This guide explains how high voltage transformers work, where they are used, what benefits they provide, why global supply has become so tight, and how to think about selection, operation, and maintenance without getting lost in unnecessary technical jargon.
A high voltage transformer either steps voltage up for efficient long-distance transmission or steps voltage down so electricity can be used by equipment, buildings, and industrial systems. It does this through electromagnetic induction: energy passes between windings through a magnetic core, allowing voltage and current levels to change while the electrical frequency generally remains the same.
The basic idea is simple, but the design requirements are demanding. Higher voltage creates greater insulation stress, stronger electric fields, and more serious safety risks. That is why a high voltage transformer is not just a larger version of a small transformer. It is engineered with specialized insulation, cooling, protective devices, mechanical strength, and testing standards suitable for the voltage class and application.
In practical terms, these transformers make modern power systems possible. Generating stations may produce power at one voltage, transmission networks may move it at much higher voltage, and end users — including today's power-hungry AI computing campuses — may need it reduced to usable levels. Each stage depends on the right transformer design to keep energy flowing reliably.
Voltage transformation matters because electrical losses increase when large amounts of current move through conductors. By increasing voltage, a system can transmit the same amount of power with lower current, which reduces heat losses and supports longer-distance delivery. When power reaches its destination, transformers reduce the voltage again for distribution or direct use.
This is the reason high voltage power transformer equipment is often found near generating plants, substations, heavy industrial facilities, and grid interconnection points. It acts as a bridge between different parts of the electrical network. Without that bridge, power would be harder to move efficiently, more infrastructure would be required, and many large-load applications — from steel mills to hyperscale data centers — would be impractical.
High voltage transformation also supports system flexibility. Different loads, facilities, and grid sections often operate at different voltage levels. Transformers allow these parts to connect while maintaining electrical separation, voltage control, and operational stability.
No discussion of the high voltage transformer market in 2026 is complete without addressing the equipment shortage now shaping utility planning, renewable energy timelines, and data center construction worldwide. Industry researchers report that demand for generator step-up transformers has grown by roughly 270 percent since 2019, while demand for large substation power transformers has more than doubled over the same period. The result is that lead times for large high voltage transformers, which once ran about two to two and a half years, now commonly stretch to three to five years, and in some segments even longer.
Three demand sources are converging on the same limited manufacturing base at the same time. AI data center campuses need substantial new electrical infrastructure, often at multiple points in the distribution chain, to support power-dense computing clusters. Manufacturing and transportation are electrifying processes that used to run on fossil fuels, adding facility-level transformer demand. At the same time, aging transmission and distribution infrastructure across many developed grids needs to be replaced, a task that was already behind schedule before the recent demand surge arrived.
Part of the constraint is structural rather than purely a matter of factory capacity. Transformer cores rely on grain-oriented electrical steel, a specialized material with magnetic properties that few facilities worldwide are equipped to produce, which limits how quickly output can scale even with new investment. In response, manufacturers including major global suppliers have announced billions of dollars in new North American production capacity, and some large power users are turning to on-site or 'bring your own power' generation strategies to reduce their dependence on grid-connected high voltage transformer capacity.
For anyone specifying, budgeting, or scheduling a project around a high voltage transformer today, this shortage is not a temporary blip. It means procurement now belongs at the earliest stage of project planning, well before construction begins, and it rewards buyers who build strong relationships with manufacturers, order well ahead of need, and stay flexible on specifications where possible.
Electrical transformer types vary by design, insulation method, cooling approach, phase configuration, and function. The right choice depends on the voltage level, installation environment, load profile, safety requirements, and service conditions.
Common categories include:
● Step-up transformers: Increase voltage, often used near generation or power conversion sources so electricity can travel efficiently over longer distances.
● Step-down transformers: Reduce voltage for distribution networks, industrial equipment, buildings, or downstream switchgear.
● Power transformers: Used in transmission and substation environments where large amounts of energy must be transferred between voltage levels.
● Distribution transformers: Serve lower downstream loads, often closer to the point of use.
● Instrument transformers: Include current transformers and voltage transformers that help meters, relays, and control systems measure high voltage circuits safely.
● Isolation transformers: Provide electrical separation between circuits, improving safety and helping manage certain power quality concerns.
● Dry-type transformers: Use air or solid insulation rather than liquid insulation, often selected where indoor installation or reduced fluid risk is important.
● Liquid-filled transformers: Use insulating liquid for cooling and dielectric strength, commonly applied in larger or outdoor high voltage equipment.
These categories can overlap. For example, a high voltage power transformer may be liquid-filled, three-phase, step-up, and designed for outdoor substation service. The classification tells you how the transformer is expected to function and what conditions it must withstand.

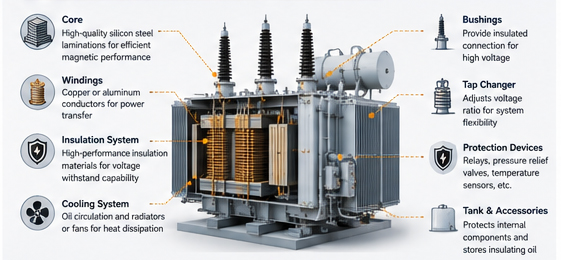

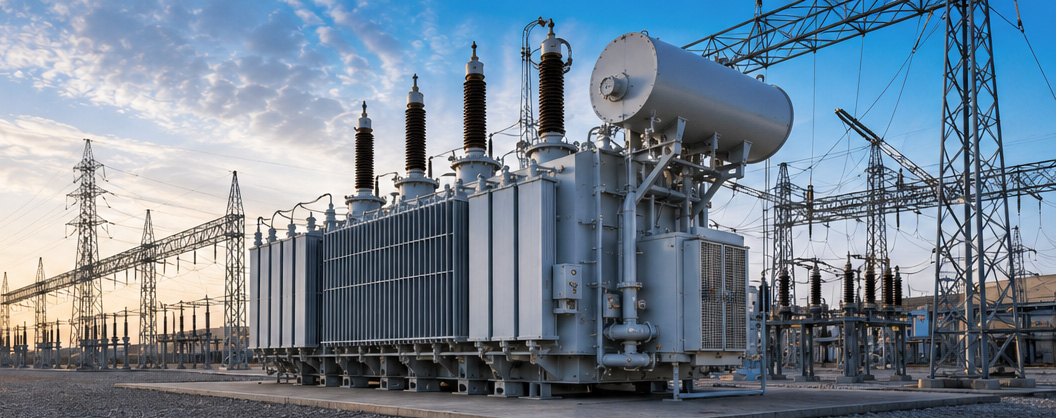

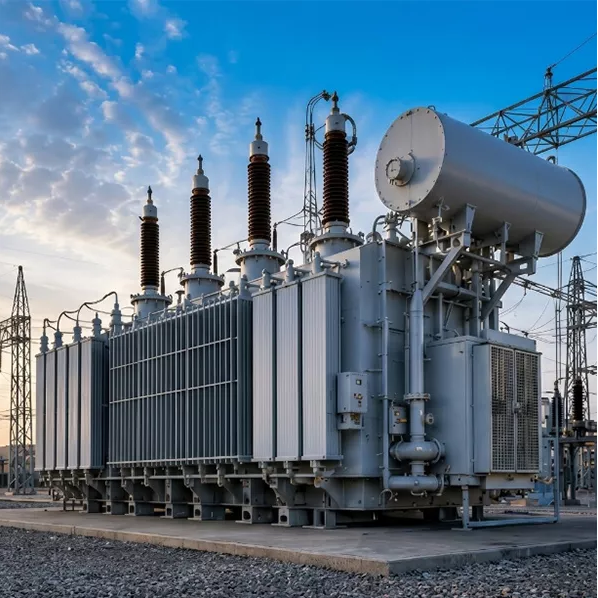

A high voltage transformer is a system of carefully coordinated parts. Each component contributes to electrical performance, thermal control, insulation integrity, and long-term reliability.
The core provides a magnetic path that transfers energy between windings. The windings are conductive coils arranged to create the required voltage ratio. The insulation system separates energized parts from each other and from grounded structures, helping prevent breakdown under high electrical stress.
Cooling is equally important. Heat builds up whenever current flows through windings and magnetic flux moves through the core. Depending on the transformer type, cooling may rely on air, insulating liquid, radiators, fans, pumps, or a combination of methods. If heat is not managed correctly, insulation can age faster and equipment life can be shortened.
Other important components may include bushings, tap changers, conservators, pressure relief devices, temperature monitors, relays, grounding connections, and protective enclosures. In high voltage equipment, small details matter. A weak bushing, contaminated insulation, or poor connection can become a major reliability problem.
The way a manufacturer builds these three components largely determines how a unit performs over decades of service, not just on day one. Experienced producers such as Pearl Electric, a China-based manufacturer of oil-immersed high voltage transformers, illustrate the kind of engineering detail involved: cores built from grain-oriented, cold-rolled silicon steel with a staggered lamination pattern to raise magnetic permeability and cut no-load losses, low-voltage windings wound from high-purity copper with oil-duct cooling paths to bring down operating temperature and extend service life, and high-voltage windings designed with careful electric-field distribution and lightning-impulse withstand capability to resist surge damage. Insulation systems built around oil-impregnated paper barriers and concentric coil alignment help maintain dielectric strength and keep the unit within safe operating temperature even at full load.
These design choices matter because a high voltage transformer that saves a few percentage points on no-load losses, or runs several degrees cooler under load, can translate into meaningfully lower lifetime energy costs and a longer service life — factors worth weighing as heavily as the upfront purchase price.
One of the clearest technology trends shaping the high voltage transformer market right now is digitalization. Newer units increasingly ship with embedded sensors that continuously track temperature, loading, moisture, and vibration, feeding that data into monitoring platforms that flag developing problems before they cause an outage. For asset owners facing multi-year replacement lead times, this kind of predictive maintenance capability is becoming less of a premium feature and more of a practical necessity, since it helps extend the useful life of existing equipment while new units are on order.

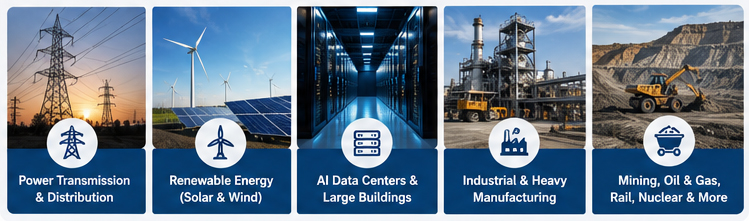

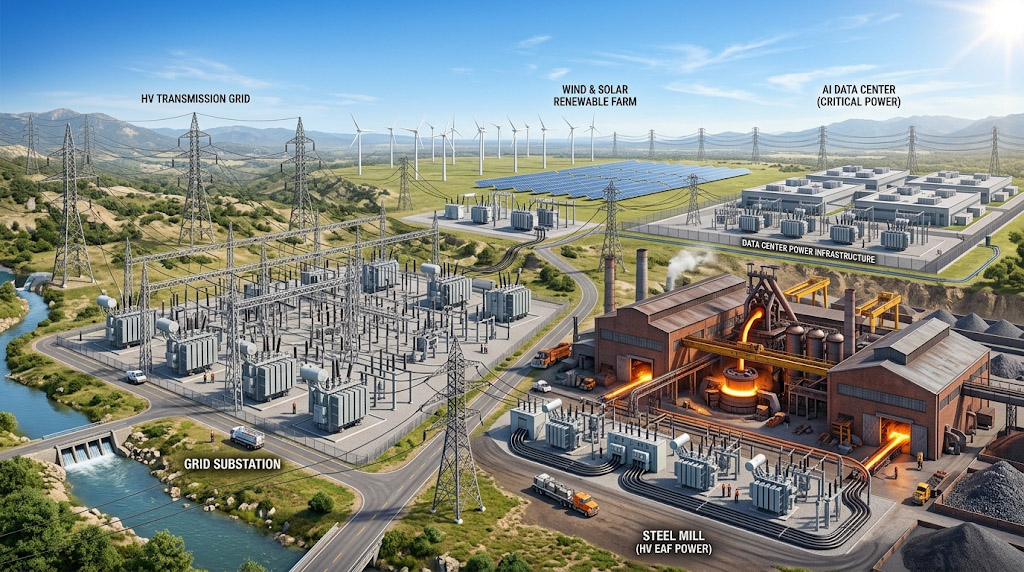

High voltage transformers are used wherever electrical energy must be moved, adapted, isolated, measured, or controlled at elevated voltage levels. They appear in public power infrastructure, private industrial networks, energy projects, transportation systems, research facilities, AI and cloud computing campuses, and large commercial sites.
The exact design changes from one setting to another. A utility substation may need a transformer designed for continuous grid service and fault withstand capability. A manufacturing plant may need a unit matched to motors, furnaces, drives, or process lines. A testing laboratory may need a transformer that can produce controlled high voltage for equipment validation.

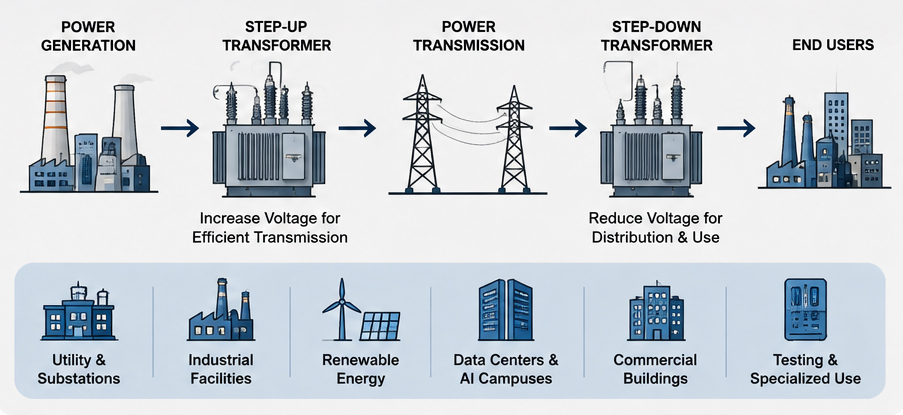

In electric grids, transformers connect generation, transmission, sub-transmission, and distribution systems. Step-up transformers raise voltage after generation, while substation transformers reduce it for regional distribution. This layered approach helps utilities balance efficiency, safety, and practical delivery.
High voltage power transformer reliability is especially important in this environment because failures can affect large numbers of customers or critical services. Grid-connected units are typically selected with close attention to load growth, protection coordination, environmental exposure, and maintenance access.

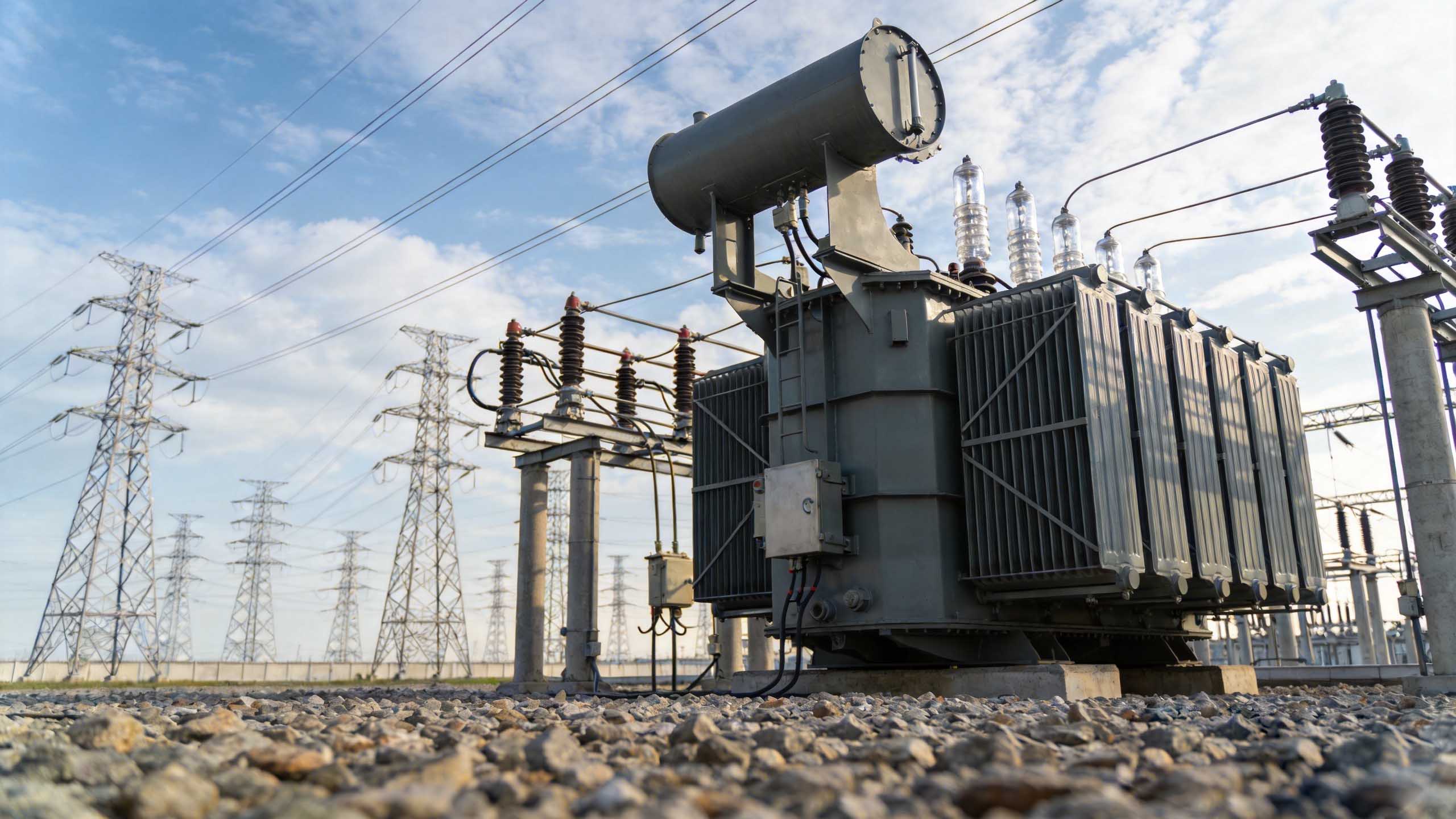

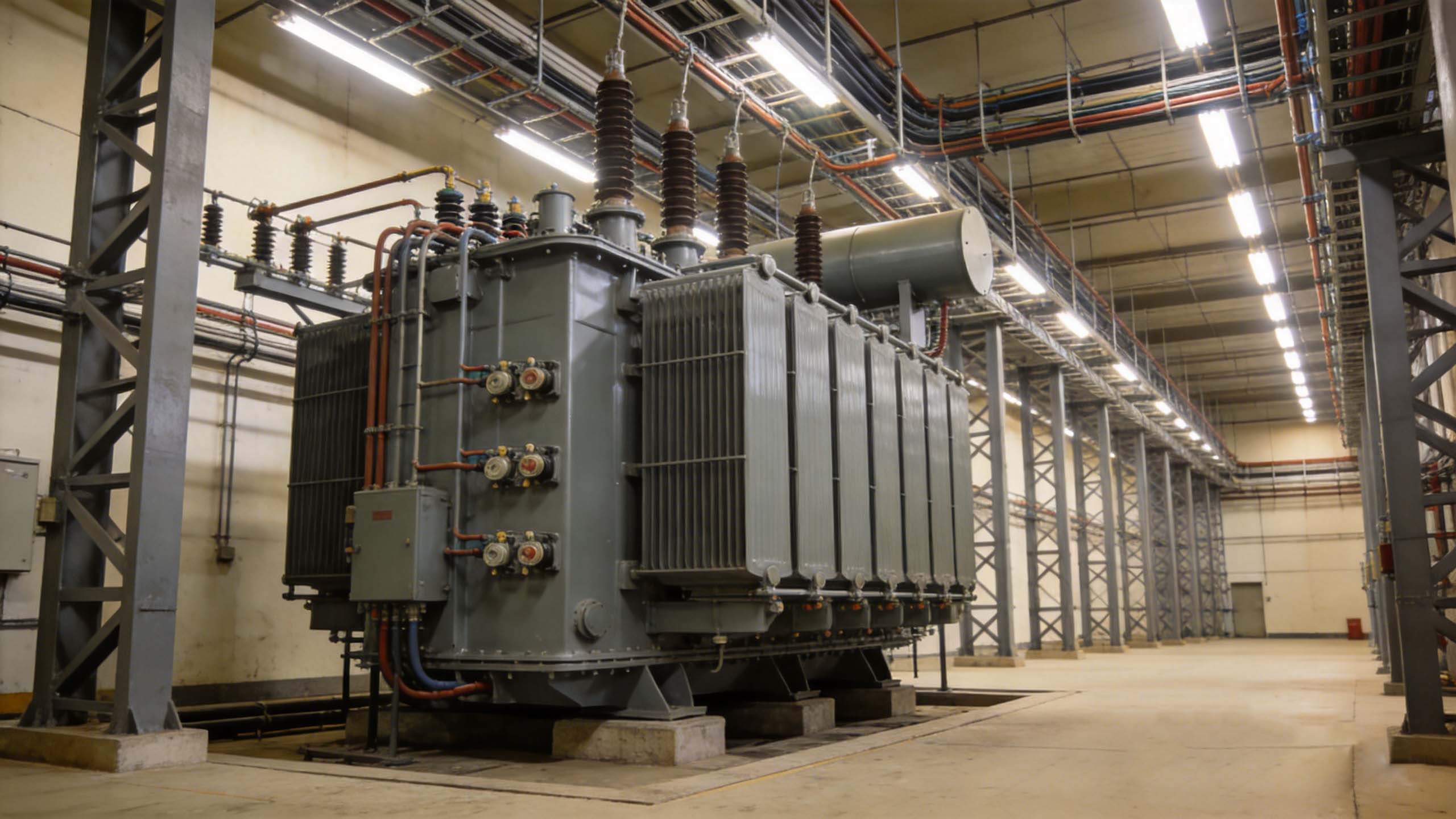

Solar farms, wind farms, battery storage systems, and increasingly AI data center campuses all need transformers to connect their load or output to the grid. In these applications, transformers may work with inverters, collection networks, switchgear, and protection systems.
The practical benefit is compatibility. Renewable generation, storage, or a computing campus may operate at one voltage level, while the grid requires another. Transformers make that interconnection possible while supporting safe isolation and coordinated operation — which is exactly why this segment is currently at the center of the industry's supply crunch. Manufacturers serving this market, including Pearl Electric, offer oil-immersed step-up high voltage transformers in capacities roughly from 500 kVA up to 180 MVA specifically built for wind and solar interconnection, using ONAN/ONAF cooling and moisture-resistant construction to hold up in exposed, harsh-weather sites, alongside dedicated transformer solutions for data center, EV charger, and smart grid applications.
Industrial transformer applications include mining, oil and gas, metals processing, chemical plants, data centers, water treatment, manufacturing campuses, and large transportation infrastructure. These sites may use high voltage service to support large motors, heating systems, compressors, drives, process equipment, or internal distribution networks.
Industrial environments can be demanding. Loads may fluctuate, harmonics may be present, ambient temperatures may be high, and uptime requirements may be strict. For that reason, transformer selection must consider not only nameplate voltage and capacity but also duty cycle, installation conditions, protection strategy, and maintenance planning. Hazardous sites such as offshore platforms and gas-fired power stations add another layer of requirements, and manufacturers have responded with oil-leak-proof tanks, flame-retardant insulation, pressure relief devices, and explosion vents built specifically for oil and gas duty.
Two demanding niches deserve their own mention. Electrified railway and metro systems rely on traction transformers to convert grid power into the specific voltage and frequency profile that trains require — a specialized application that has drawn scrutiny from transit operators; Pearl Electric, for example, has gone through a supplier audit from Hong Kong's MTR Corporation covering its traction and traction rectifier transformer lines. Nuclear power plants sit at the opposite end of the risk spectrum, where transformer insulation, fire safety, and seismic resilience face the industry's strictest requirements, typically demanding Class A insulation materials, reinforced sealing, and independent type testing against IEC 60076 and IAEA safety guidance.
Some high voltage transformers are built for testing cables, switchgear, insulation systems, bushings, motors, and other electrical products. These units may not operate like grid transformers. Instead, they may provide controlled voltage for short-duration tests or specialized waveforms depending on the application.
Specialized transformers can also support medical, scientific, transportation, and defense-related systems. In these settings, precision, insulation performance, and safety controls often matter as much as power capacity.
The benefits of high voltage transformers extend beyond simply changing voltage. They improve efficiency, enable grid architecture, protect equipment, and support safer electrical design when properly specified and maintained.
Important advantages include:
● Efficient power transfer: Higher voltage allows lower current for the same power level, reducing energy lost as heat in conductors.
● System compatibility: Transformers connect equipment and networks that operate at different voltage levels.
● Improved power distribution: Facilities can bring in higher voltage service and distribute power internally in a structured way.
● Electrical isolation: Many transformer designs separate circuits, helping manage safety risks and certain fault conditions.
● Voltage control: Tap changers and system design choices help keep voltage within acceptable operating ranges.
● Support for large loads: Industrial systems and data center campuses can operate equipment that would be impractical on lower-voltage service alone.
● Operational resilience: Properly selected transformers help stabilize power flow and support coordinated protection.
These benefits depend on correct engineering. A transformer that is poorly matched to its load or environment can overheat, experience insulation stress, create nuisance trips, or require more maintenance than expected.

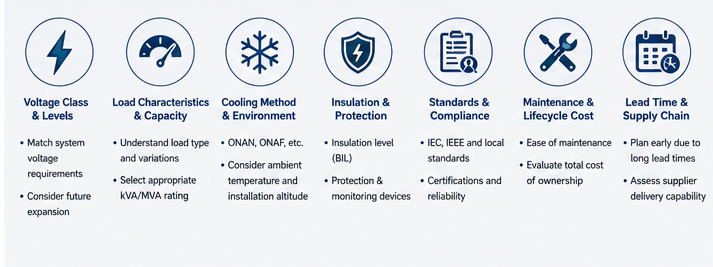

Choosing the right high voltage transformer starts with defining the electrical duty, physical environment, safety needs, and long-term operating expectations. The best choice is not simply the largest available unit or the lowest upfront cost; it is the transformer that fits the system reliably over its intended service conditions — and, in the current market, that can actually be delivered within a workable timeline.
A practical selection process should consider:
1. Voltage requirements: Identify primary and secondary voltage levels, insulation class, grounding method, and system configuration.
2. Load profile: Review continuous load, peak demand, motor starting, cyclic duty, and expected future growth.
3. Capacity and thermal performance: Choose a rating and cooling method that can handle actual operating conditions without excessive temperature rise.
4. Installation location: Consider indoor or outdoor placement, altitude, ambient temperature, ventilation, seismic needs, corrosion exposure, and available space.
5. Insulation and cooling type: Compare dry-type and liquid-filled options based on safety, maintenance, footprint, efficiency, and environmental constraints. A growing number of buyers are also weighing newer, biodegradable insulating fluids and amorphous-core designs, which manufacturers are promoting as lower-loss, lower-environmental-impact alternatives to conventional materials.
6. Protection and monitoring: Coordinate fuses, breakers, relays, temperature sensors, pressure devices, and alarms with the broader electrical system.
7. Standards and compliance: Match applicable codes, utility requirements, site specifications, and industry practices.
8. Maintenance access: Ensure technicians can inspect, test, ventilate, sample, repair, or replace components as needed.
9. Lifecycle value: Consider reliability, losses, serviceability, downtime risk, and expected operating demands, not only purchase price.
10. Procurement timeline: Factor in current manufacturing lead times, which can run several years for large units, and build ordering schedules into project planning from day one rather than treating equipment as a late-stage purchase.
For industrial transformer applications, the load profile deserves special attention. A facility with large motors, variable frequency drives, welding equipment, or process loads may create electrical stresses that are not obvious from basic capacity numbers alone. Early coordination between engineering, operations, procurement, and maintenance teams helps prevent costly mismatches and scheduling surprises.
Given multi-year lead times, the manufacturer relationship matters almost as much as the technical specification. A qualified supplier should be able to demonstrate compliance with IEC 60076 and, depending on the destination market, standards such as ANSI/IEEE C57, BS, NEMA, or regional eco-design requirements. Quality systems such as ISO 9001 and ISO 14001 certification, documented incoming-material inspection, and factory acceptance testing (FAT) witnessed by the buyer or a third party are reasonable baseline expectations rather than extras.
Track record and voltage-class coverage are also worth checking directly. Pearl Electric, for instance, has manufactured power transformers since 1958 and currently produces oil-immersed high voltage units spanning roughly 66kV to 230kV and 10 MVA to 200 MVA, with CE, UL, TUV, and ASTA certifications, configurable vector groups, and optional accessories such as on-load tap changers, winding and oil thermometers, gas relays, and pressure relief valves. Buyers evaluating any manufacturer should ask for evidence of similar project experience in their own sector — utility, renewable, industrial, rail, or data center — since design requirements differ meaningfully between them.
High voltage equipment requires disciplined safety practices because energized parts can present shock, arc flash, fire, and mechanical hazards. Transformers also store thermal energy, may contain insulating liquid, and can be connected to systems with significant fault current. Safe work depends on proper design, procedures, labeling, training, and protective devices.
Important safety practices include:
● Keep unqualified personnel away from transformer enclosures, yards, vaults, and terminals.
● Use lockout and tagout procedures before inspection or maintenance.
● Verify absence of voltage with appropriate equipment and procedures.
● Maintain required clearances around energized and ventilated components.
● Keep grounding and bonding systems intact and properly inspected.
● Use protective relays, fuses, breakers, and alarms suited to the application.
● Watch for signs of overheating, leaks, unusual noise, damaged bushings, corrosion, or insulation distress.
● Follow site rules, electrical codes, manufacturer guidance, and qualified engineering recommendations.
Safety should be built into the installation from the beginning. Good fencing, warning signs, working clearances, fire protection, spill containment where needed, and accessible disconnecting means all contribute to safer operation. Maintenance teams should also have clear documentation so they understand ratings, connections, protection settings, and emergency procedures.
Reliability is shaped by electrical loading, thermal conditions, insulation condition, mechanical stress, and environmental exposure. A transformer can be well designed and still perform poorly if it is overloaded, poorly ventilated, contaminated, or subjected to repeated faults.
Heat is one of the most important transformer life factors. As operating temperatures rise, insulation materials generally age faster. Proper cooling, load management, and temperature monitoring help protect the transformer from avoidable stress.
Blocked airflow, failed fans, low liquid levels, dirty radiators, or overloaded circuits can all contribute to overheating. Operators should treat abnormal temperature trends as early warnings rather than waiting for a failure — and given today's replacement lead times, avoiding a premature failure matters more than ever.
Moisture and contamination can weaken insulation performance. Outdoor transformers may face rain, dust, salt, chemicals, wildlife, and temperature swings. Indoor transformers may face poor ventilation, dust buildup, or restricted access.
The enclosure, insulation type, sealing system, and maintenance plan should match the environment. In harsh industrial settings, corrosion resistance and regular inspection can be just as important as electrical rating.
Short circuits, switching events, lightning, harmonics, and voltage surges can stress transformer windings and insulation. Protective equipment helps limit damage, but protection must be properly coordinated. Surge arresters, relays, breakers, and grounding systems all play a role in reducing risk.
A transformer that has experienced a major fault should be evaluated before being returned to normal service. Even if it appears functional, internal mechanical movement or insulation damage may have occurred.
A transformer maintenance program should be based on transformer type, voltage class, duty, environment, and criticality. The goal is to find developing issues early, preserve insulation health, and avoid unplanned outages — a goal that matters even more now that a failed unit may take years to replace.
A useful inspection checklist may include:
● Review load, temperature, and alarm history for unusual trends.
● Inspect bushings, terminals, grounding conductors, and visible connections.
● Check for leaks, corrosion, damaged paint, loose hardware, or enclosure issues.
● Confirm cooling fans, pumps, radiators, vents, and filters are clean and operational.
● Listen for unusual humming, rattling, or vibration.
● Verify protective devices and monitoring equipment are functional.
● For liquid-filled units, perform appropriate fluid testing as required by the maintenance plan.
● For dry-type units, inspect for dust buildup, blocked ventilation, discoloration, or insulation damage.
● Keep records of test results, maintenance actions, loading changes, and repairs.
Documentation matters because transformer problems often develop gradually. A single temperature reading or inspection note may not say much, but trends over time can reveal deterioration. Good records also help engineers make better decisions about loading, refurbishment, replacement, or spare equipment planning.
Many transformer problems begin during specification, installation, or early operation. Avoiding common mistakes can improve safety, performance, and lifecycle value.
Watch for these issues:
● Choosing capacity without studying the load: Nameplate capacity must be matched to real operating behavior, not just a simple estimate.
● Ignoring future growth: A transformer that barely meets today's demand may become a bottleneck as equipment is added — a risk that is amplified when replacement lead times run several years.
● Underestimating environment: Heat, dust, moisture, chemicals, and restricted airflow can shorten service life.
● Treating protection as an afterthought: Protective devices must be coordinated with transformer characteristics and system fault levels.
● Poor installation clearances: Transformers need room for cooling, inspection, safe work, and emergency access.
● Skipping baseline testing: Initial test data gives maintenance teams a reference point for future comparisons.
● Neglecting operator training: Personnel should know what normal operation looks, sounds, and smells like so they can spot early warning signs.
● Ordering too late: In a market where large units can take years to arrive, waiting until construction is underway to place an order is one of the most costly mistakes a project team can make.
These mistakes are preventable with careful planning. The best results usually come when transformer decisions are made as part of the complete electrical system design, and the procurement timeline, rather than as a standalone, late-stage purchase.
There is no single global cutoff, but in practice the term generally covers units operating from around 66kV up to 230kV or higher on the primary side, with capacities anywhere from roughly 10 MVA for smaller substation units to 200 MVA or more for large grid and industrial transformers. Below that range, equipment is usually classified as medium-voltage distribution or pad-mounted transformers instead.
A typical program includes routine visual and thermal inspections monthly to quarterly, oil quality and dissolved gas analysis (DGA) testing every one to three years depending on age and criticality, and a full electrical test set — insulation resistance, power factor/tan delta, turns ratio, and winding resistance — every three to five years or after any major fault event. DGA is particularly valuable because it can flag insulation breakdown or overheating inside the tank well before the problem becomes visible externally, giving asset owners time to plan a repair or replacement rather than facing an unplanned outage.
A step-up transformer raises voltage, and is typically installed close to a generation source — a power plant, wind farm, or solar park — so electricity can travel efficiently over long transmission distances. A step-down transformer does the opposite, reducing high transmission voltage to a level substations, factories, or buildings can actually use. Many projects, including renewable energy interconnections, need both stages at different points in the system.
At minimum, the transformer design should comply with IEC 60076, the core international standard for power transformers, and with any additional regional requirements such as ANSI/IEEE C57 in North America or BS and NEMA standards elsewhere. On the manufacturer side, ISO 9001 and ISO 14001 quality and environmental management certification, along with product certifications such as CE, UL, TUV, or ASTA, and a documented factory acceptance testing process, are reasonable indicators that a supplier can deliver consistent, verifiable quality on a multi-year project.
A high voltage transformer is not a disposable component. It is long-term electrical infrastructure that affects energy efficiency, uptime, safety, and expansion options. Whether it serves a utility substation, renewable energy project, industrial plant, AI data center, or testing facility, its value depends on matching the design to the application and caring for it throughout its service life.
Understanding the major electrical transformer types, the demands of high voltage equipment, the realities of industrial transformer applications, and the supply pressures now reshaping the market helps teams make better decisions. The right transformer, ordered early from a manufacturer with a verifiable track record, and maintained well, supports efficient power flow, safer operation, and dependable performance in systems where electrical reliability is essential.
