In demanding industries such as mining, rail transportation, heavy manufacturing, and automated production, stable power distribution is essential for operational safety and efficiency. Traditional standard equipment often cannot withstand harsh operating conditions, making customized dry-type transformers an ideal solution due to their superior fire safety, low maintenance, environmental protection, and reliable long-term performance. As global industrial modernization and electrification accelerate, the demand for high-efficiency custom transformer solutions continues to grow rapidly.
Custom dry-type transformers are widely used in mining, rail transportation, and industrial plants due to their high safety, reliability, and energy efficiency. Compared with conventional oil-filled transformers, they eliminate risks of oil leakage and fire hazards while providing stable power distribution in harsh environments. With customized designs for specific voltage, load, and operating conditions, these transformers deliver superior durability, low maintenance, and long-term operational performance for critical industrial applications.
In this comprehensive guide, we will explore how tailored dry-type technology is transforming heavy industry, addressing everything from environmental safety and footprint constraints to harmonic mitigation and long-term maintenance.
For decades, liquid-filled transformers were the default choice for heavy industrial applications. However, modern environmental regulations, space constraints, and stringent safety standards have sparked a massive shift toward dry-type alternatives.
When upgrading aging industrial power systems, dry-type transformers offer a safer and more environmentally friendly alternative to traditional oil-filled transformers. By using air-cooling technology, they eliminate risks such as oil leakage, fire hazards, and soil contamination while reducing maintenance requirements. Their superior fire safety and eco-friendly design make them ideal for mining, rail, and industrial indoor power distribution applications.
Although custom dry-type transformers may require a higher initial investment than traditional oil-filled transformers, they often provide a lower total cost of ownership over the long term. Oil-filled transformers require ongoing oil testing, filtration, leak prevention, and additional containment infrastructure, all of which increase maintenance and operational costs. In contrast, dry-type transformers offer low-maintenance operation, reduced fire and environmental risks, lower insurance costs, and simplified installation requirements. For mining, rail transportation, and industrial plants, custom dry-type transformer solutions typically deliver greater reliability, energy efficiency, and long-term return on investment throughout a 20- to 30-year service life.
Dry-type transformers use air as the cooling medium instead of insulating oil, making them safer and more environmentally friendly than conventional oil-immersed transformers. Their compact design and fire-resistant insulation system allow installation in indoor substations, tunnels, underground facilities, and densely populated industrial areas.
For mining projects, transformers often operate in environments with high dust levels, vibration, humidity, and heavy load fluctuations. Customized dry-type transformers can be designed with reinforced insulation systems, anti-corrosion coatings, and advanced thermal management to ensure reliable operation under harsh conditions.
In rail transit systems, stable voltage supply is critical for traction systems, signaling equipment, station infrastructure, and tunnel power distribution. Dry-type transformers provide excellent overload capability, low partial discharge levels, and reduced noise performance, making them highly suitable for metro systems, railway substations, and urban transportation networks.
Industrial manufacturing plants also require transformers capable of handling continuous heavy-duty operations. Customized solutions help optimize voltage regulation, reduce energy loss, and improve overall power quality for production facilities.

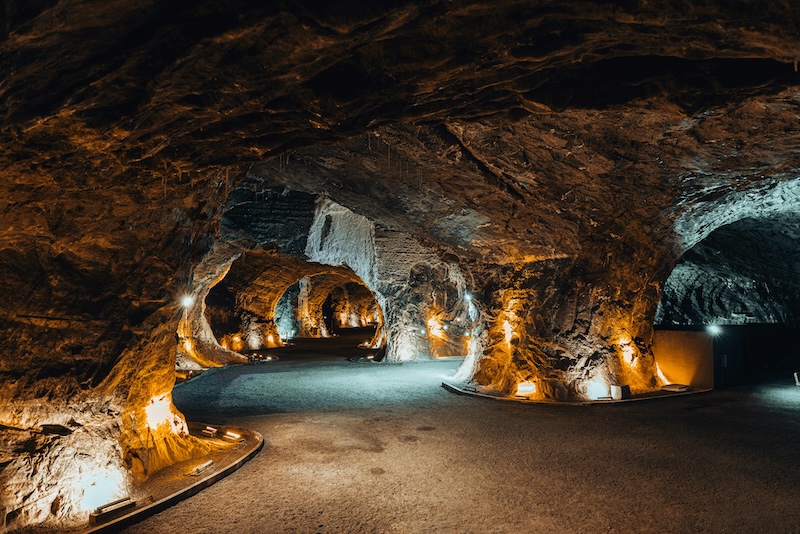

The mining industry operates in some of the world’s harshest electrical environments, where transformers must withstand constant vibration, high humidity, corrosive conditions, and heavy dust contamination. In these demanding applications, custom dry-type transformers have become the preferred solution for ensuring safe, reliable, and efficient power distribution in both underground and surface mining operations.
If you ask any mine safety engineer why use dry-type transformers in underground mining, the answer is immediate: fire prevention and air quality. In confined subterranean spaces, a transformer fire or a toxic coolant leak can be lethal. Dry-type units are self-extinguishing and do not release toxic fumes, making them the only viable choice for deep-shaft operations.
When specifying custom transformers for mining, engineers often debate the merits of VPI vs cast resin transformers for mining applications.
VPI (Vacuum Pressure Impregnation) Transformers :feature windings coated with polyester or epoxy resin under vacuum pressure. They provide excellent thermal performance, mechanical strength, and overload capability, making them suitable for above-ground mining substations and heavy industrial applications.
Cast Resin Transformers:fully encapsulate high-voltage windings in solid epoxy resin, providing superior protection against moisture, conductive dust, and corrosive contaminants. For underground mines with extremely humid or dusty conditions, cast resin dry-type transformers are often the preferred choice due to their exceptional environmental resistance and low maintenance requirements.
Mining facilities expose electrical equipment to continuous mechanical stress caused by drilling equipment, heavy machinery, and blasting activities. To ensure long-term operational reliability, custom mining transformers are often designed with seismic-rated structures, reinforced core and coil supports, and heavy-duty anti-vibration systems that minimize the impact of external shock and vibration.
Furthermore, selecting enclosure ratings for harsh mining environments is critical. A standard NEMA 1 enclosure will fail immediately underground. Custom dry-type transformers in these sectors typically utilize IP54, IP55, or NEMA 3R/4 enclosures, designed with specialized labyrinth filters that allow for air cooling while blocking abrasive rock dust and water ingress.
Railway infrastructure relies heavily on specialized power distribution to feed traction substations, signaling systems, and station loads. The unique electrical demands of modern locomotives require highly specialized industrial transformers.
Urban transit networks often have to squeeze heavy electrical infrastructure into incredibly tight underground vaults or trackside utility rooms. This requires space-saving transformer designs for railway substations. Custom engineering allows for modified coil geometries—such as building the transformer taller and narrower rather than wide—and integrating forced-air cooling fans to maximize power output without expanding the physical footprint.
Modern trains use Variable Frequency Drives (VFDs) and heavy AC/DC rectifiers. These nonlinear loads introduce severe harmonic currents back into the electrical grid. If a standard transformer is used, these harmonics cause localized overheating, extreme energy losses, and eventual insulation failure.
Expertly managing harmonic distortion in rail traction systems requires custom-designed K-factor dry-type transformers. These custom units feature:
Oversized neutral conductors to handle triple harmonics.
Electrostatic shielding between primary and secondary windings to reduce electrical noise.
Transposed winding conductors to mitigate skin-effect heating caused by high-frequency currents.

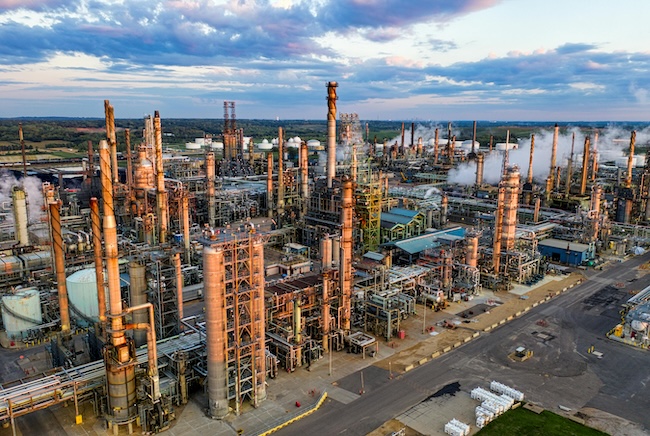

Modern manufacturing plants are massive consumers of electricity, driven by robotics, heavy conveyors, and continuous processing equipment. Off-the-shelf transformers often struggle to handle the dynamic loads of these environments.
In steel mills, pulp and paper plants, or heavy assembly lines, motors require massive surges of current upon startup—often six to eight times their running current. Standard transformers can experience severe voltage drops under these conditions, causing sensitive robotics and PLCs to reset or fail.
By engineering custom kVA ratings for heavy-duty industrial loads, facility managers can ensure that the transformer possesses the necessary thermal capacity and low impedance required to ride through heavy motor-starting transients without dipping the system voltage.
Industrial automation heavily relies on induction motors, which inherently drag down a facility's power factor, leading to utility penalties. While capacitor banks are used to correct this, the interaction between capacitor banks, VFDs, and transformers can cause damaging resonance. Optimizing power factor in automated manufacturing plants involves designing custom dry-type transformers with specific impedance values that safely detune the electrical system, preventing harmonic resonance and protecting the plant’s infrastructure.
Ordering custom dry-type transformer solutions for mining rail and industrial plants requires a deep understanding of electrical specifications. Here are the core technical parameters that must be customized for harsh environments.
One of the most critical decisions an engineer will make is how to specify transformer winding insulation class. The insulation class dictates the maximum allowable operating temperature of the windings before the materials degrade.
Class F (155°C): Suitable for moderate environments with stable loads.
Class H (180°C): The standard for heavy industrial applications.
Class R or C (220°C): Essential for mining and rail, offering the highest thermal headroom for temporary overloads and high-ambient temperature environments.
When specifying, smart engineers pair a high insulation class (like 220°C) with a lower temperature rise design (such as 80°C or 115°C). This creates a massive thermal buffer, allowing the transformer to handle unexpected overloads without damaging its lifespan.
Indoor installations must adhere strictly to fire-resistant indoor transformer safety standards. Custom dry-type transformers are manufactured using non-flammable, self-extinguishing epoxy and nomex materials, ensuring compliance with strict IEC 60076-11 and IEEE standards for fire behavior (often achieving F1 or F0 fire class ratings).
Additionally, high-efficiency custom designs inherently produce fewer losses (less wasted heat). This plays a massive role in reducing cooling requirements in industrial power systems. When your electrical room is generating less ambient heat, you can downsize the facility's HVAC requirements, saving significant capital on auxiliary power consumption over the lifespan of the plant.
While dry-type units are largely hands-off compared to liquid-filled alternatives, they are not entirely "set-and-forget" devices. To ensure decades of reliable service, facility managers should implement a standardized energy efficient dry-type transformer maintenance guide into their annual operational protocols.
Visual and Auditory Inspections: Regularly walk past the units. Listen for unusual buzzing or humming, which could indicate loose core clamping or harmonic issues. Look for discoloration on the enclosure louvers, a telltale sign of overheating.
Thermal Imaging: Once a year, perform an infrared thermography scan on the unit under full load. This will quickly identify loose bolted connections or localized winding hot-spots before they lead to catastrophic failure.
De-dusting and Cleaning: In industrial and mining settings, dust accumulation is the enemy of dry-type transformers. Dust blankets the coils, acting as an unwanted insulator that traps heat. During scheduled facility shutdowns, de-energize the unit and use clean, dry compressed air (under 30 psi) and industrial vacuums to clear out the cooling ducts.
Torque Checks: The vibrations from heavy industrial plants or rail lines can slowly back out structural bolts. Annually verify that all terminal connections and core clamps are tightened to the manufacturer's specified torque.
Cooling Fan Tests: If your custom transformer utilizes forced-air cooling (often adding a 33% kVA boost), manually trigger the fan relays annually to ensure the motors are operational and the air intakes are clear of debris.
The electrical backbone of heavy industry is no place to cut corners. Whether you are dealing with the spatial limitations of a metropolitan train network, the explosive hazards of a deep-shaft mine, or the heavy harmonic loads of an automated assembly plant, off-the-shelf power solutions leave you vulnerable to inefficiencies, safety hazards, and costly downtime.
Investing in custom dry-type transformer solutions for mining rail and industrial plants is an investment in unparalleled operational resilience. By working with specialized engineering teams, industrial operators can dictate every variable—from precise kVA ratings and harmonic mitigation shielding to robust IP-rated enclosures and high-temperature insulation classes.
Ultimately, custom dry-type technology offers the perfect synergy of environmental safety, physical ruggedness, and electrical efficiency. By upgrading from legacy oil-filled systems and embracing custom-engineered dry-type infrastructure, industrial facilities can dramatically lower their total cost of ownership, safeguard their personnel, and ensure their critical operations remain powered without interruption for decades to come.
