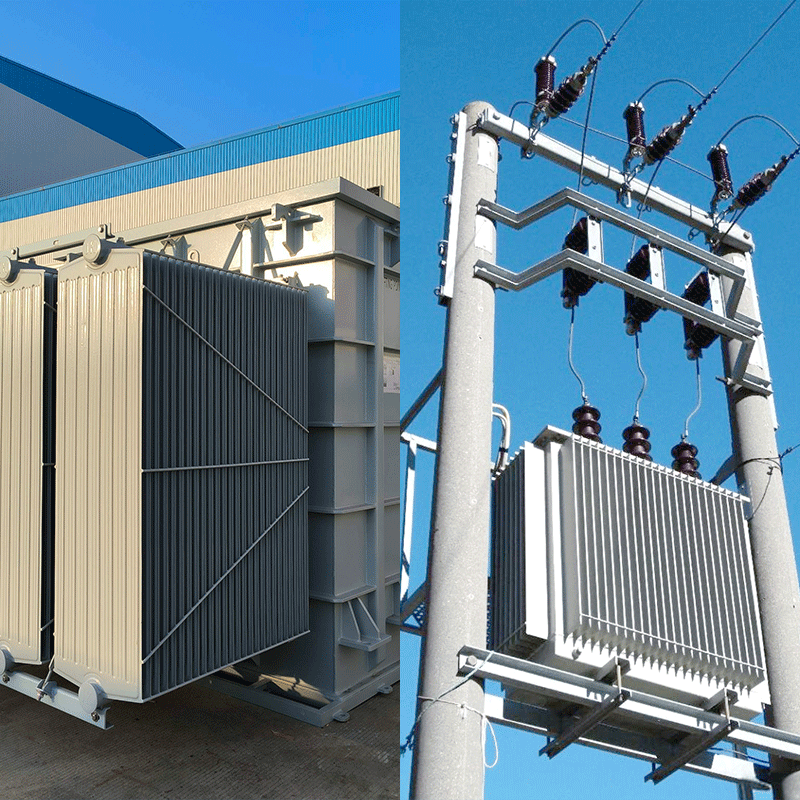

Feature | Pole-MountedTransformer | Pad-MountedTransformer |
Location | Mounted high up on an utility pole. | Mounted on a concrete slab (pad) at ground level. |
Grid Level | Distribution (Medium Voltage to Low Voltage). | Distribution (Medium Voltage to Low Voltage). |
Primary Use | Overhead lines in residential, rural, and commercial areas. | Underground lines in subdivisions, cities, and commercial areas. |
Voltage | Typically lower capacity, serving a few homes or a small block. | Higher capacity, often serving a larger group of homes or a commercial facility. |
Accessibility | Accessed by utility linemen using buckets/trucks. | Accessed by utility technicians at ground level. |
Safety & Public Access | Inaccessible to the public, high off the ground. | Locked steel cabinet to prevent public access. |
Cooling | Oil-filled, cooled by air (fins for heat dissipation). | Oil-filled or less-flammable fluid, cooled by air. |
Cost | Generally less expensive to install and maintain. | More expensive due to underground wiring requirements. |
These are the cylindrical tanks you see attached to wooden utility poles, often accompanied by fuse cutouts and other hardware.
Construction & Installation: They are bolted directly to the pole between the primary (high voltage) and secondary (low voltage) power lines. The high-voltage wires enter through bushings on the top, and the low-voltage wires exit through a weatherhead on the side, running along to the service drop that connects to a house.
Application: They are the standard for overhead power distribution systems. You'll find them in:
Older neighborhoods
Rural areas
Along highways
Anywhere where power lines are run above ground.
Advantages:
Lower Cost: Cheaper to install and maintain as they don't require digging trenches for lines.
Easier Access for Repair: Linemen can quickly access them with bucket trucks.
Easier Fault Location: Problems are often visible from the ground.
Disadvantages:
Exposure to Elements: Vulnerable to damage from storms, high winds, falling trees, and vehicle collisions with poles.
Aesthetics: Considered by many to be visually unappealing.
Safety Risk: While high up, an accident or severe storm can bring them down, creating a hazard.
These are green, metal, locked cabinets sitting on a concrete pad at ground level, often in a backyard easement, a parking lot, or on the side of a commercial building.
Construction & Installation: They are heavy, steel, tamper-proof enclosures designed to protect the public. All high-voltage and low-voltage cables enter and exit underground. They are filled with oil or a safer, less-flammable dielectric fluid.
Application: They are exclusively used with underground electrical distribution systems. You'll find them in:
Modern residential subdivisions
Urban city centers
Commercial parks
Hospitals and schools
Any area where lines are buried for aesthetics or reliability.
Advantages:
Improved Reliability: Protected from wind, ice, and falling trees, leading to fewer weather-related outages.
Aesthetics: Much less obtrusive than overhead lines and poles, maintaining the visual appeal of a neighborhood.
Public Safety: The locked, grounded steel cabinet makes them very safe from accidental public contact.
Disadvantages:
Higher Cost: Significantly more expensive due to the cost of trenching, conduit, and the transformer itself.
Slower Repair: Locating and repairing faults in underground lines can be more time-consuming and destructive (requires digging).
Vulnerability to Flooding: Must be installed in areas not prone to flooding, or be specially designed for it.
The choice between pole-mounted and pad-mounted transformers isn't about one being "better" than the other in a vacuum. It's about the design of the electrical system:
Pole-mounted transformers are for overhead lines.
Pad-mounted transformers are for underground lines.
This fundamental difference in application dictates their design, location, cost, and the advantages/disadvantages they each bring to the power grid.
