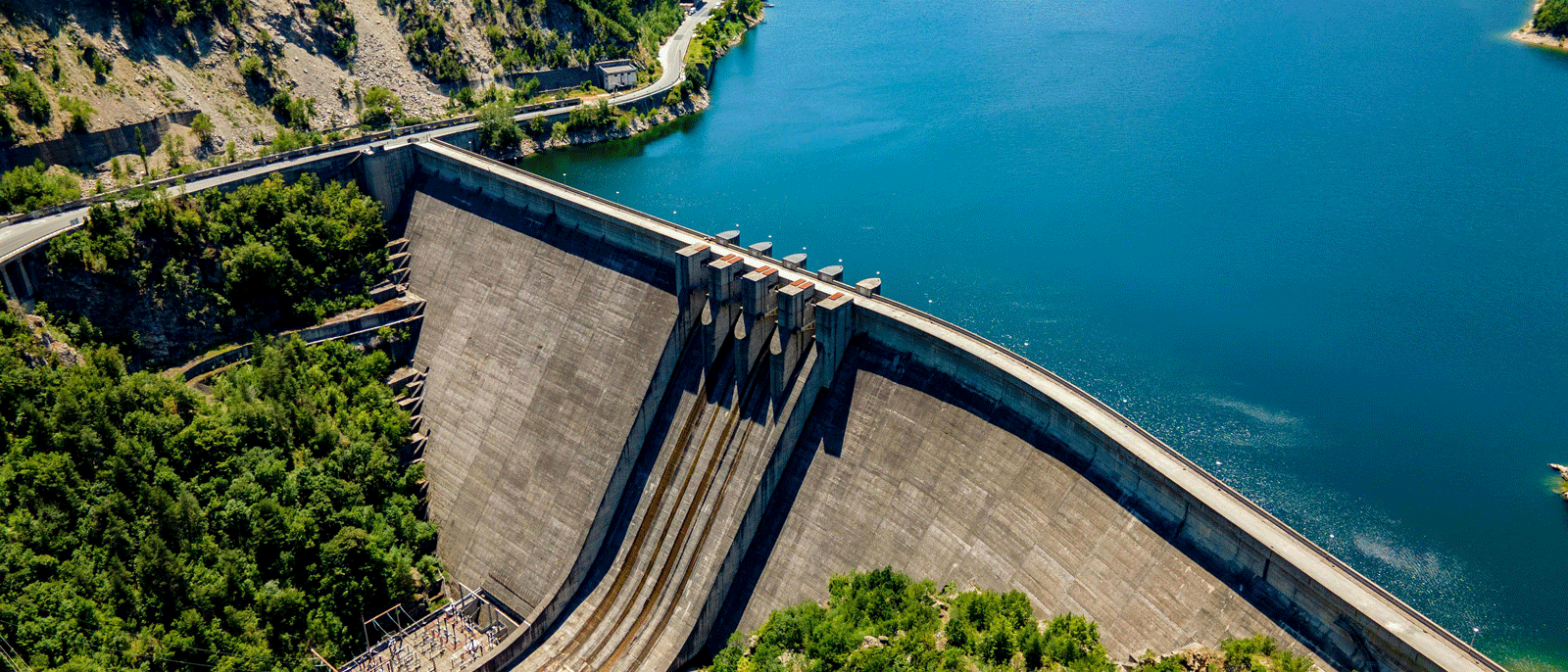

In the magnificent industrial landscape of a hydropower plant, transformers play a dual role that is both silent and critical: they are the "heart" of the system that converts water's energy into clean electricity, and the "gateway" of the grid that ensures this power is delivered efficiently and safely over long distances.
The energy conversion chain in hydropower is clear and efficient: Potential Energy of Water → Mechanical Energy of the Turbine → Electrical Energy from the Generator. However, the electricity generated typically has a low voltage (e.g., 10.5kV, 13.8kV, 15.75kV) and cannot be transmitted over long distances directly due to prohibitively high line losses.
This is where the main step-up transformer enters. Its core mission is to boost the generator's low-voltage output to extra-high or ultra-high voltage levels (e.g., 110kV, 220kV, 500kV, even 800kV) in a single step. This allows the immense power of hydropower to be "pumped" hundreds or even thousands of kilometers to load centers with minimal losses. It can be said that without the transformer, even the most abundant hydropower resource could not become the light that illuminates cities.
Compared to transformers for thermal or nuclear power, hydropower transformers face more unique and severe challenges:
Geographical and Environmental Challenges:
High Altitude: Many plants are in mountainous regions with thin air, requiring special considerations for insulation and cooling design.
High Humidity and Condensation: Underground or dam-intake powerhouses have humid environments, demanding transformers with excellent moisture and condensation resistance.
Extreme Transportation Conditions: Remote locations in deep mountains and gorges pose significant logistical challenges, often imposing strict limits on transformer dimensions and weight, sometimes necessitating split transportation and on-site assembly.
Electrical and Operational Challenges:
Frequent Load Cycling: Hydropower plants often handle peak shaving and frequency regulation for the grid. Transformers must withstand rapid load changes from no-load to full-load, even short-term overloads, requiring high mechanical strength and thermal stability.
Overvoltage Risks: Long transmission lines are prone to introduce lightning and switching surges, subjecting the transformer's insulation system to severe tests.
Inrush Currents: Frequent starting and stopping of generating units can subject transformers to significant magnetizing inrush current impacts.
To address these challenges, transformers for hydropower require special focus in design, material selection, and manufacturing:
Design Aspect | Key Requirements and Solutions |
Insulation & Cooling | • Enhanced Insulation System: Apply altitude correction for external insulation; use premium insulating materials. |
Mechanical Strength | • Reinforced Winding Clamping & Support: Use high-strength clamping plates, pre-compression processes, and special support structures to withstand frequent short-circuit electromagnetic force impacts. |
Electrical Performance | • Low Loss & High Efficiency: Prioritize high-performance silicon steel, optimize design to minimize no-load and load losses, complying with top efficiency standards (e.g., Class 1). |
Structural Adaptability | • Compact & Lightweight Design: Optimize core and tank structure within performance limits to meet strict transportation constraints. |
Within a hydropower plant, different transformer types serve specific purposes:
Main Step-up Transformer: The core equipment, matched to generator capacity for high-voltage output.
Station Service Transformer: Powers auxiliary plant equipment (lighting, control systems, ventilation, drainage), acting as the "logistical support" for safe operation.
Starting Transformer: Provides initial power to the station service system during a black start (self-start without external grid power).
Converter Transformer: Used in pumped storage plants or for High Voltage Direct Current (HVDC) transmission, enabling AC/DC conversion.
Choosing a specialist hydropower transformer manufacturer ensures:
Custom Design Capability: Ability to provide "tailor-made" designs based on each plant's unique geography, climate, and electrical parameters.
Proven Manufacturing Process: Reliability over decades of operation depends on every step, from core stacking and winding to vacuum drying and oil filling.
Full Lifecycle Service: Covers installation guidance, commissioning, preventive maintenance diagnostics, and spare parts supply, becoming a long-term partner for the plant.
The transformer for hydropower is an engineering marvel that bridges green natural energy with modern human society. It is more than a combination of steel and copper; it carries the core mission of transforming the force of rivers into stable, efficient, clean electricity. In today's pursuit of "Dual Carbon" goals and sustainable energy development, a highly efficient, reliable, and intelligent hydropower transformer is key to ensuring every drop of water's energy is fully utilized. It is also the most trustworthy partner for hydropower project investors and operators.
