In the field of solar power generation, the well-known Photovoltaic (PV) technology is already widespread on rooftops and in large-scale power plants. However, there is another technology that uses a tall tower and thousands of mirrors to concentrate sunlight into a "super beam," which then drives a traditional steam turbine to generate electricity. This is Concentrated Solar Power (CSP), specifically its mainstream form known as Solar Power Tower technology. This article will delve into how Solar Power Towers work and provide a clear comparison of their core differences with traditional photovoltaic power generation.
Solar Power Tower generation is a process of "Light-Heat-Electricity" conversion. Its core principle is to convert solar radiation into thermal energy through a large-scale mirror field, use this heat to produce steam, and drive a steam turbo-generator to produce electricity, ultimately realizing the energy conversion path of "Light Energy → Thermal Energy → Mechanical Energy → Electrical Energy."
A typical Solar Power Tower plant mainly consists of three major systems:

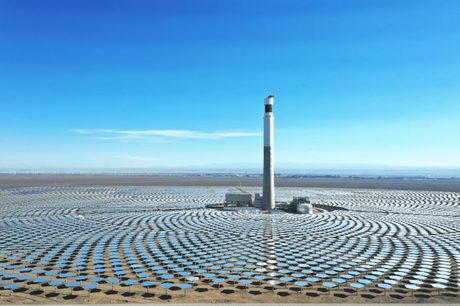

Concentration and Heat Collection System
Core: The receiver at the top of the tower and the thousands of heliostats (mirrors) arranged around it.
Process: Each heliostat acts like a precise "sunflower," using a dual-axis tracking system to reflect and precisely focus sunlight onto the receiver atop the tower, which can be over a hundred meters high.
Thermal Storage and Heat Exchange System
Key Medium: Typically uses molten salt (a mixture like sodium nitrate and potassium nitrate). The molten salt is heated by the concentrated sunlight within the receiver to temperatures exceeding 500-600°C.
Storage Advantage: The heated molten salt flows into a hot storage tank, forming a massive "thermal battery." During power generation, the hot salt releases heat to produce steam, then returns to a cold storage tank, completing the cycle.
Power Generation System
Similar to traditional thermal or nuclear power plants, it uses the heat from the molten salt to create high-temperature, high-pressure steam, which drives a steam turbo-generator set. This is one of the most fundamental differences from PV—it ultimately delivers alternating current (AC) electricity that is perfectly synchronized with the power grid.
To understand more intuitively, we can comprehensively compare the two across the following dimensions:
Comparison Dimension | Solar Power Tower (CSP) | Traditional Photovoltaic (PV) Power |
Core Technology Path | Light → Heat → Electricity | Light → Electricity |
Working Principle | Concentrates light to produce high-temperature heat, driving a heat engine (steam turbine). It is a thermodynamic process. | Photons excite semiconductor material (e.g., silicon) to create electron-hole pairs, generating voltage. It is based on the quantum physical photoelectric effect. |
Energy Storage Method | Inherently features low-cost, large-scale thermal storage (from several hours to over ten hours), enabling continuous, stable day-and-night power generation with dispatchable output. | Electricity must rely on external battery energy storage systems (BESS). Large-scale electrical storage is costly, and PV typically acts as an intermittent power source. |
Grid Integration Characteristics | Outputs stable, dispatchable, synchronous AC power with rotational inertia, enhancing grid stability. It is a high-quality, grid-friendly power source. | Outputs DC power, requiring inverters to convert to AC. It is an intermittent/variable power source; large-scale integration requires supporting peaking resources. |
Energy Conversion Efficiency | Relatively high overall system efficiency (approx. 15-20%), improving with scale. Energy loss in the thermal storage cycle is small. | High single-module efficiency (commercial silicon modules ~20-23%), but overall system efficiency is affected by temperature, dust, etc. |
Land & Water Resources | High energy density, but spacing is needed for mirrors, resulting in larger land use per unit of electricity generated; the steam cycle requires some cooling water. | Flexible layout, relatively smaller land footprint per installed capacity; operation consumes virtually no water. |
Climate Adaptability | Relies on high direct normal irradiance (DNI), offering clear advantages in sunny, arid regions; utilizes diffuse sunlight very poorly. | Can utilize both direct and diffuse sunlight, can still generate power in cloudy, humid regions, offering wider adaptability. |
Main Equipment | Heliostat field, receiver tower, molten salt thermal storage system, steam turbo-generator set, heat exchangers, etc. | PV modules, inverters, mounting structures, combiner boxes, etc. |
Technology Maturity & Cost | Technologically complex, high initial capital cost, long construction period. However, with integrated storage, its Levelized Cost of Energy (LCOE) can be competitive over long operational lifespans. | Highly mature technology, extensive industrialization, low initial capital cost, rapid installation, currently the absolute market mainstream. |
Solar Power Tower (CSP) and Photovoltaic (PV) power generation are not simple substitutes but rather complementary and synergistic technological paths:
PV Power is the model for distributed, flexible deployment, suitable for rapid construction in various locations. It is the vanguard for increasing renewable energy penetration.
CSP (Tower) is a solution for centralized, dispatchable baseload power. Its powerful thermal storage and generation capability can effectively solve the intermittency issue of solar power, providing stable, clean electricity to the grid and acting as a "stabilizer" in building new power systems.
For the power equipment industry, these two technologies also create different demands:
PV Power Plants require a large number of conventional containerized step-up transformers to increase the voltage from the inverter output to grid level.
Solar Power Tower Plants resemble traditional thermal plants more closely. Their electrical systems require a complete set of complex and highly reliable power transformation equipment, ranging from excitation transformers at the generator outlet and auxiliary/service transformers to large main step-up transformers.
As the global energy transition deepens, long-duration energy storage technologies that are both green and economical will become essential. In this context, Solar Power Tower technology, with its inherent "built-in thermal storage" advantage, is poised to occupy a unique and significant position in the future energy landscape.
