PV Inverter-Integrated Machine Transformers: The "High-Efficiency Heart" of New Energy Systems

The core competitiveness of PV inverter-integrated machines lies in breakthroughs in the performance of the step-up transformer. This article focuses on how transformer technology achieves a PV system conversion efficiency exceeding 99.2% through material innovation, structural optimization, and system integration, providing a technical layout guide for high-voltage transformer enterprises.

I. Transformer Technology Breakthrough: Evolution from Traditional Split to Deep Integration

1. Core Performance Comparison

2. Analysis of Four Innovative Technologies

(1) Amorphous Alloy Core Revolution

• Efficiency Value: No-load loss reduced to 0.15W/kg (Verified in Sungrow Desert Project).

• Structural Innovation: Elliptical cross-section design (Magnetic path shortened by 12%, weight reduced by 8%).

• Case Study: Saudi Arabia 1GW project using amorphous transformers saves 4.2GWh of electricity annually.

(2) 66kV High-Voltage Direct Connection Architecture

• Disruptive Change: Eliminates 35kV medium-voltage switchgear, reducing system cost by 22%.

• Insulation Breakthrough: Epoxy resin vacuum casting (Partial discharge <5pC).

• Representative Product: Pearl Electric 66kV Dry-Type Transformer.

(3) Enhanced Triple-Proof Design

(4) Integrated Intelligent Thermal Management

• Oil-Immersed: Corrugated tank elastic expansion (Volume change rate ≤0.5% at 60°C ΔT).

• Dry-Type: PTC thermistor + Axial fan linkage (Hotspot temperature rise control <65K).

II. Scenario-Based Transformer Technology Solutions

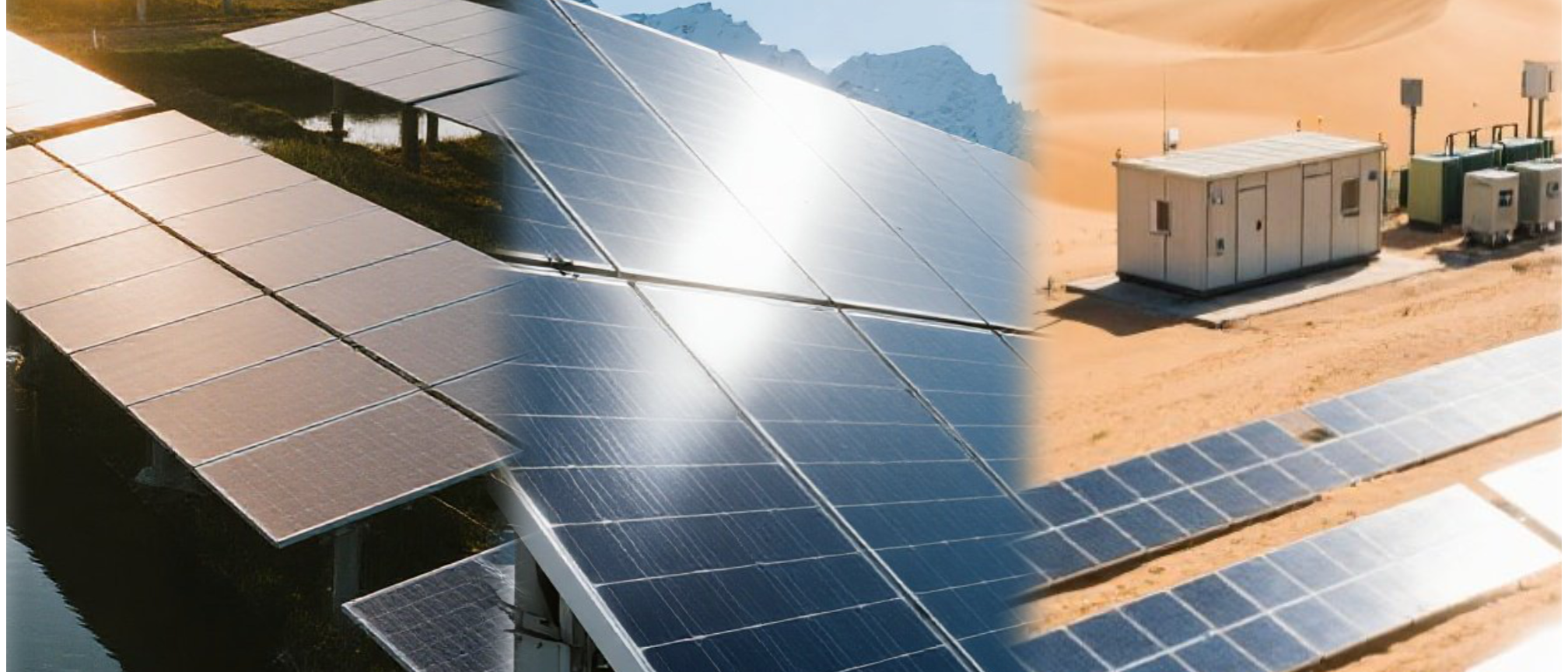

1. Desert Power Plant Scenario (e.g., Saudi Al Kahfah Project)

• Core Challenges: 50°C High Temperature + Sand/Dust Corrosion

• Transformer Solution:

• Amorphous alloy core (No-load loss 0.28W/kg)

• Stainless steel corrugated tank (C5M Anti-Corrosion Grade)

• Top-mounted sunshade heat dissipation fins (Reduce internal temperature by 15°C)

2. Coastal Mudflat Scenario

• Anti-Corrosion Technology:

• Tank triple coating: Zinc-rich primer + Epoxy micaceous iron oxide + Polyurethane topcoat

• Silicone rubber composite insulation for bushings (Hydrophobicity Class HC1)

• Test Data: Salt spray test 3000h, corrosion rate <0.5μm/year

3. Severe Cold Region Scenario

• Low-Temperature Countermeasures:

• Synthetic ester oil (Pour point -45°C, vs. -22°C for mineral oil)

• Inter-turn winding insulation thickened by 0.5mm (Resists cold embrittlement cracking)

• Operational Validation: No failure record during cold start at -40°C




III. Three Breakthrough Paths for High-Voltage Transformer Enterprises

1. Material Innovation for Cost Reduction

2. Structural Optimization for Efficiency Improvement

• Magnetic Circuit Design: Stepped stacking + Multi-step joints (No-load current ↓20%)

• Cooling Revolution: Nanofluid cooling oil (Thermal conductivity ↑60%)

• Compact Layout: 3D wound core (Footprint ↓35%)

3. Smart O&M for Value Addition

• Built-in Sensors:

• Fiber optic temperature sensing (±0.5°C accuracy)

• Online moisture content monitoring (Warning accuracy 1ppm)

• Digital Twin Model: Siemens Simaris software predicts lifespan deviation <3%

IV. Selection Decision Guide: Focusing on Core Transformer Parameters

1. Amorphous vs. Silicon Steel Transformer Economic Model

• Case Study: 10MW plant chooses amorphous transformer, price difference ¥800k, annual savings ¥320k → Payback period 2.5 years

2. Key Certification Barriers

Conclusion
The essence of competition in PV inverter-integrated machines is competition in transformer technology. Mastering the three core capabilities of amorphous alloys, 66kV direct connection, and extreme environment protection is essential to seize the high ground in the new energy race.
